USE AND MAINTENANCE MANUAL
Road Sweeper S150
Page 28 of 54
4.6.
ADJUSTING TURBINE AND RECYCLING

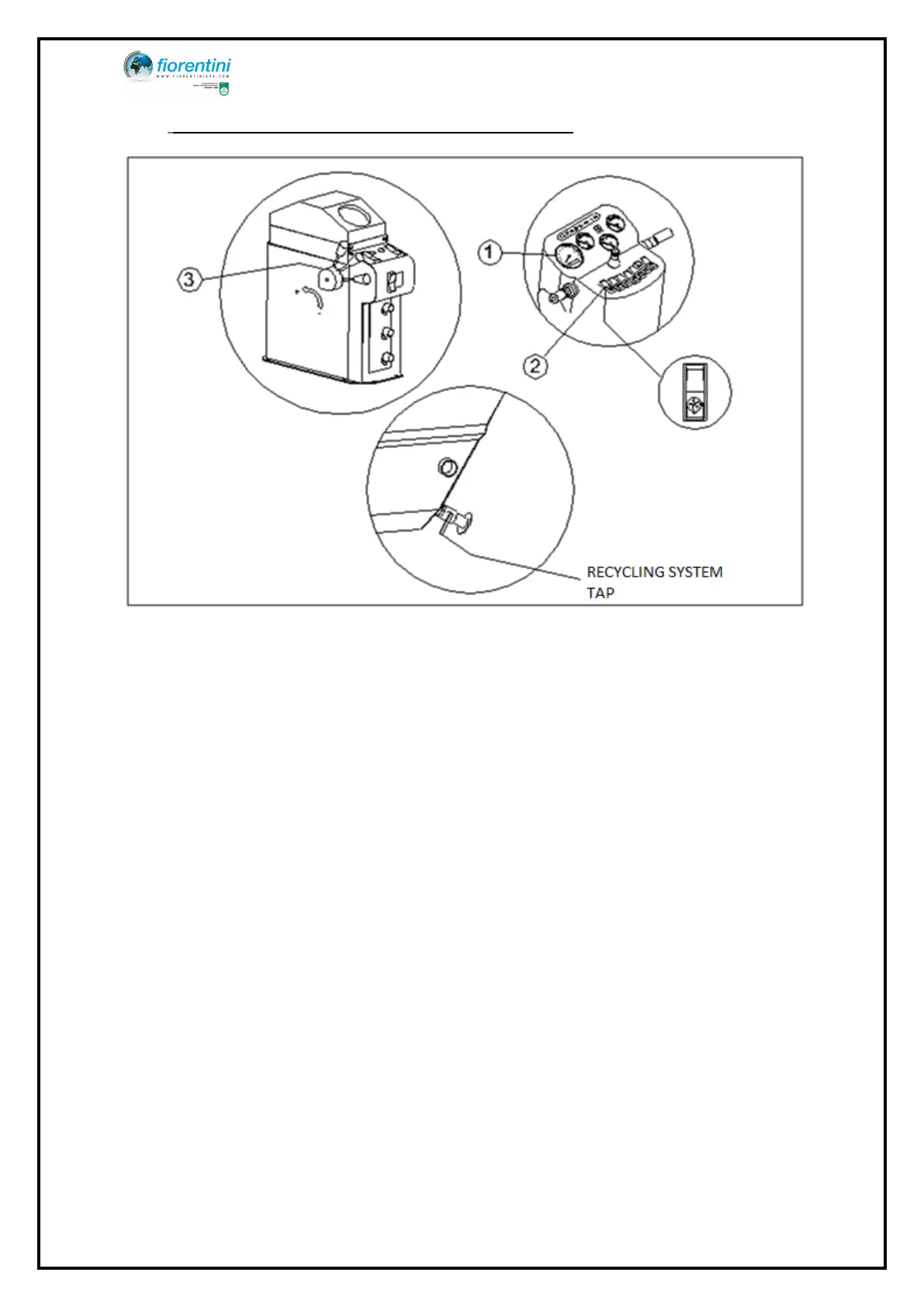

Picture 8
Climb in the cab, turn on the fan suction button POS 2 [See Picture 8] and bring the revolutions
of the turbine at 1500 rev/min via the lever located at the left of the driver POS 3 [See Picture
8].
Get out of the car and open the recycling tap at the bottom left of the container.
NOTE: The electrical operation of the recycling cycle is available, as optional, through a button
in the cab.
During the working phase it is possible to increase the rev/min of the turbine through the
mechanical adjustment lever POS 3 [See Picture 8].
The manufacturer recommends working with a number of revolutions ranging from 1800 per min
to a maximum of 2000 per min. For particularly heavy waste, and for a reduced period of time
(5 min), a maximum value of 2200 rev/min can be reached. A mechanical locking device
facilitates adjustment of the engine speed for working mode.
