USE AND MAINTENANCE MANUAL
Road Sweeper S150
Page 41 of 54
4.14.

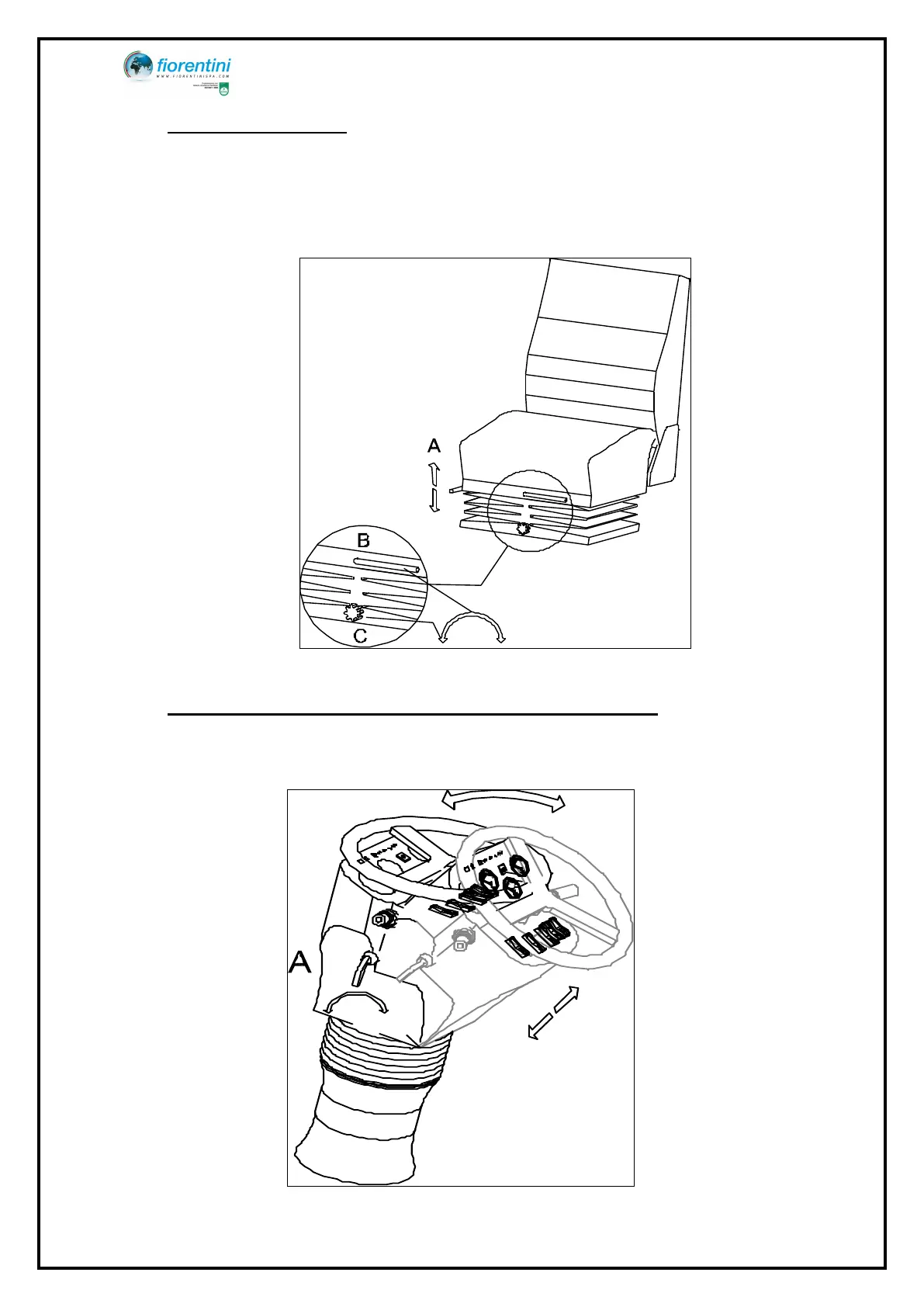

SEAT ADJUSTING
The seat is adjustable longitudinally through the lever A, in height through the knob C and the
suspension can be adjusted based on the weight of the operator through the lever B. [See
Picture 27]
Picture 27
4.15.
STEERING ADJUSTING with articulated column
The steering column is adjustable in height and frontally through the lever A. [See Picture 28].
Picture 28
