6.2. ELECTRICAL FUSES

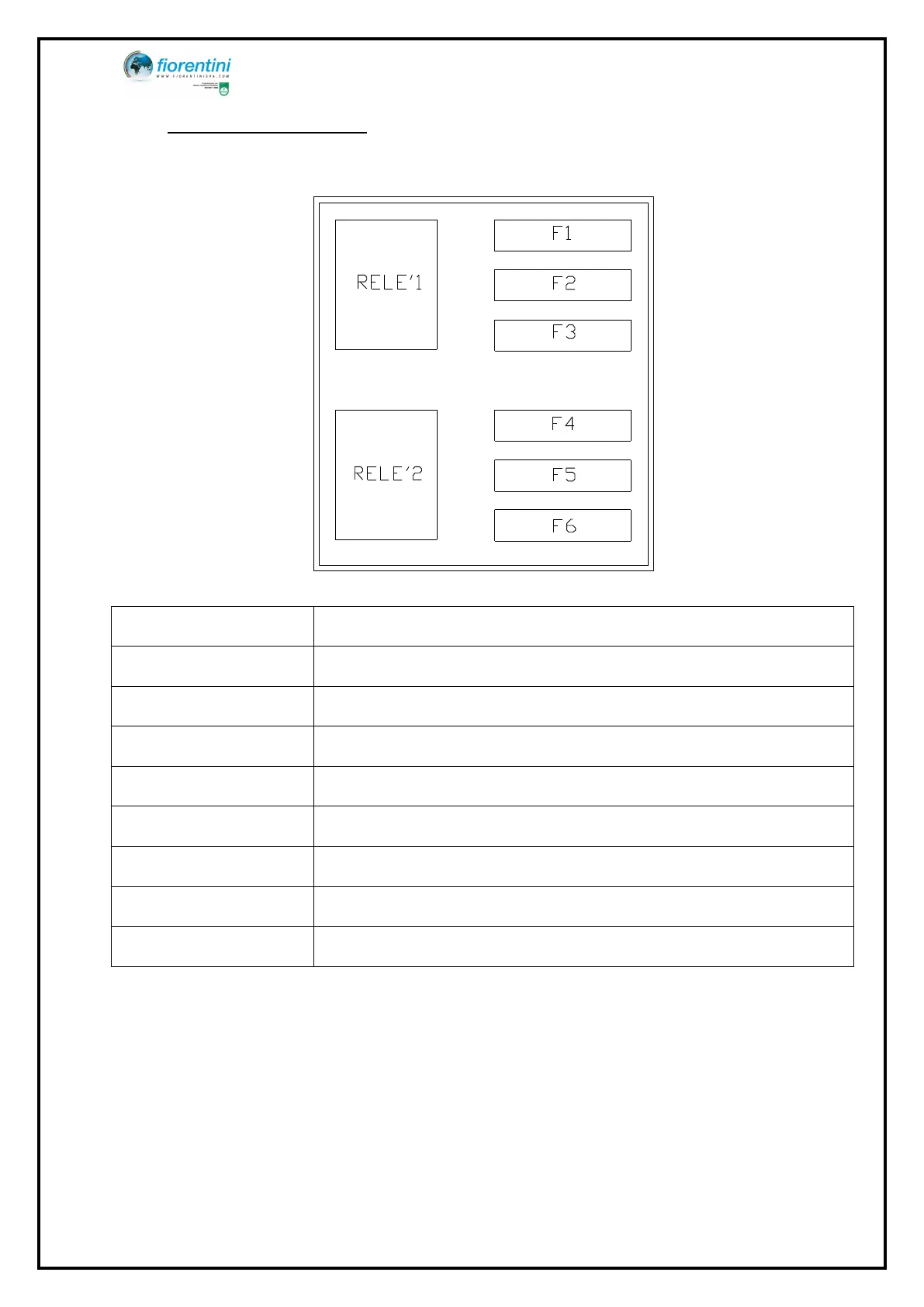

The diagram shows the fuses that are included in the box next to the battery [See Picture 30]
Picture 30
NAME
FUNCTION
RELAY 1
Start relay
RELAY 2
Glow plugs relay
F1 (40 A)
Start-up
F2 (60 A)
Glow plugs
F3 (40 A)
+30 Cab
F4 (50 A)
+30 System
F5 (40 A)
+30 Lights
F6 (60 A)
B + Alternator
