USE AND MAINTENANCE MANUAL
Road Sweeper S150
Page 32 of 54
- Rotation to the right of the third brush
- Rotate to the left of the third brush
The third brush is provided of a right/left shifting button operated by the button POS 5 [See
Picture 11]

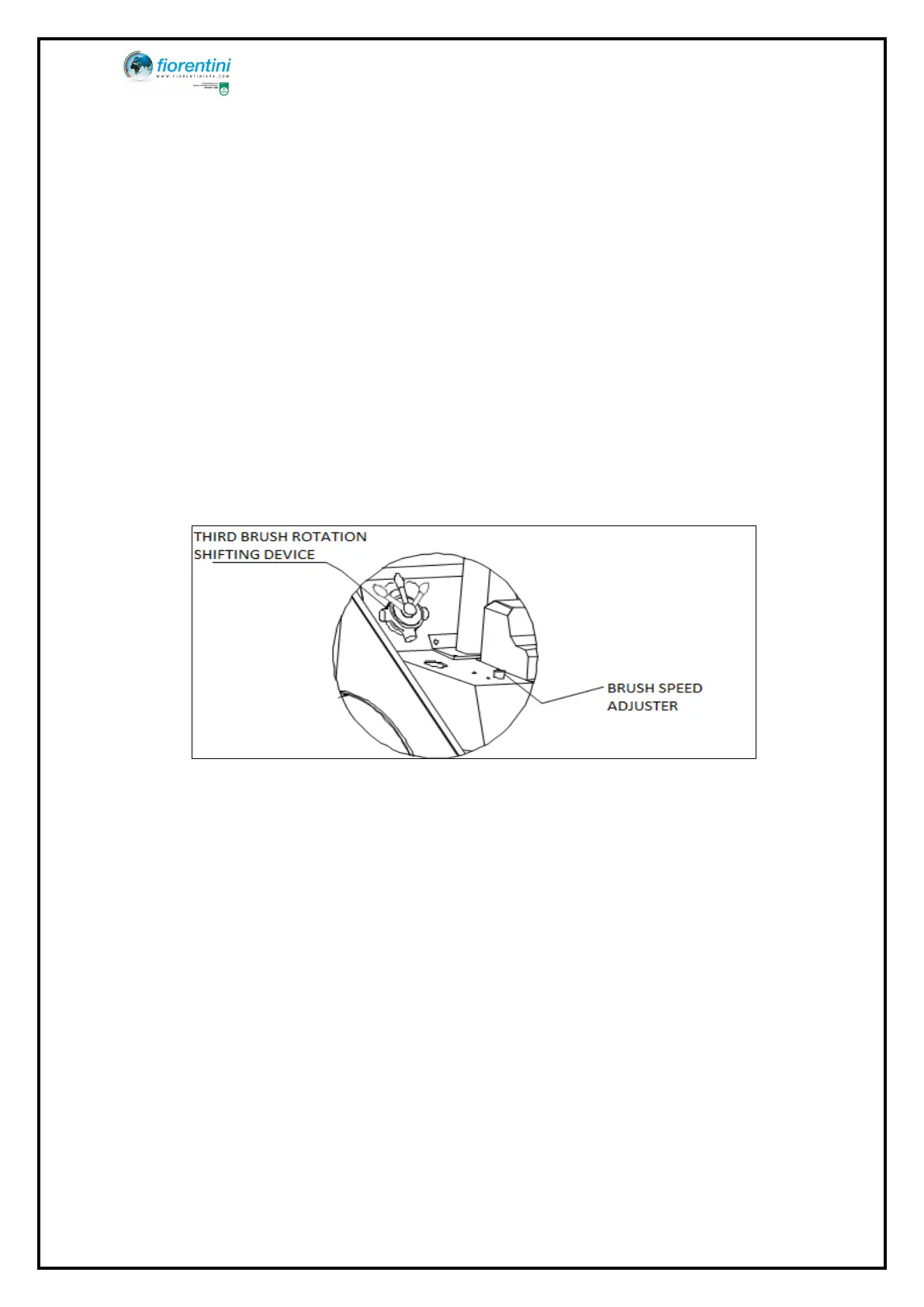

In the cabin there is a spacing device [See Picture 13] which adjusts the direction of rotation of
the brush for work at the two sides of the vehicle:
-Placing the lever to the left the brush rotates counter-clockwise. (Working area to the right)
-Placing the lever to the right the brush rotates clockwise. (Working area to the left)
Picture 13
