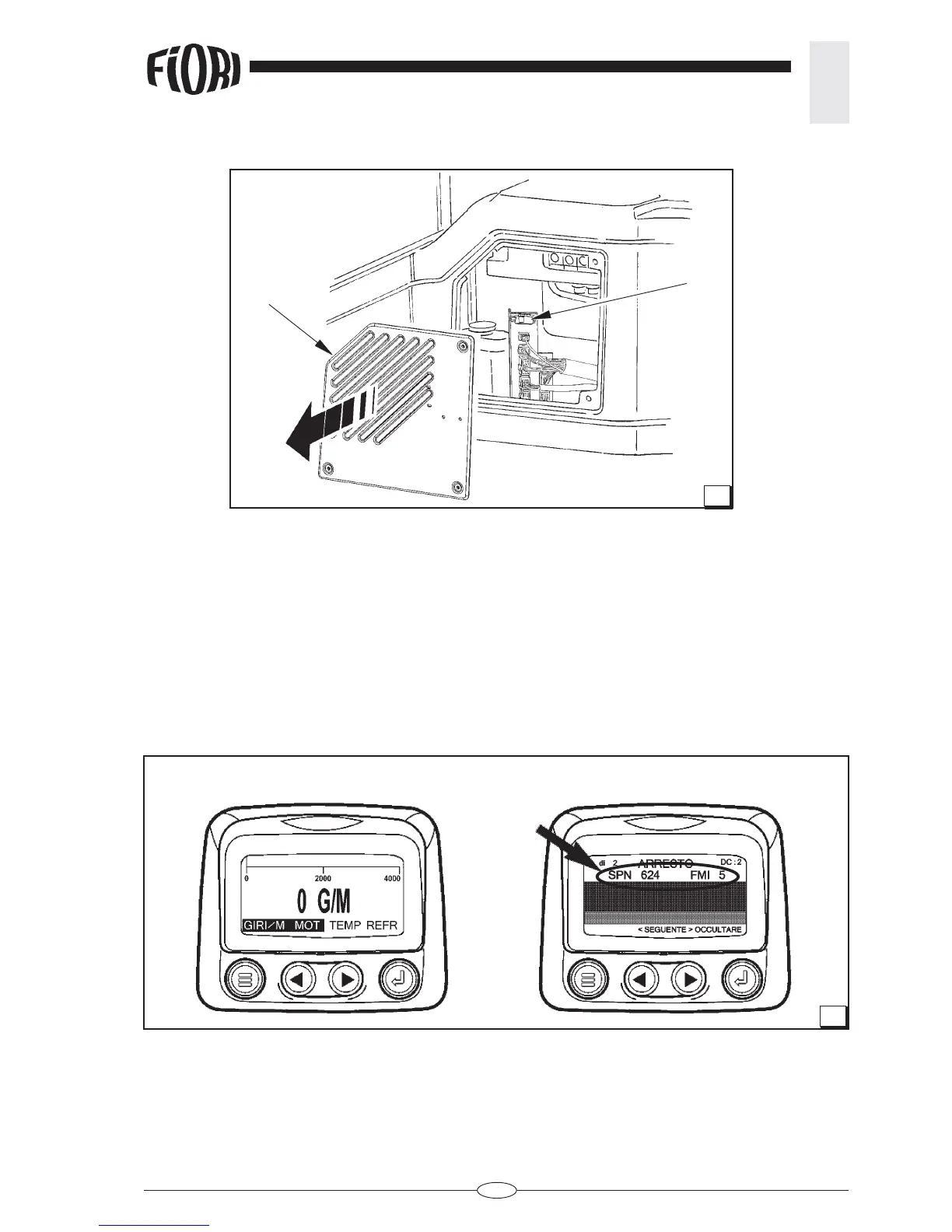

5.11.12 ENGINE DIAGNOSTICS (fi g. 29)
29
A
B
5.11.13 DISPLAYING ENGINE FAULT CODES ON THE PARAMETER CONTROL MONITOR (fi g. 30)
START SCREEN SCREEN WITH FAULT CODE
30
CAUTION: Engine diagnostics must be run by an authorised FIORI technician.
- Move the vehicle onto fl at ground, engage the parking brake.
- Remove the LH ABS cover A on the dashboard panel, and insert the diagnostics connector into its socket B.
Now run the engine diagnostics procedure.
When the parameter control monitor receives a fault code from the engine, it displays a message with the fault
code for the cause of the engine fault itself.
For the meanings of the fault codes, refer to the STANDARD LIST OF ENGINE DIAGNOSTICS MESSAGES
in the paragraph TECHNICAL ENCLOSURES.
