OPERATION AND USE
id.:
DB 260 REV. 00 01/07/2015
It draws current from the 12V battery by means of a bayonet coupling.
Snap switch to turn on the front wiper.
Snap switch to turn on the rotating beacon on the cabin roof.
4.2.1.l - L - Power socket (fi g. 2).
4.2.1.i - I - Windscreen washer switch (fi g. 2).
4.2.1.o - O - Rotating light switch (fi g. 2).
4.2.1.g - G - (Mechanical) gearshift control lever (fi g. 2).
The gear lever allows you to select two basic speeds:
Position I - Low or working speed
Position O - NEUTRAL
Position II - High or road transfer speed
CAUTION: Select the speed when the vehicle is stationary and stable.
Before driving uphill or downhill on steep slopes, always select the lowest gear with the
vehicle stationary and stable.
4.2.1.h - H - Pivoting driving post locking lever (fi g. 2).
The lever allows the operator to lock the driving post in the transfer A and loading B positions.
If the driving post is not securely locked in the positions A or B, dedicated microswitches will not allow vehicle
movement.

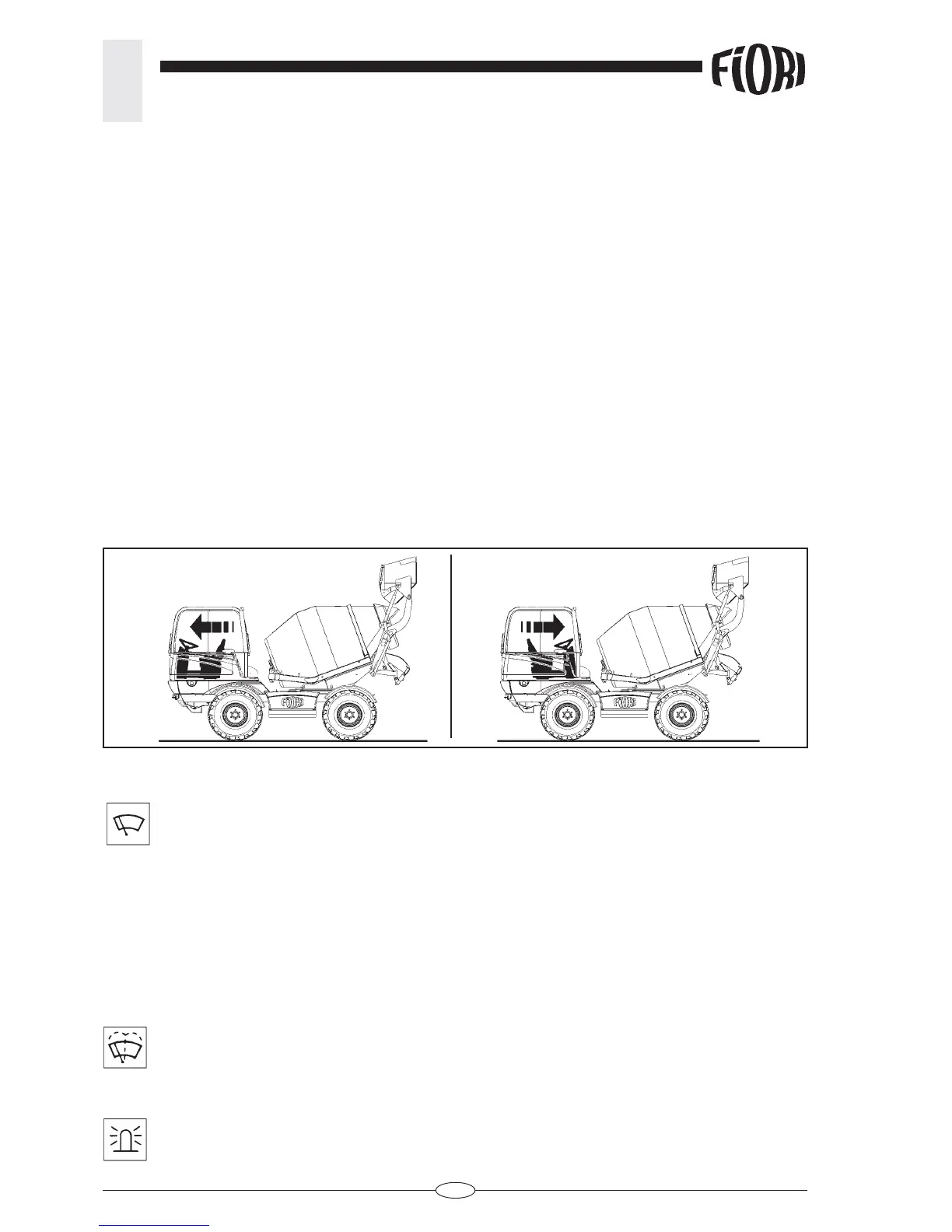

CAUTION: The driving post must be turned in the direction as shown in Fig. A for road transfers and
in Fig. B for the drum loading phases. Turn the driving post with the vehicle stationary and
stable and the gear selector in neutral position.
This operation may be carried out while you are seated on the driver’s seat. Check that it is
locked into place at the end of the operation.
A
B
Turns on the fan for defrosting the windows or heating the closed cabin.
4.2.1.m - M - Heating/defrosting fan adjuster (fi g.
2).
4.2.1 n - N - Windscreen water switch (fi g. 2).
Allows you to pump the windscreen washer fl uid.
