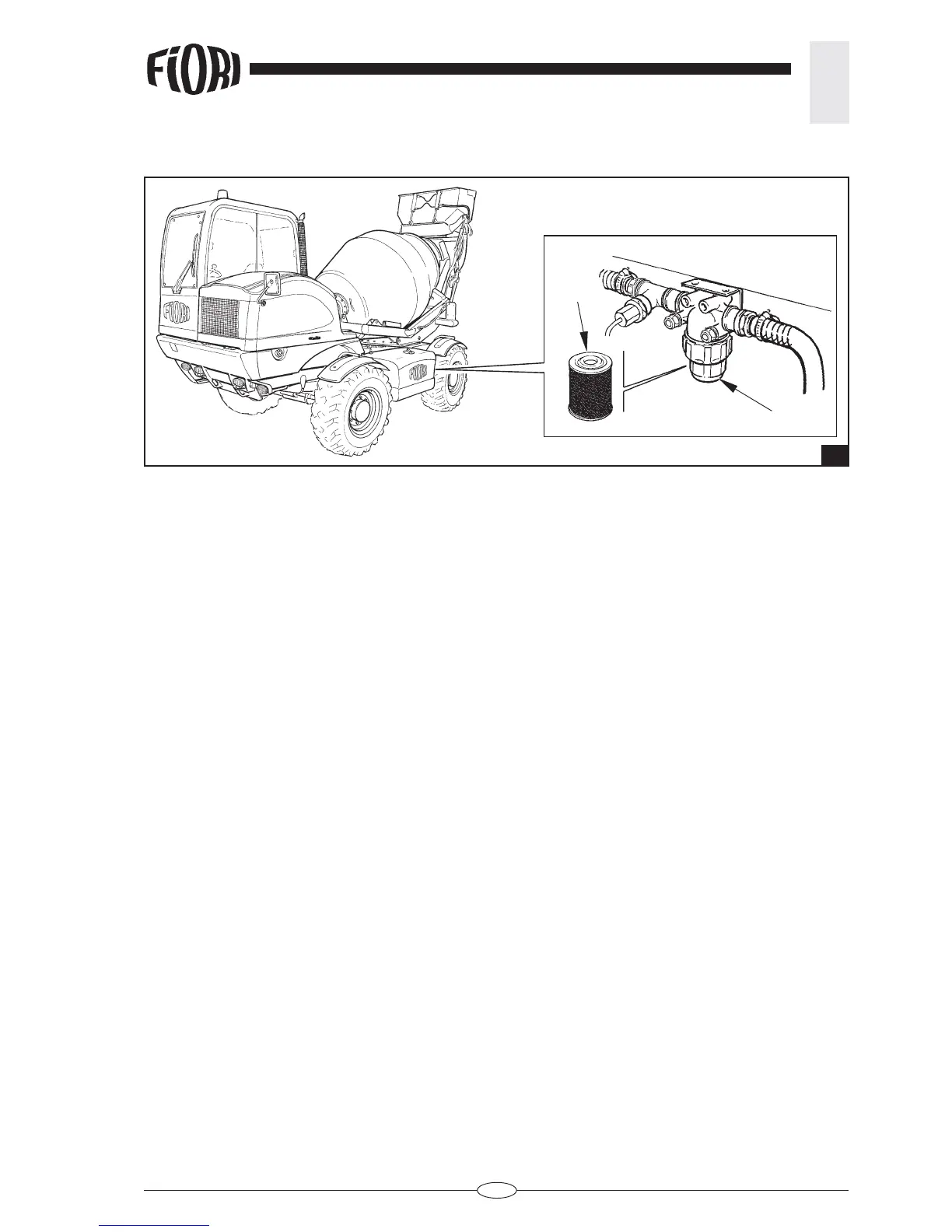

6.2.7. CLEANING OR REPLACING THE FILTER CARTRIDGE (fi g. 4)
- Move the vehicle onto fl at ground, engage the parking brake, turn off the engine and remove the ignition
key.
CAUTION: Do not pollute the environment. Keep the fi lters in special containers and send them to
companies specialised in storage and disposal of polluting and hazardous waste.
- The fi lter is positioned between the water tank and the rear wheel on the left-hand side of the machine.
- Remove the cover A.
- Remove the cartridge B and replace it with a new one if necessary.
- Remove the cartridge B and clean it with a blast of dry compressed air from the inside to the outside.
- After cleaning the cartridge, check that there is no internal damage using a torch to illuminate the inside.
- If light fi lters through to the outside the cartridge must be replaced.
- Also replace the cartridge when the rubber seal is damaged.
- Before refi tting the cartridge clean the inside of the fi lter body and the separator.
- Refi t the cartridge and make sure that it is properly in place.
- Close the cover A.
- It is essential to keep a stock of spare cartridges B, which can be ordered from the AUTHORISED FIORI
SERVICE CENTRES or directly from FIORI SPARE PARTS DEPARTMENT.
CAUTION: Before proceeding, always read the safety regulations for the operations to be carried out
as set out in Chapter 3.
4
A
B
