OPERATION AND USE
id.:
DB 260 REV. 00 01/07/2015

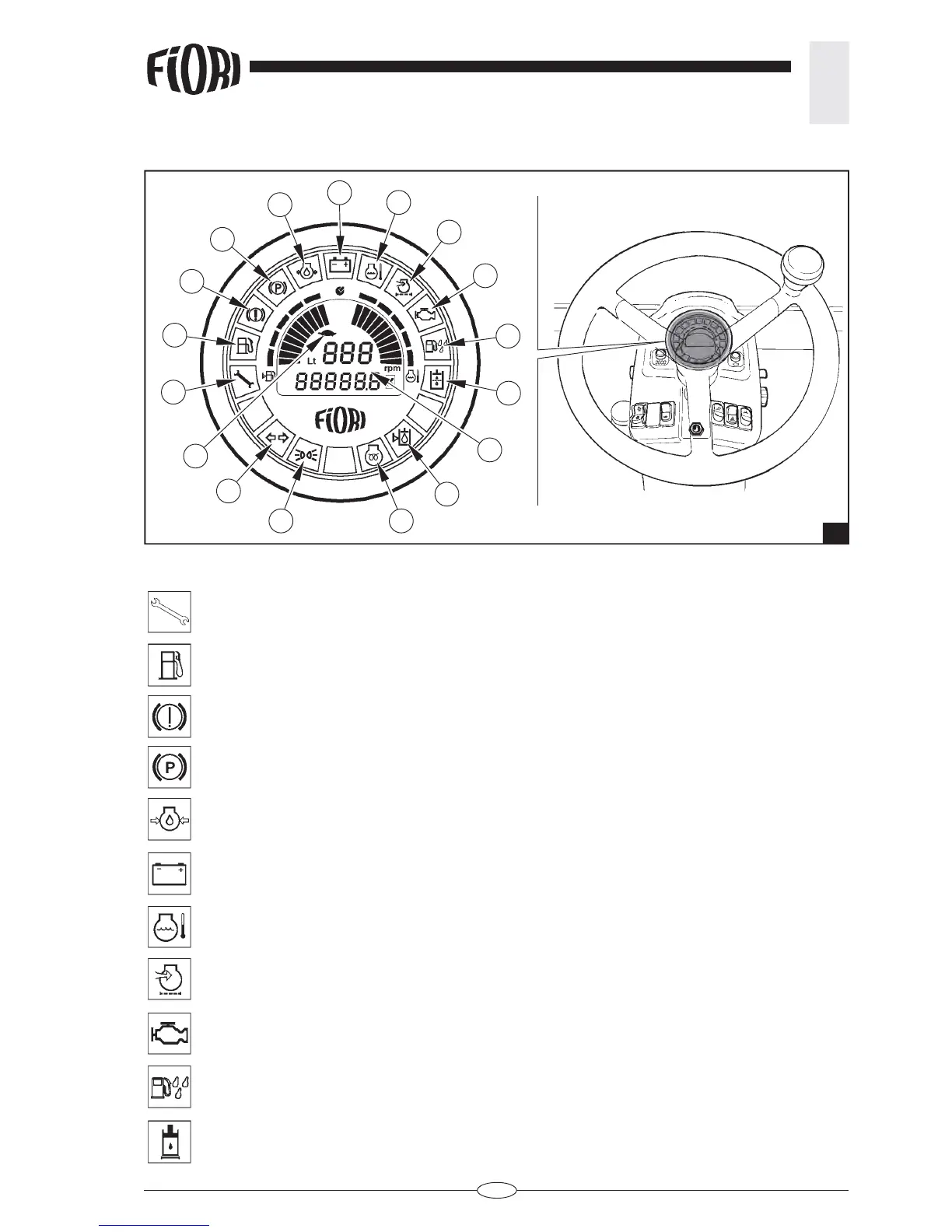

4.2.2 DRIVING POST INSTRUMENT PANEL
1 - Yellow warning light: indicates when the next service is due.
2 - Yellow warning light: indicates that the fuel tank is in reserve.
3 - Red warning light: indicates a fault in the parking brake circuit.
4 - Red warning light: indicates that the parking brake is engaged.
5 - Red warning light: indicates that the engine oil pressure is low.
6 - Red warning light: indicates that the generator battery charge is low.
7 - Red warning light: indicates that the engine coolant is overheated.
8 - Red warning light: indicates that the engine air fi lter is clogged.
9 - Yellow warning light: indicates an engine fault, the amber led on the monitor also lights up.
10 - Yellow warning light: indicates that there is water in the fuel sediment bowl.
11 - Red warning light: indicates that the hydraulic oil fi lter is clogged.
4.2.2.a Electronic control panel (fi g. 4)
4
1
2
3
4
5
6
7
8
9
10
11
12
1314
16
15
17
