Fire Com 3010R Series - PP-20 Wiring; CA Cable Wiring

WIRING DIAGRAMS & SCHEMATICS
37.

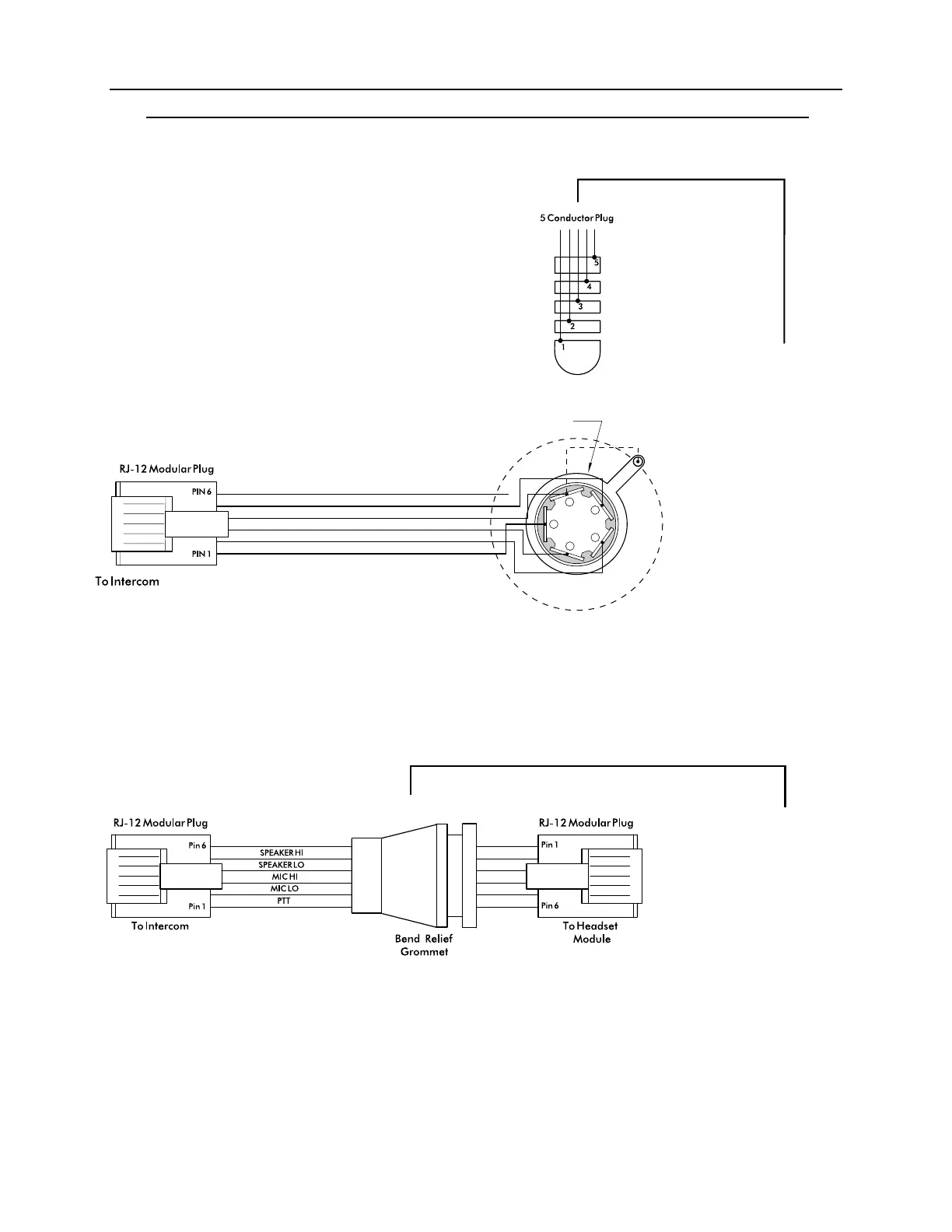

FIGURE 34:
PP-20 Wiring
FIGURE 35:
CA Cable Wiring
-
1
Not Connected
5 Conductor Jack
w/GND Ring*
SPEAKER HIGH
SPEAKER LO
MIC HIGH
MIC LOW
PTT
2
3
4
5
