FireBird OIL FIRED BOILERS

14

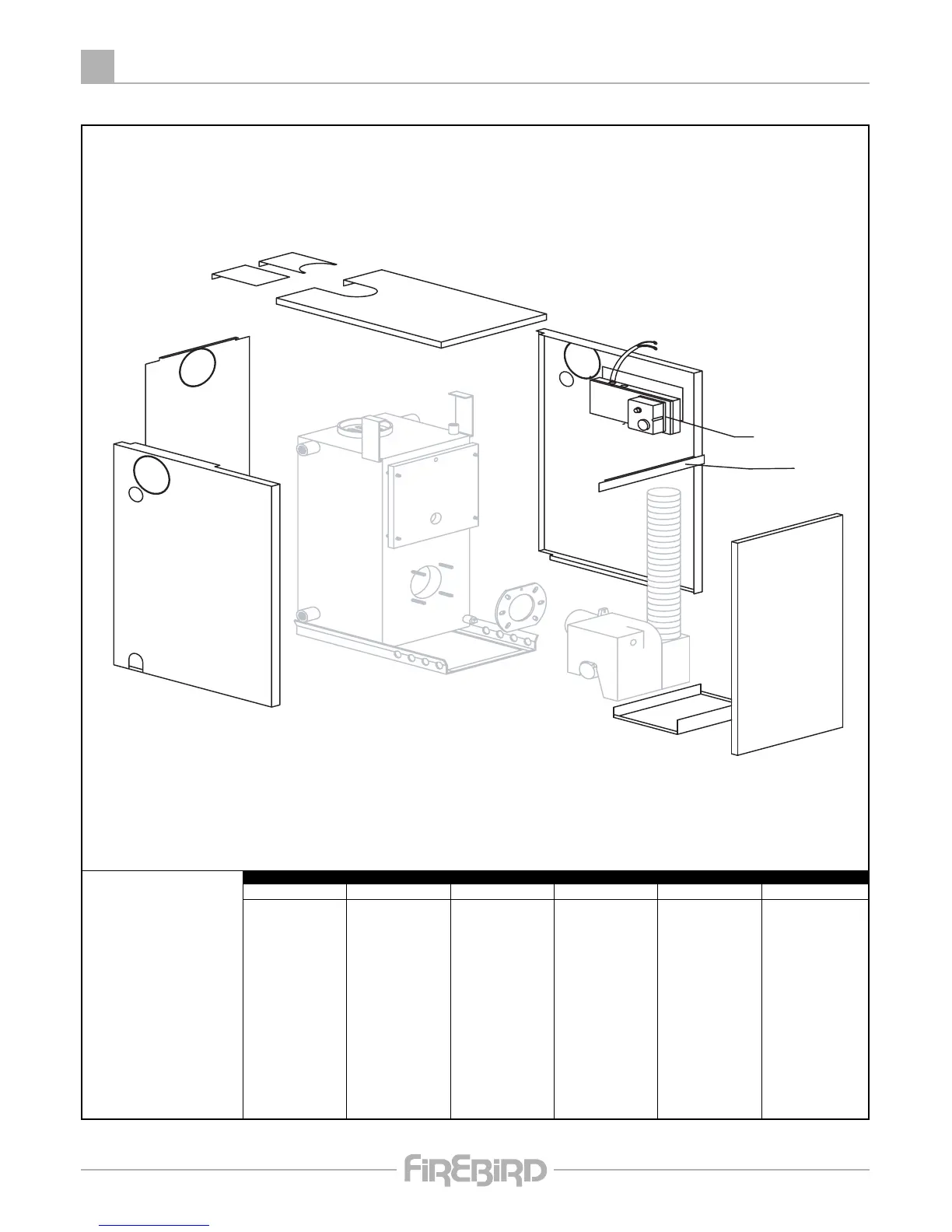

SPARE PARTS - Kitchen ‘S’
1.
6.
4.
3.
7.
2.
5.
8.
4a
4b
35
KITCHEN ‘S’ MODELS & PART NUMBERS
ITEM COMPONENT Qty 50-70-90 90-120 120-150 150-200 200-250 250-310
1 Side Panel L H Side 1
2 Side Panel R H Side 1
3 Front Panel 1
4 Top Panel 1
4a Flue Trim Plate 1
4b Conventional Trim Plate 1
5 Light Strip 1
6 Back Panel 1
7 Drip Tray 1
8 Dual Stat 1
Boiler 1
FS90- LH-L-01
FS90-RH-L-02
FS90-FP-L-05
FS90-TP-L-03
FS90-FTP-L-03
FS90-GP-L-03
FS90-LS-L-46
FS90-BP-L-04
FS90-L-31
IM TLSC 542764
see page 34
FS125- LH-L-01
FS125-RH-L-02
FS125-FP-L-05
FS125-TP-L-03
FS125-FTP-L-03
FS125-CTGP-L-03
FS125-LS-L-46
FS125-BP-L-04
FS125-L-31
IM TLSC 542764
see page 34
FS150- LH-L-01
FS150-RH-L-02
FS150-FP-L-05
FS150-TP-L-03
FS150-FTP-L-03
FS150-CTGP-L-03
FS150-LS-L-46
FS150-BP-L-04
FS150-L-31
IM TLSC 542764
see page 34
FS150- LH-L-01
FS150-RH-L-02
FS150-FP-L-05
FS150-TP-L-03
FS150-FTP-L-03
FS150-CTGP-L-03
FS150-LS-L-46
FS150-BP-L-04
FS150-L-31
IM TLSC 542764
see page 34
FS200- LH-L-01
FS200-RH-L-02
FS200-FP-L-05
FS200-TP-L-03
FS200-FTP-L-03
FS200-CTGP-L-03
FS200-LS-L-46
FS200-BP-L-04
FS200-L-31
IM TLSC 542764
see page 34
FS310- LH-L-01
FS310-RH-L-02
FS310-FP-L-05
FS310-TP-L-03
FS310-FTP-L-03
FS310-CTGP-L-03
FS310-LS-L-46
FS310-BP-L-04
FS310-L-31
IM TLSC 542764
see page 34
FIREBIRD ‘S’ RANGE
