FireBird OIL FIRED BOILERS User Manual

14

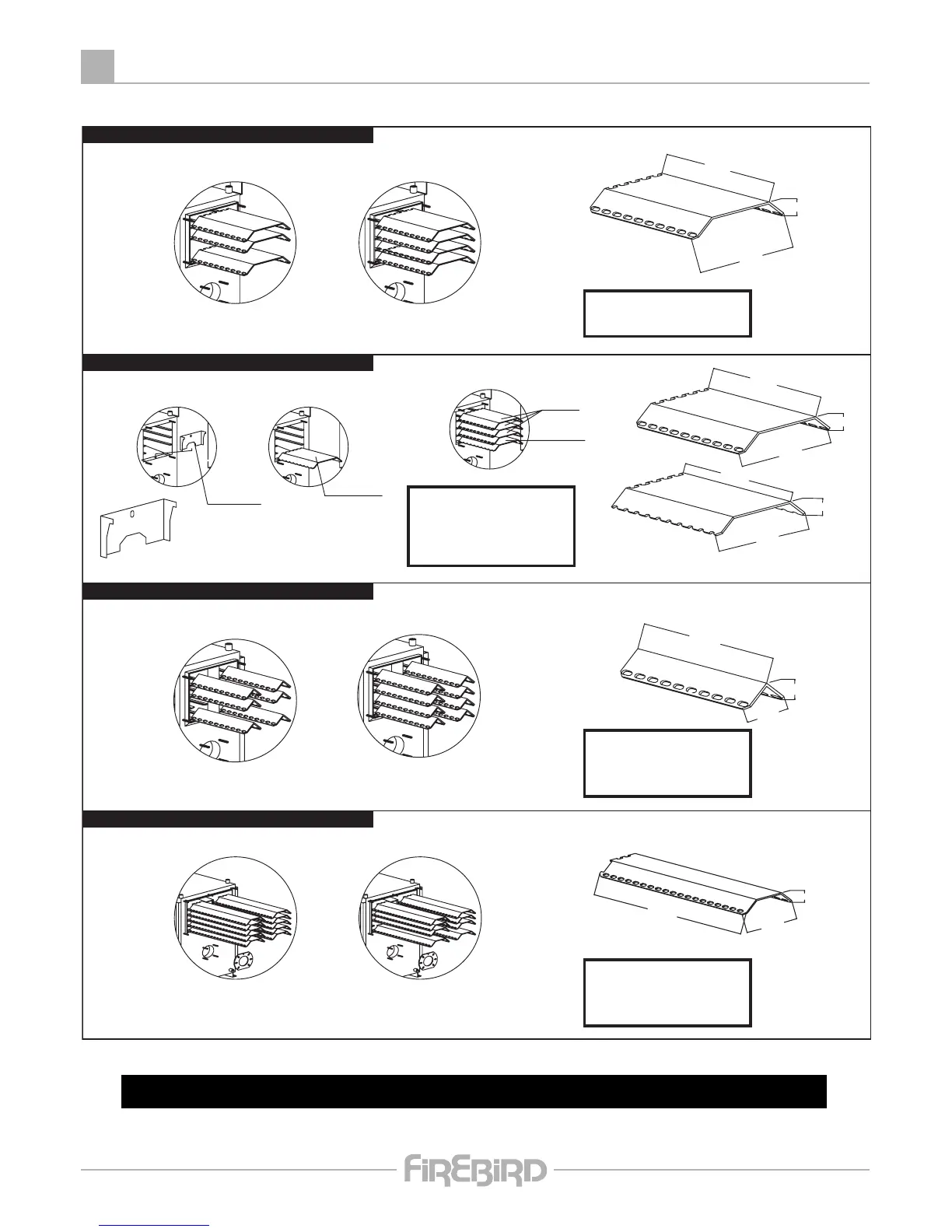

SPARE PARTS - Baffles
41
FIREBIRD ‘S’ RANGE
• • • • PATENTED BAFFLE DESIGN • • • •
Drop In Baffle
Baffles for 200/250 and 250/310 Boiler Models
Baffles for 120/150 and 150/200 Boiler Models
Baffles for 90/120 Boiler Models
Baffles for 50/70 and 70/90 Boiler Models
Remove Second Row Of Baffles
To Lower Setup
Remove Second Row Of Baffles
To Lower Setup
R 50-70 R 70-90
(8b).
Drop In Baffle
Base Baffle
(8).
(8a).
Base Baffle
Baffle 1
Length
Width
Height
Baffle 1
Length
Width
Height
Base Baffle
Length
Width
Height
Length
Width
Height
Length
Width
Height
BAFFLE PART NO:
120-150: 210082
150-200: 210090
BAFFLE PART NO:
200-250: 210121
250-310: 210138
BAFFLE PART NO:
R 50-70-90: 210015
BAFFLE PART NO:
Baffle 1: 210060
Base Baffle: 210050
Drop In Baffle: 210049
