FireBird OIL FIRED BOILERS

14

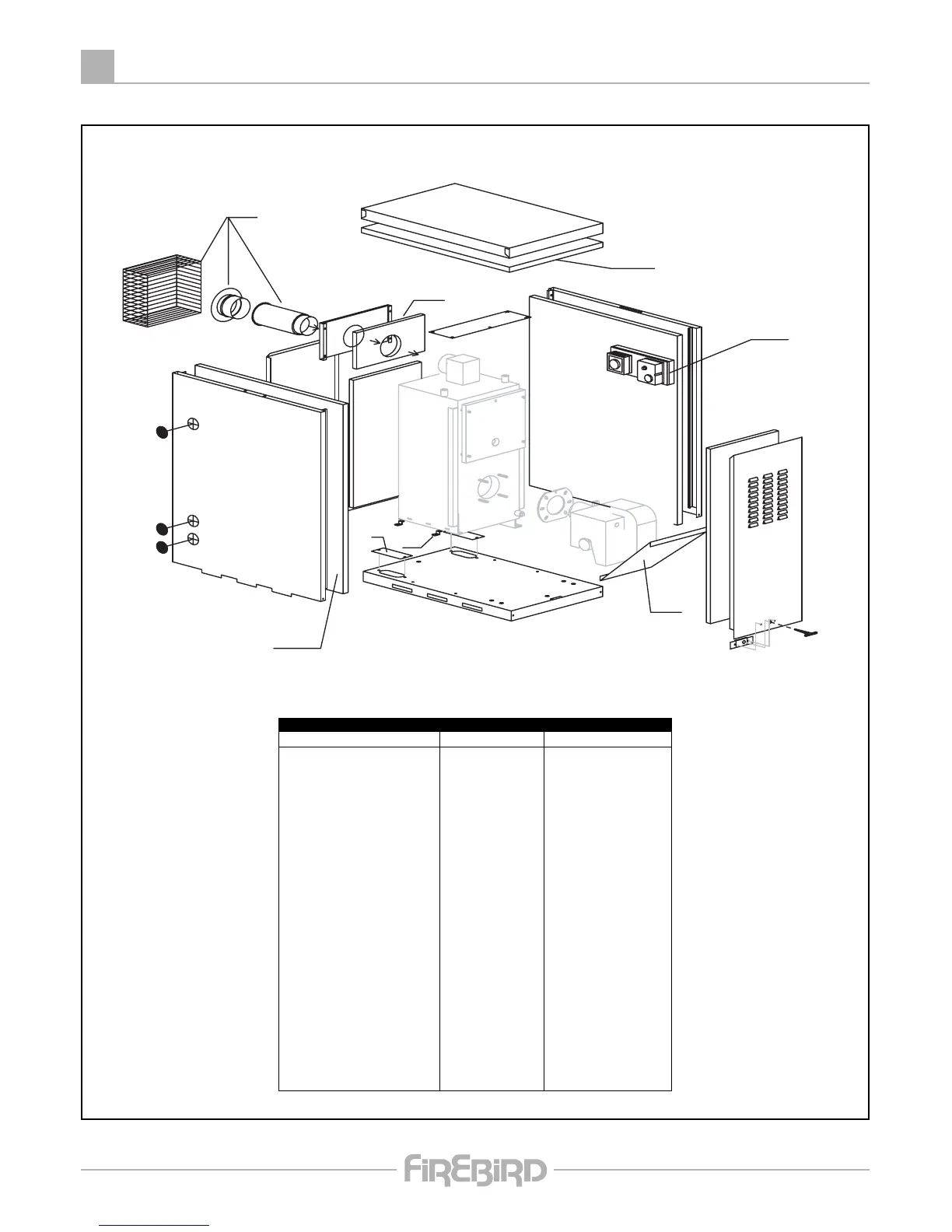

SPARE PARTS - Slimline Heat Pac
17
9
16b
2
1
13
8
7
6
3
4
5
10
14
15
16d
16a
16d
16c
16e
19
11
11
11
38
FIREBIRD ‘S’ RANGE
SLIMLINE HEAT PAC MODELS & PART NUMBERS
ITEM COMPONENT Qty 50-70-90 90-120
1 Base 1
2 Front 1
3 Back 1
4 Top 1
5 Left Side 1
6 Right Side 1
7 Back Flue Outlet 1
8 Support Plate 1
9 Base Blanks 4
10 Boiler Fixing Clip 2
11 45mm Body Plug 6
13 Control Box 1
14 Lock 1
15 Key 1
16 Panel Insulation Kit 1
16a Front Insulation 1
16b Back Insulation 1
16c Top Insulation 1
16d Side Insulation 2
16e Flue Outlet Insulation 1
17 Flue Kit 1
19 Splash Gauard
Boiler 1
HPSL70-R-101
HPSL70-L-103
HPSL70-L-104
HPSL70-L-105
HPSL70-L-102
HPSL70-L-102
HPSL70-L-106
HPSL70-L-107
HPSL70-L-3381473
HPSL70-L-3381474
HPSL70-L-3382875
HPSL70-L-3382877
HPSL70-L-3382878
HPSL70-L-3382879
HPSL70-L-3382980
HPSL70-L-3382980-2
HPSL70-L-3382980-3
HPSL70-L-3382980-4
HPSL70-L-2372980-5
HPSL70-L-2372988-7
HPSL70-L-2371487
see page 34
HPSL120-101
HPSL120-103
HPSL120-104
HPSL120-105
HPSL120-102
HPSL120-102
HPSL120-106
HPSL120-107
HPSL120-3381473
HPSL120-3381474
HPSL120-3382875
HPSL120-3382877
HPSL120-3382878
HPSL120-3382879
HPSL120-3382980
HPSL120-3382980-2
HPSL120-3382980-3
HPSL120-3382980-4
HPSL120-2382980-5
HPSL120-2382988-7
HPSL120-2381487
see page 34
