FireClass Prescient III - 10 Pcb Layout Diagram

EQUIPMENT: FIRECLASS Prescient III WRITTEN BY: RKP
PUBLICATION: OMFCPRES3IN CHECKED BY: AP
ISSUE No. & DATE: 0 02/02/12
PAGE 35 of 43

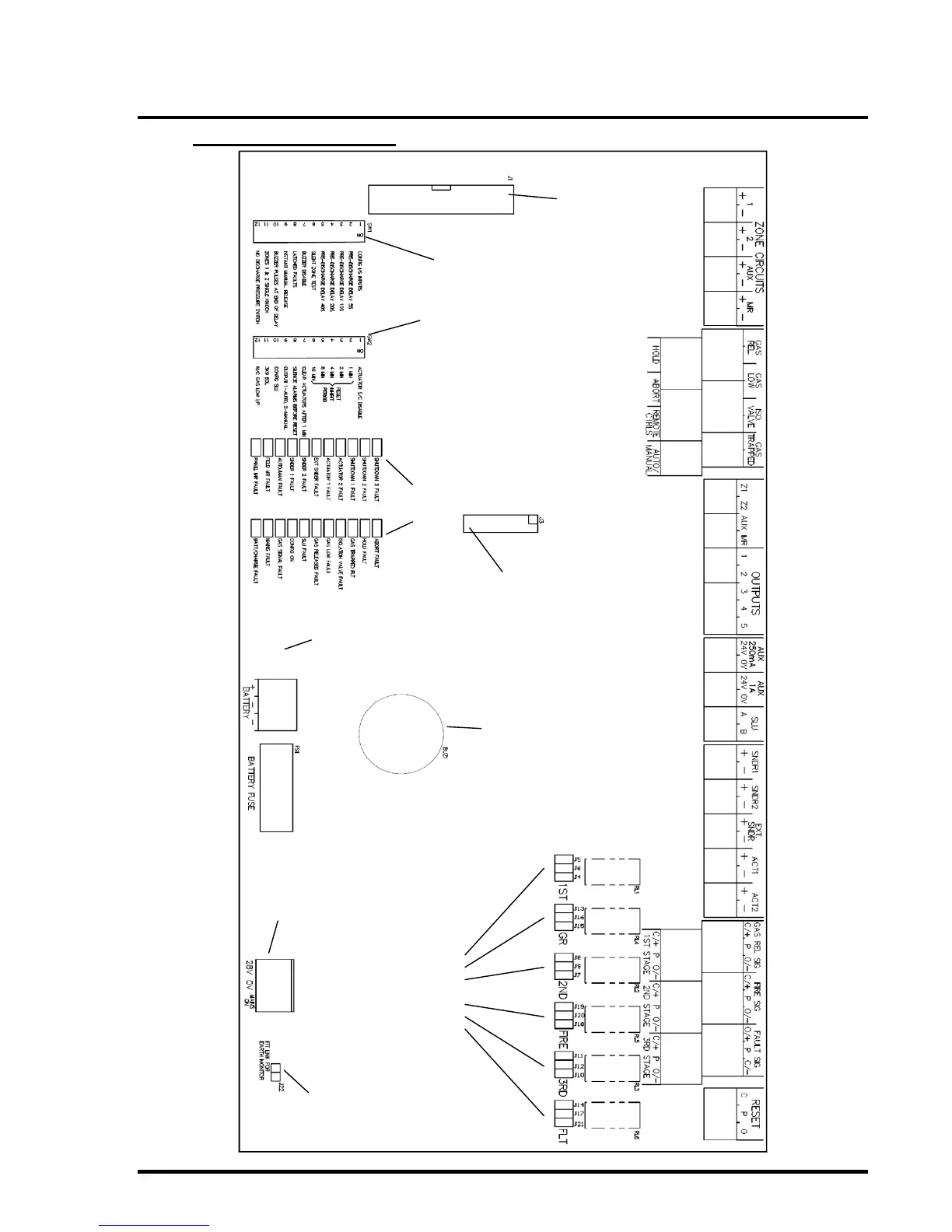

10. PCB Layout Diagram
Display Ribbon
Connector
Microcontroller
Programming Header.
Manufacturer‟s Use Only.
Internal Buzzer
Configuration
Switch 1
Configuration
Switch 2
Fault Status
LEDs
24V Battery
Connector
DC Power Supply
Connector
Remove Link to
Disable Earth Fault
Monitoring
Relay Output
Configuration Links.
Remove links for Volt-
Free operation
