CM6200 Install Guide
Starter System
www.firstechonline.com | www.compustar.com
IMPORTANT: For anti-grind and starter-kill applications, the yellow wire goes to the starter side of
the vehicle’s starter wire and the yellow/black goes to the key side.
Pin 3 Green – Ignition 12V positive (+) output and input. This wire must be connected to the vehicles
ignition for remote start and valet/programming. The proper wire will test 0V with the key in the off
position, 12V(+) while the key is in the on position and 12V (+) during crank. This pin also has a
thin green wire that is prewired to the starter kill relay. If you are not installing anti grind/starter kill,
you do not need to connect the thin 24 gauge green wire.
Pin 4 Black - Ground negative (-) input. This wire must be connected to the vehicle’s ground.
Pin 5 Red - Constant 12V positive (+) power input. These two wires must be connected. The proper vehicle
wire will test (+) 12V at all times while the key is in the off position, the on position and during crank.

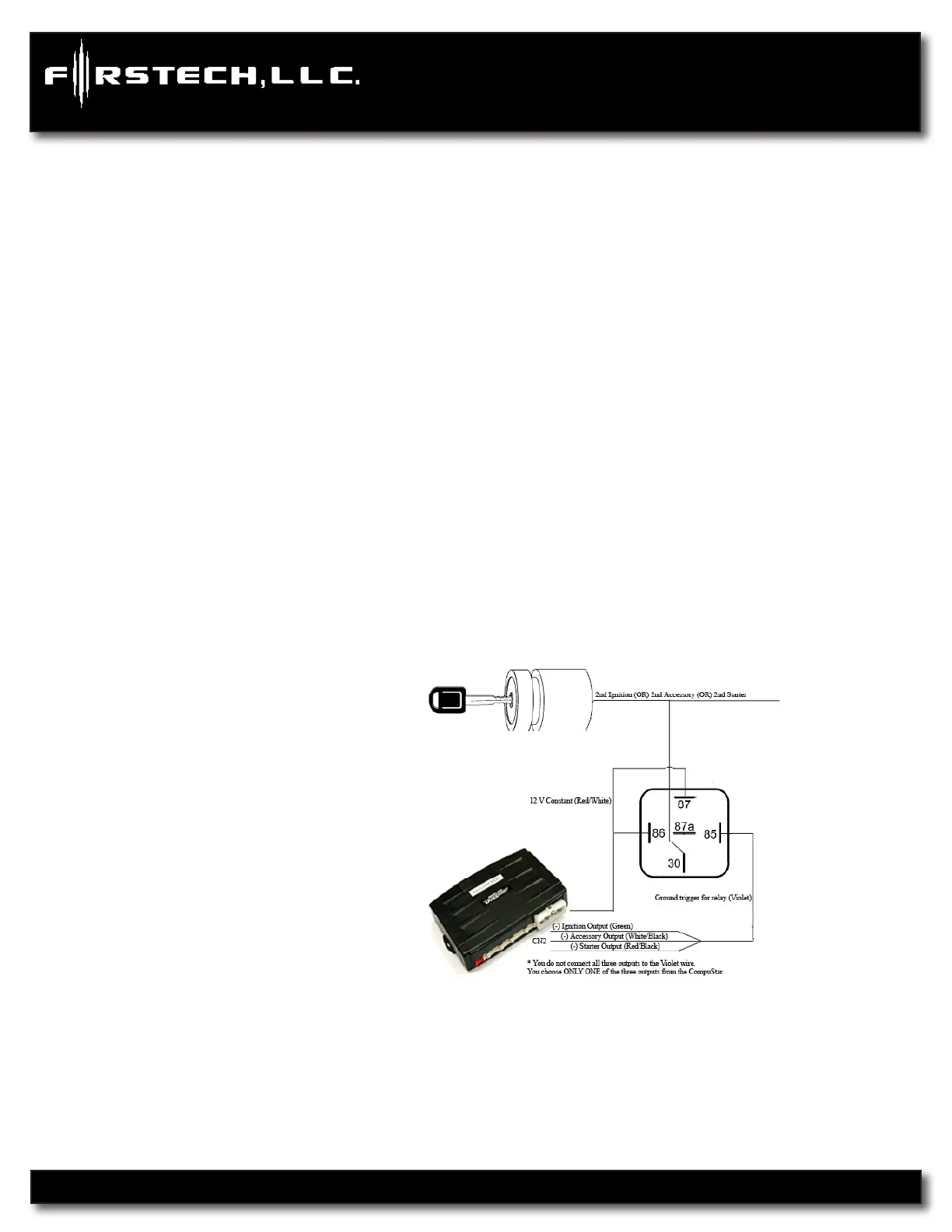

Each wire has a 30 amp fuse on it. An optional relay with a 14 gauge red wire and 30 amp fuse is
for secondary ignition/accessory/starter wires. The short violet wire on Pin 85 is the trigger input wire
that determines the (+) 12V output type of the long blue wire on Pin 30. For example, connecting
the negative (-) Ignition output from Connector 3, to the short violet wire coming off of the relay, will
provide an additional (+) 12V Ignition output from the long blue wire.
Pin 6 Green/White – This is a dual-purpose wire that features selectable functionality thru the parking
light/trunk output jumper on the control module. It is either a positive (+) parking light output or
positive (+) trunk output. This wire
carries a 10 amp fuse.
Default - Parking light positive (+)
output. The proper vehicle wire will
test (+) 12V when the parking light
switch is in the on position.
Optional – Trunk release positive (+)
output. The proper vehicle wire will
test (+) 12V when the trunk release is
triggered.
Copyright 2012 Firstech, LLC.
Page 14
