FISCHER 18092 - Parts List for Roof Lift Bike Rack

24

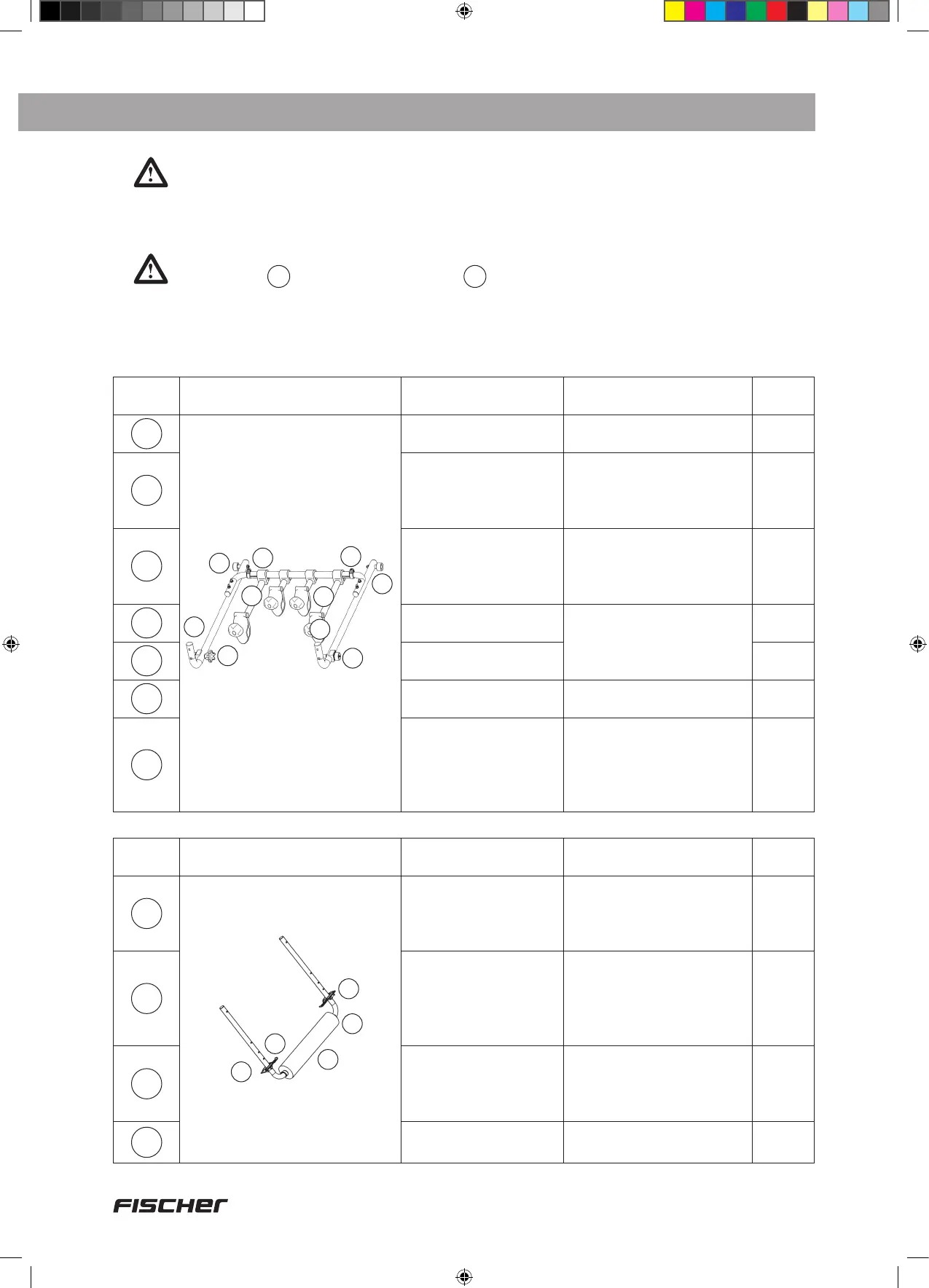

4. Parts list for roof lift bike rack
Caution: Make sure no children are in the vicinity when working with these individual
parts. The bike rack contains small parts that pose a choking hazard!
Base unit
1
+ bike carrying bracket
2
= carrying unit
Parts No. Image Label Function / Use Quantity
1
Base unit
1
1a
Bike bracket arm,
290 mm, 1x lockable
Fastening outer wheel
(preassembled on base
unit)
2
1b
Bike bracket arm,
100 mm
Fastening inner wheel
(preassembled on base
unit)
2
1c
Front guide roller
Base unit guide in guide
rails (preassembled)
2
1d
Back guide roller
2
1e
Clamps Width adjustment
2
1f
Hand wheel
Base unit safety lock in
guide rails (preassembled
on base unit)
2
Parts No. Image Label Function / Use Quantity
2
Bike carrying
bracket
Bike uptake (assembly
on base unit)
1
2a
Safety clamp
Additional safety lock
for carrying unit (pre-
assembled on base unit)
with „L“ and „R“ markings
2
2b
Foam prole
Padding on driver‘s side
(preassembled to bike
carrying bracket)
1
2c
Clamps Width adjustment
2
1d
1e
1a
1b
1c
1f
1e
1d
1c
1f
2a
2c
2b
2a
2c
