29

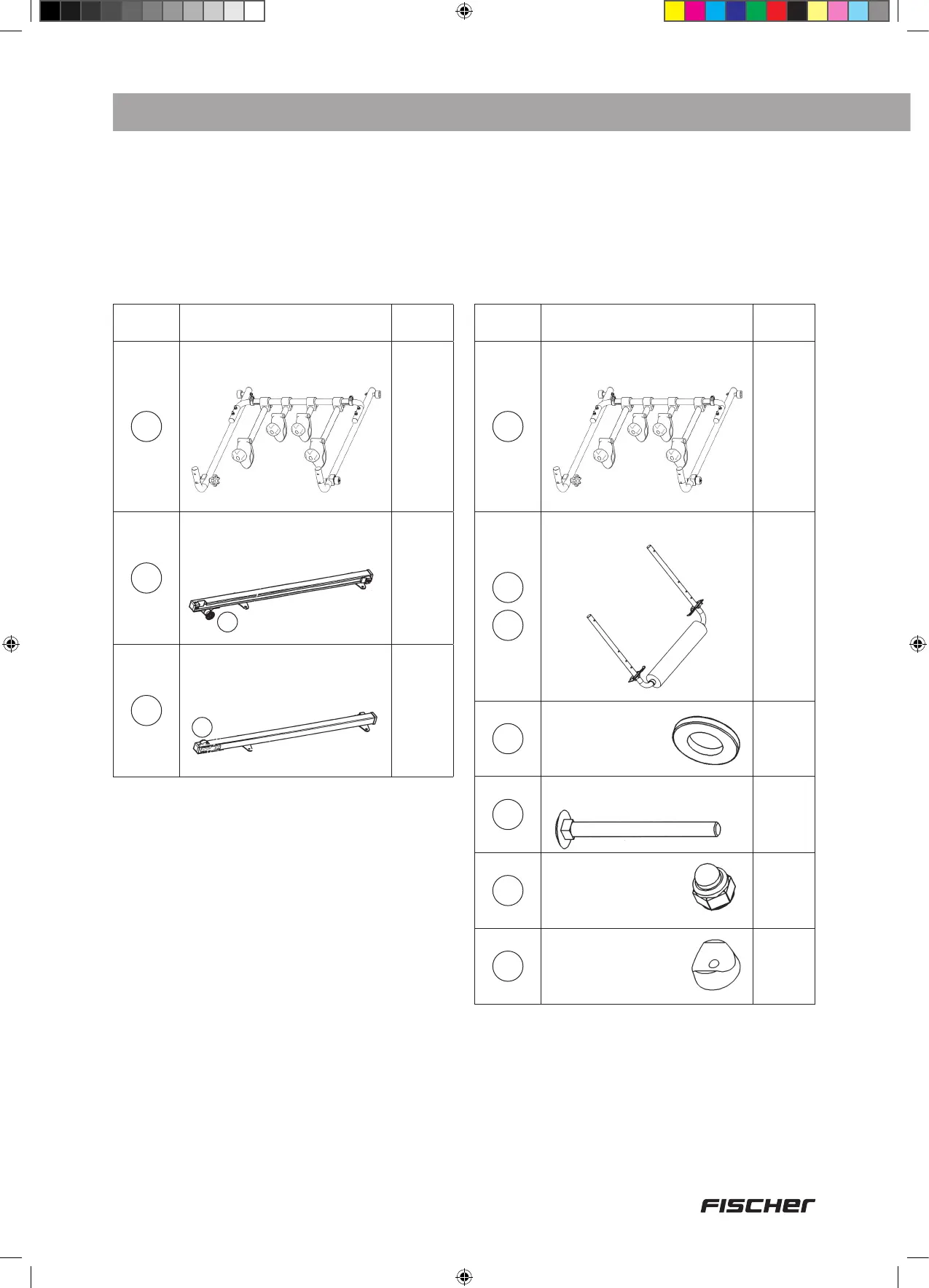

6. Assembly
Step 3
Now the base unit and guide rails are
separated.
Parts in front of you:
Step 4
Preassembling the bike carrying
bracket (2) on the base unit (1)
The following parts are required for this
assembly step:
Parts No. Image Quantity
1
Base unit (1)
1
3
Left guide rail (3)
(Support roller (3a) is on the
right)
1
4
Right guide rail (4)
(Support roller (4a) is on the
left)
1
Parts No. Image Quantity
1
Base unit (1)
1
2
2c
Bike carrying bracket (2)
incl. clamps
1
7
Washer,
6.5 mm, small
4
12
Carriage bolt M6 x 70 mm
4
13
Cap nut M6
4
17
Spacer
2
3a
4a
18092_Betriebsanleitung_D_GB_F_IT_PL.indd 29 13.02.15 11:25
