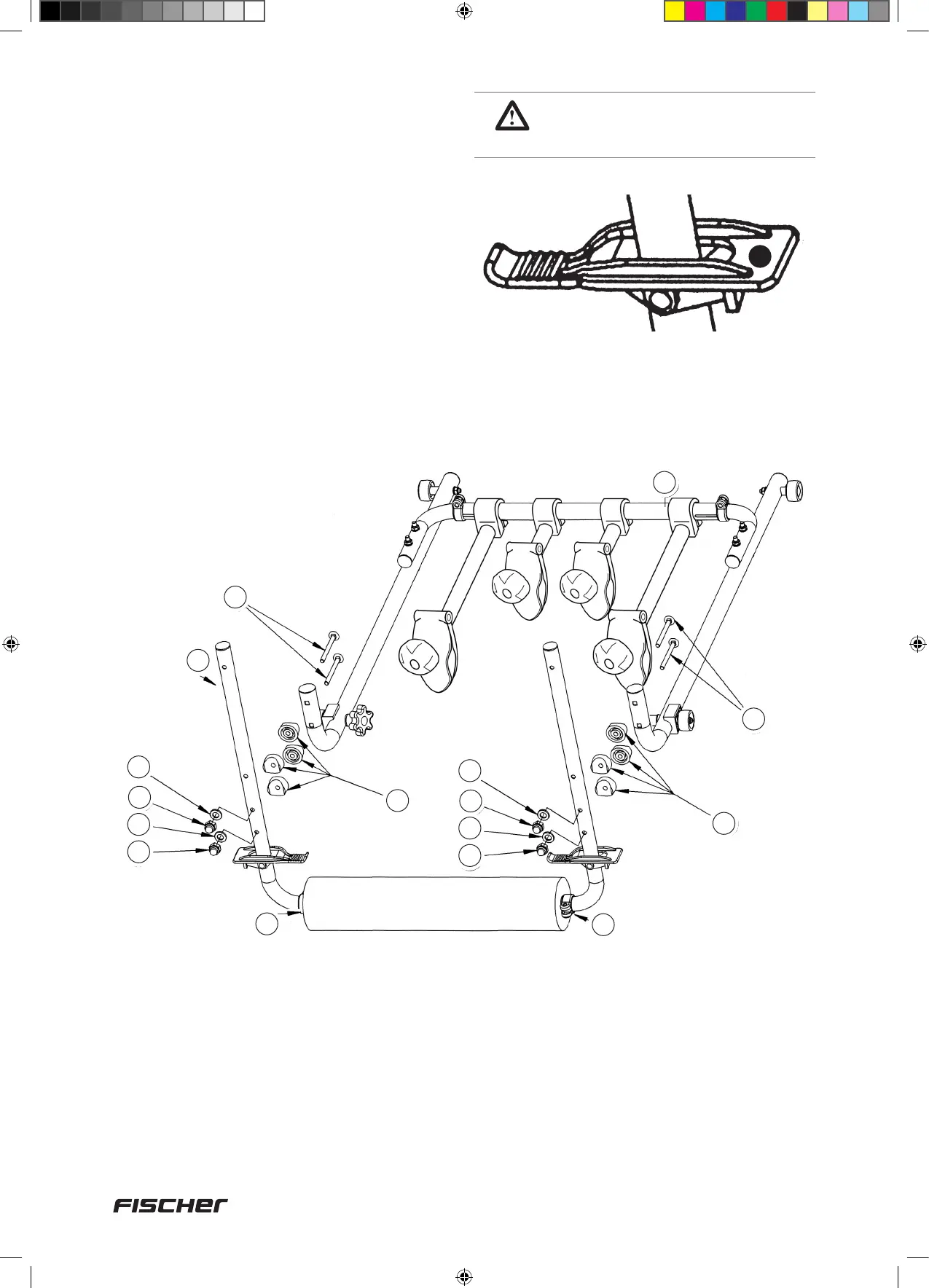

30
1. Before assembly, loosen the clamps (2c) on
the bike carrying bracket (do not screw off
completely). To adjust the width of the bike
carrying bracket (2) to the width of the base
unit (1) pull out/push in the round tubes on
the left and right of the retaining tube.
2. Insert the carriage bolt (12) on the bottom
of the base unit through the holes.
3. On the outside, attach the spacer (17)
and bike carrying bracket through the
inner holes.
4. On the other side, attach the washer (7)
and screw on the cap nut (13).
FOLLOW THIS STEP!
Right safety clamp - right Left safe-
ty clamp - left
(Notch right safety clamp)
R
2c
2c
17
17
12
1
12
2
7
7
13
13
7
7
13
13
