Step 6
Assembling the guide rails (3+4)
to the base support
The following parts are required for this
assembly step:
Both carrying bars on the base support are
adjusted, parallel and at the same distance.
It is recommended to lower the roof lift on the
passenger‘s side (SAFETY IN TRAFFIC).
So assemble the guide rails from the
passenger‘s side.
Step 5
The carrying unit is in front of you

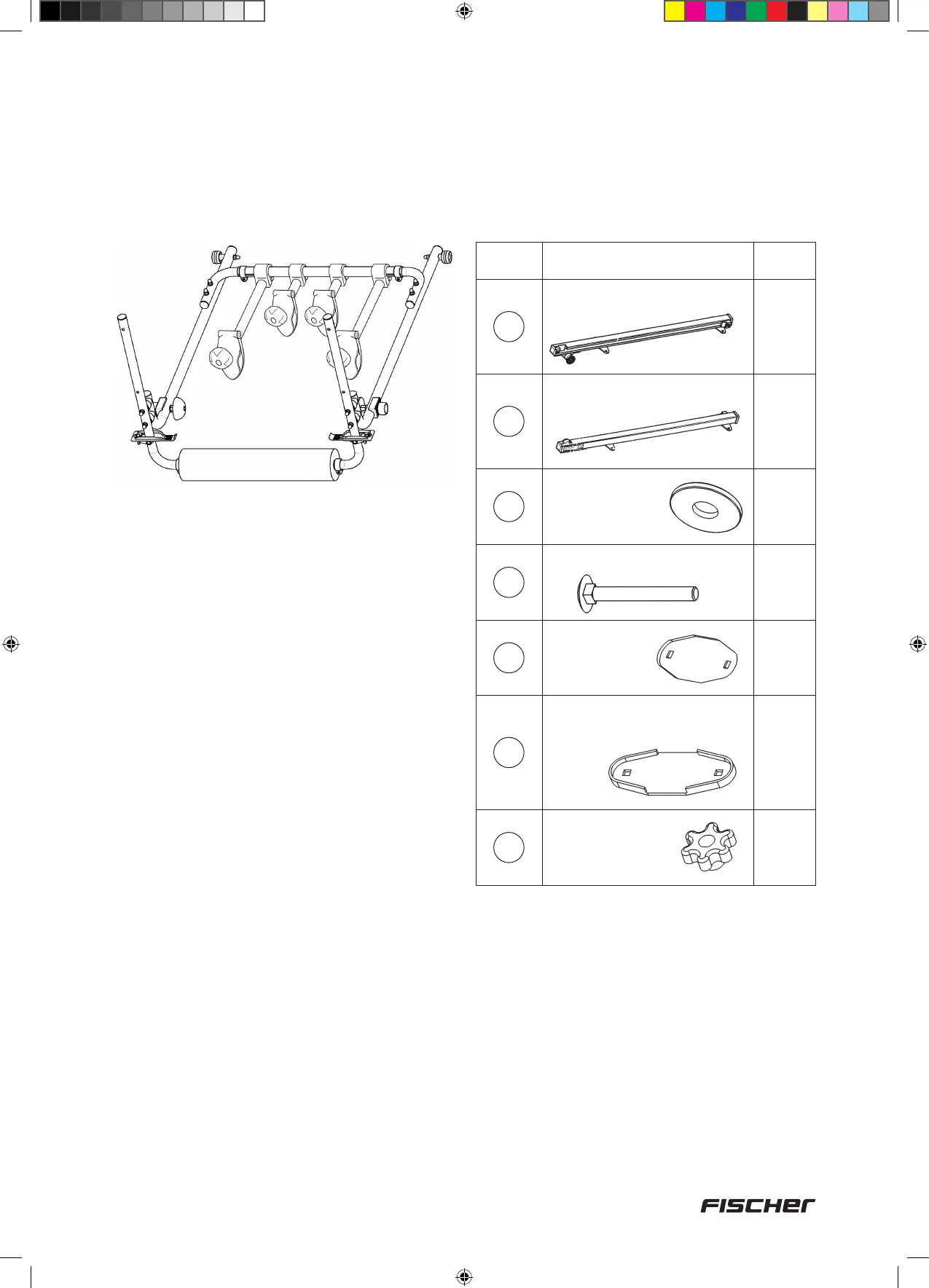

Parts No. Image Quantity
3
Left guide rail
1
4
Right guide rail
1
8
Washer,
6.5 mm, large
8
11
Carriage bolt, M6 x 50 mm
8
14
Mounting
plate
4
15
Protective prole for mounting
plate and base plate
8
16
Lock nut M6
8
