32

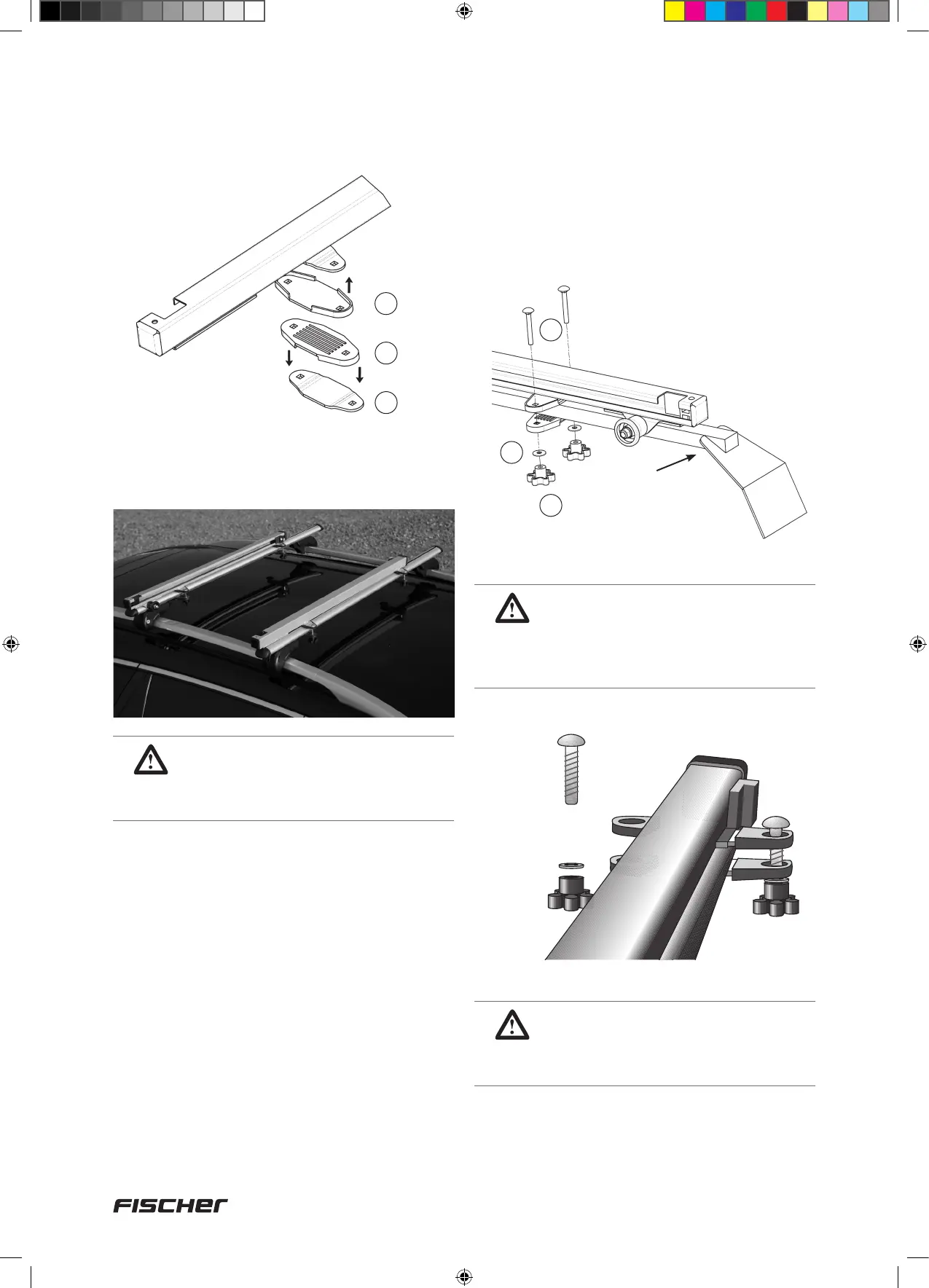

1. Push the protective profile (15) onto the base
plate of the guide rails (3b+c/4b+c)
and mounting plate (14).
2. Place the guide rail (3+4) on the carrying
bars with the opening facing forward.
IMPORTANT!
The support roller (3a+4a) must be
at least at a level with the roof edge
(not further inward).
NOTE:
The back mounting plates should
be screwed on loosely so that
the guide rails can align when the
carrying unit is pushed in.
TIP:
To ease mounting the guide rails
on the base support, premount the
mounting plate on one side.
14
15
base support
11
16
8
For use with base supports
with a bar height greater than
35 mm use carriage bolt (12)
15
3. Insert carriage bolt (11) - for use with base
supports with a bar height greater than 35
mm, use carriage bolt (12) - from above into
the hole on the base plates (3b+c/4b+c),
attach mounting plate (14) from below with
the rubber profile facing upward and washer
(8). Screw on lock nut (16). Screw the front
mounting plate on securely. Screw the back
mounting plates on loosely.
