37

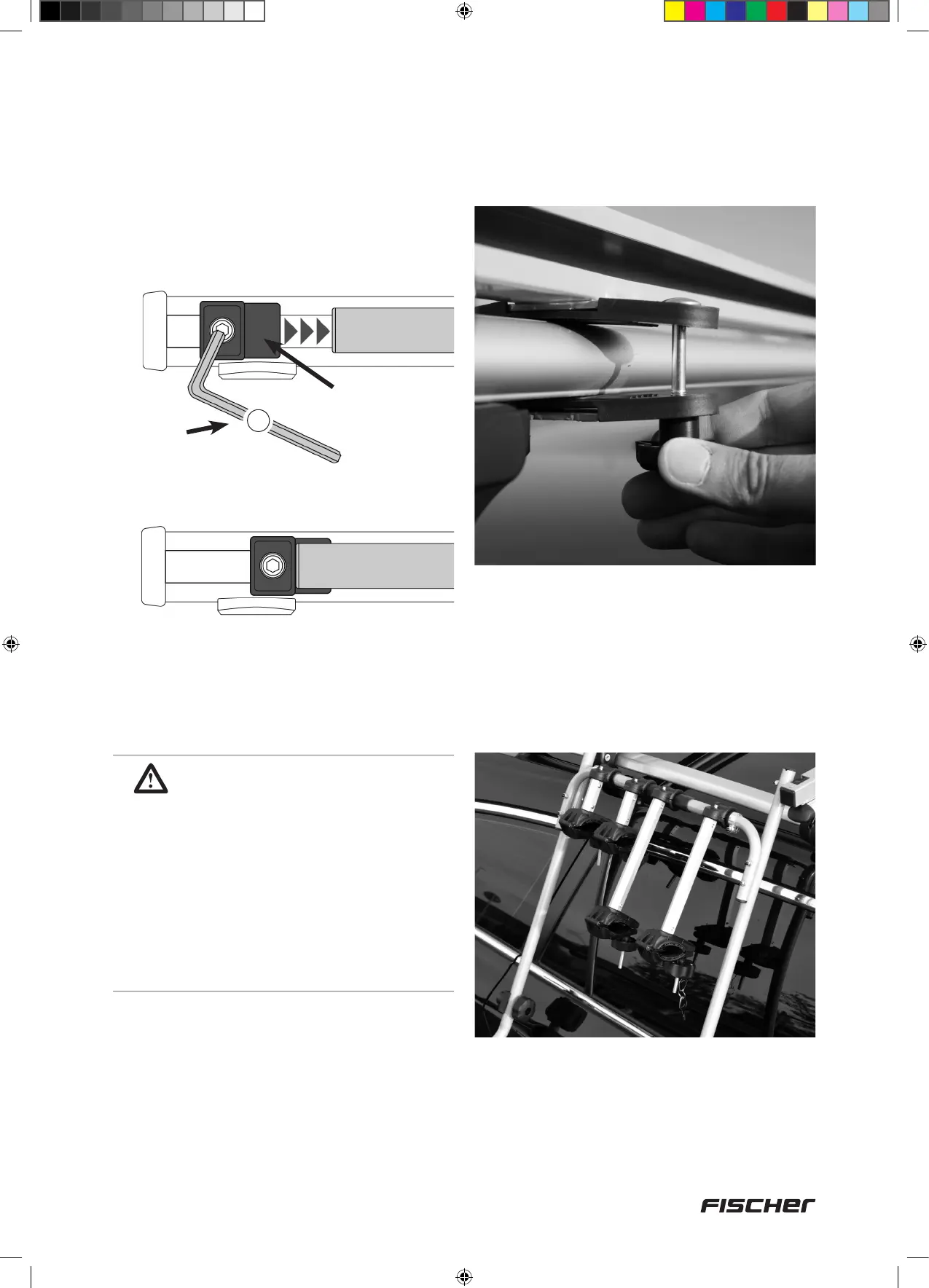

Loosen the hex screws (5 mm) on the bump
stops (do not screw off completely).
The bump stops can now be adjusted.
Correct setting:
The round tubes on the carrying unit should
be flush with the guide rails. After making the
correct setting, tighten the hex screw.
Hex key,
5 mm
Round tube on
carrying unit
Bump stop
23
Only after first assembly:
6. In Step 6.3, the back mounting plates (14)
were screwed on loosely (to adjust the guide
rails). The back mounting plates can now be
tightened.
NOTE:
1. If no bikes are loaded, set both
bike bracket arms (1a+1b) vertically
before lifting the carrying unit and
tighten the hand wheels. In this
way, the bracket arms cannot touch
the vehicle roof and side windows.
2. If bikes are loaded, secure both
bikes using the bike safety belts
(18) on the bikes‘ rims before lifting
the carrying unit!
