39

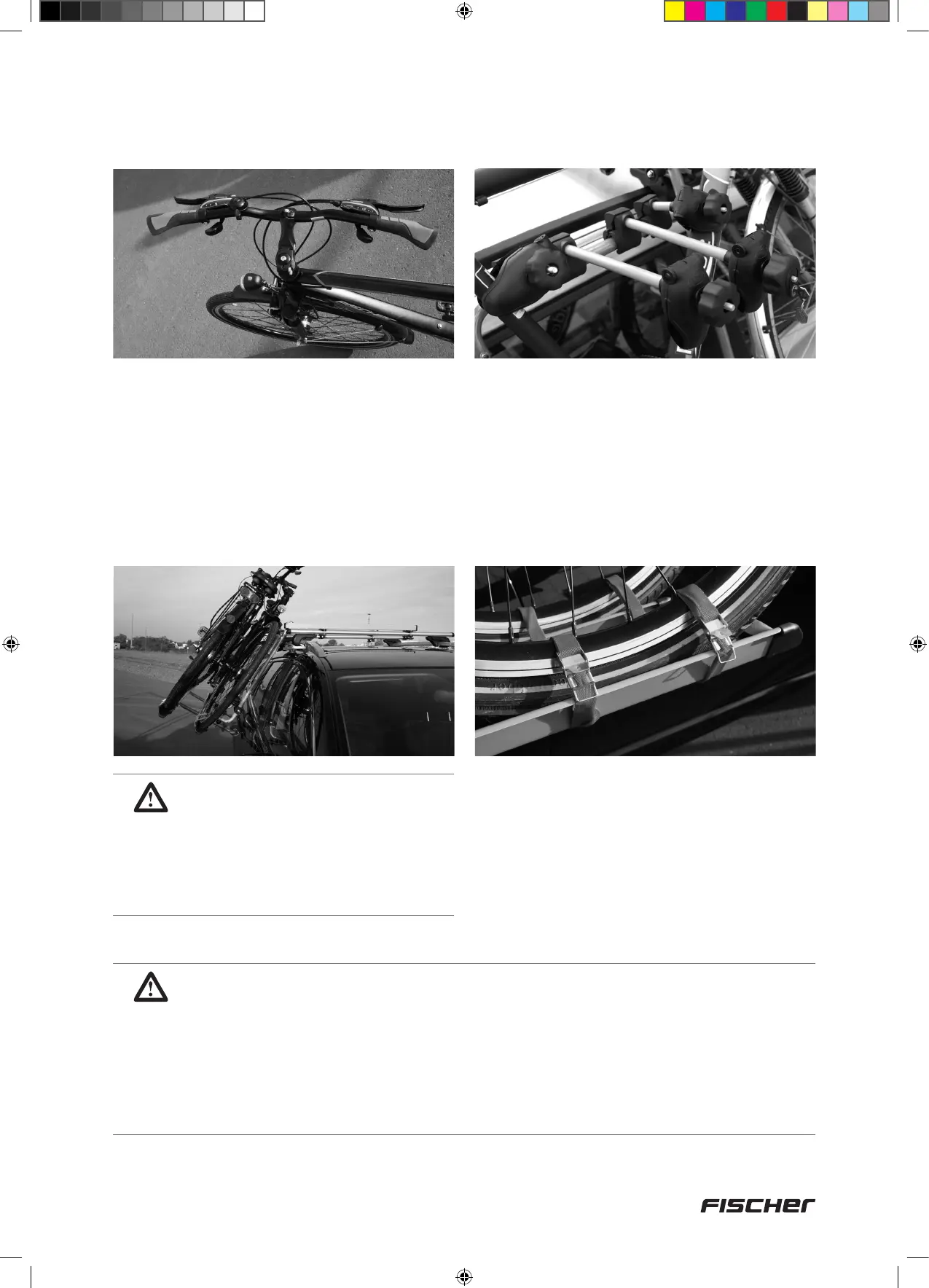

Step 12
Loading bikes
1. When loading 2 bikes: Before loading the
inner bike, turn the handlebars. To load
with the handlebars on the right, turn the
bike handlebars to the right. To load with
the handlebars on the left, turn the bike
handlebars to the left. The bike handlebars
may not touch the vehicle roof!
CAUTION!
When loading 2 bikes: Place the
long bracket arms horizontally
between the frame of the rst bike!
Check the position of the pedals of
the rst bike (pedals between the
frame of the second bike).
IMPORTANT NOTES!
1. If you are transporting just one bike, use the outer prole guide.
2. When used with low base supports, you will also need to turn the handlebar of the
outer bike.
3. Make sure that the bikes do not touch! It may be necessary to make appropriate
adjustments (e.g. seat).
4. Remove all structures mounted to the bike (such as children‘s seats) before
loading.
2. As described in Step 10, lower the carrying
unit onto the side of the vehicle, loosen the
hand wheel on the vehicle bracket arm
(do not loosen completely!) and place bike in
the profile guide (5). The frame clamp on the
bike bracket arm (1a+1b) should fit around
the bike‘s frame tube. The bike bracket arm
should be parallel with the carrying unit.
3. Place two bike safety belts (18) over the bike
rim and profile guides and tie down firmly.
The safety belts shall face outwards.
4. Secure both bikes using safety belt (21).
5. As described in Step 10, lift roof lift and
fasten safety screws (1f).
