Fisher & Paykel ACTIVESMART RS36A80 - Food Care

30
E

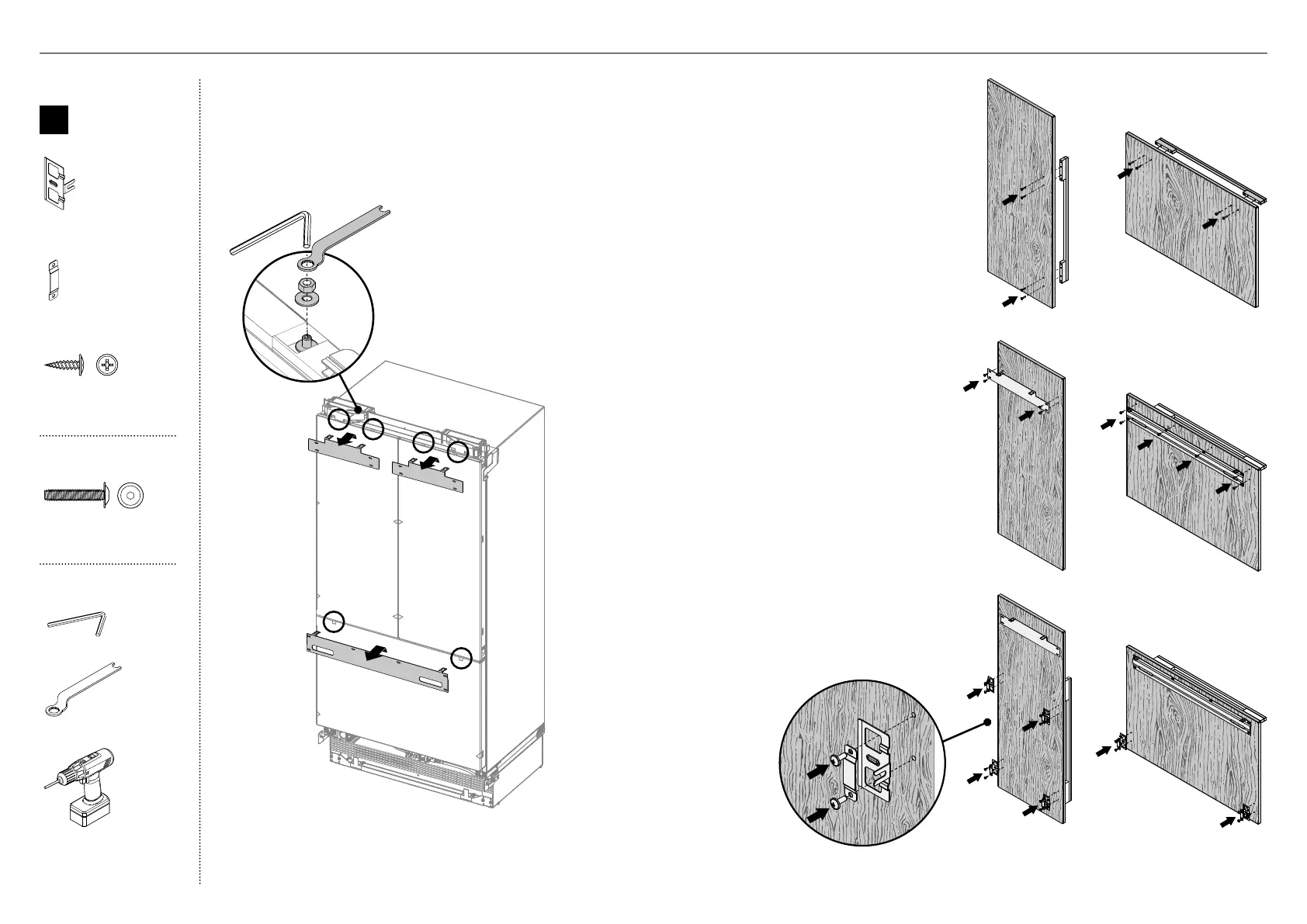

Remove hanging brackets
1
Remove the M8 washers and M8 nuts
fromtheM8 studs at the top the door (A).
Keepthe washers and nuts to reuse later.
2
Remove the hanging bracket from the top of
each door and set aside (B) for later installation.
Attach the door and drawer handles (C)
3
Align the handle holes with the door panel
holes and secure with M5x25 pan head
socket screws (4 per each doorpanel).
Note: Door handle kit available and
must be purchased separately.
Refer to 'Components' for moredetails.
B
A
Attach side brackets and straps (E)
5
Align the brackets and straps to the holes
on the side of the panel and secure with
#8x16 mush washer screw (20).
Attach the hanging brackets (D)
4
Align the bracket to the holes
and secure with #8x16 mush
washer screw (14).
C
C
D
D
Internal box
B
Door panel
attachment kit
Side bracket
(10)
Side strap
(10)
#8 x 16 Mush Washer Twin Thread Philips Screw
#8 x 16
Mush Washer
Twin Thread
Philips Screw
#8x16 mush washer
(Custom) screw (36)
Door handle kit
M5 x 25 Pan Head Socket Screw
M5 x 25 Pan Head Socket Screw
M5x25 pan head socket
screw (12x)
Tools
Hex key
FPA spanner
Powered driver (optional)
DOOR PANEL INSTALLATION CUSTOM
