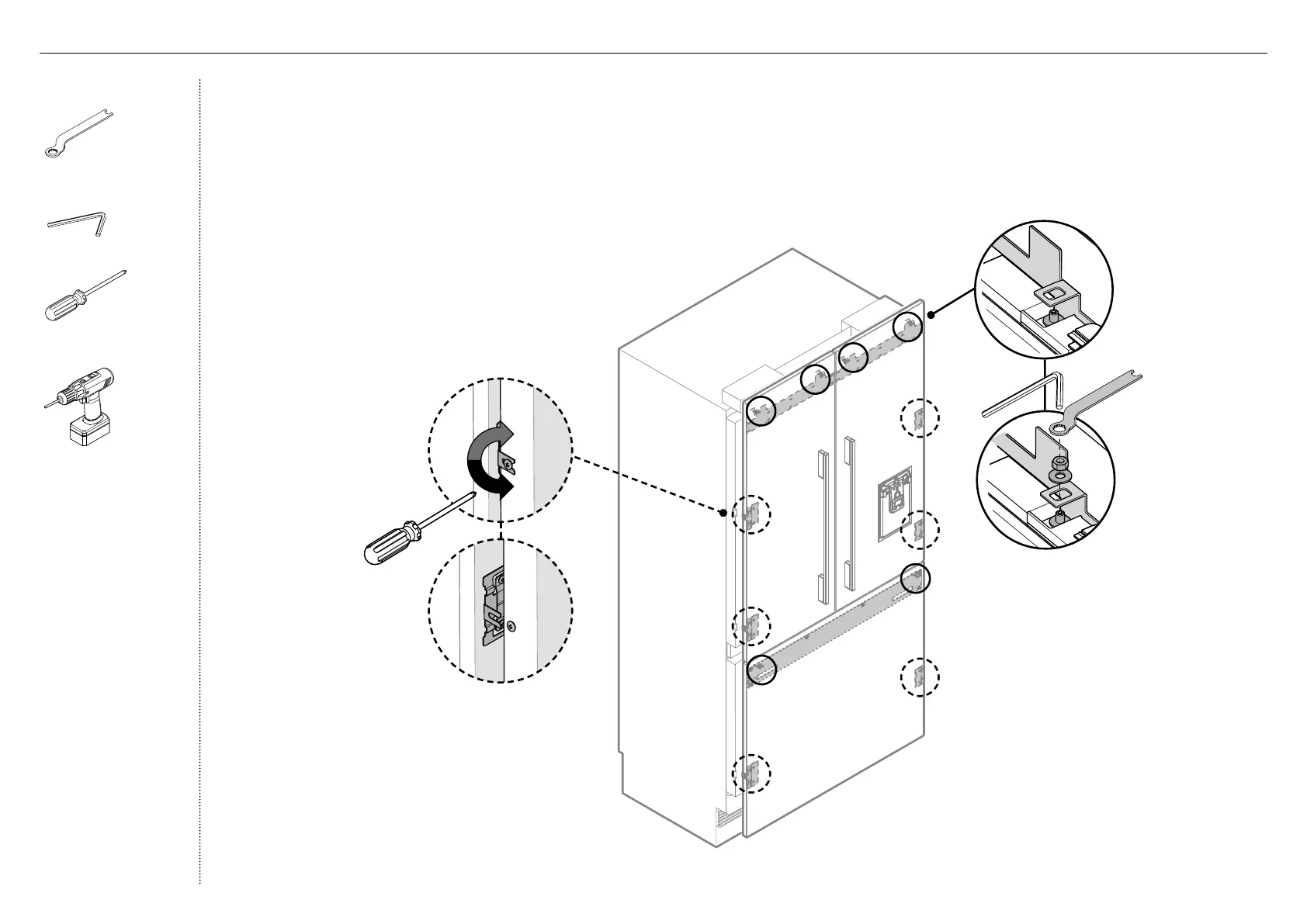

Attach the door panels
1
Open the door and loosen the M5x10 cross-head
screws (do not remove) at the sides of the doors (A).
2
Hang the door panel by inserting the M8 studs
through the holes of the hanging bracket (B).
3
Slide the forks of the side brackets onto the
screwsof the door (C).
4
Screw the M8 washer and nut to each stud(D),
and re-tighten the side screws (E) to fix the
door panel (do not fully tighten). This will allow
opening the door without affecting adjustment
of the door panel.
B
D
C
A
E
Tools
FPA spanner
Hex key
Cross-head screwdriver
Powered driver
(optional)
DOOR PANEL INSTALLATION - CUSTOM
