INSTALLATION INSTRUCTIONS
7

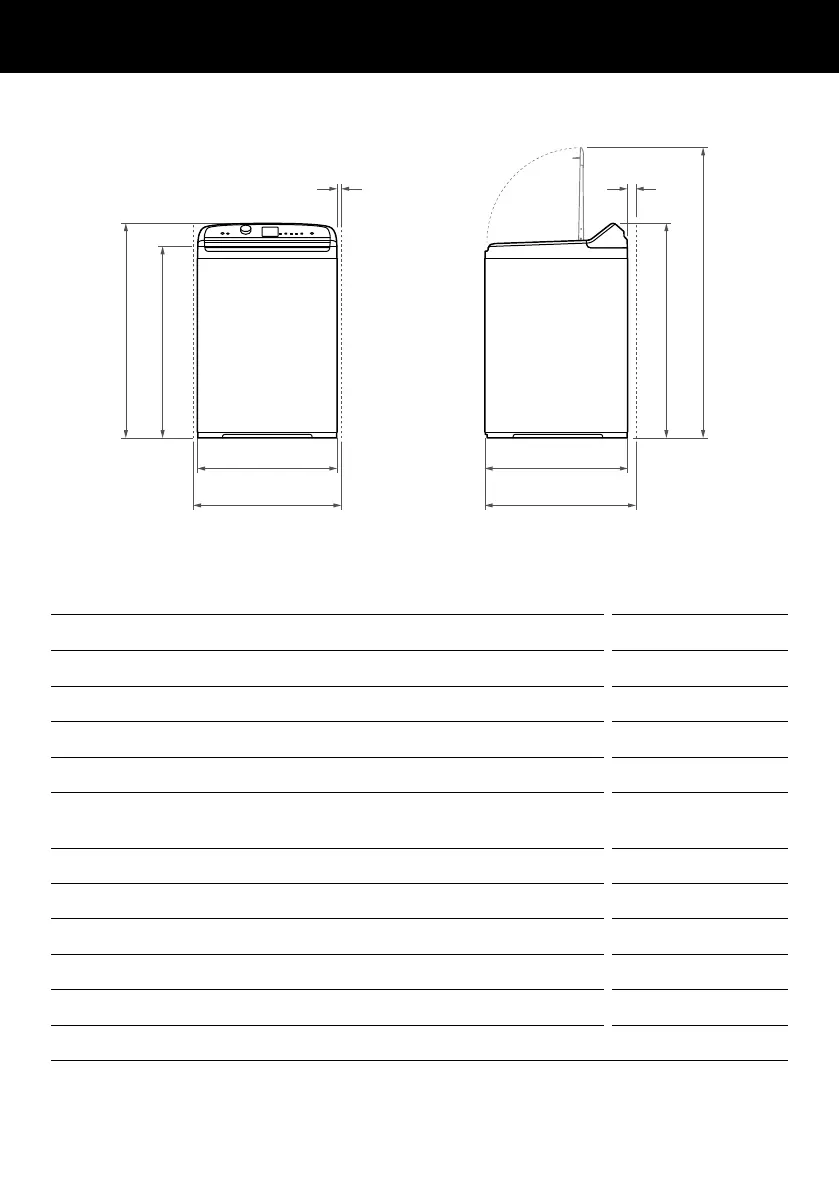

Product dimensions
PRODUCT DIMENSIONS MM
A Overall height of product (to highest point on console) 1060 – 1090
B Overall height of product lid open 1440 – 1470
C Overall width of product 685
D Overall depth of product 700
E Height of product to top of lid closed* (measured at
front of product)
950-980
Standpipe or spigot height 850 – 1200
MINIMUM CLEARANCES MM
F Minimum cavity width 725
G Minimum depth clearance (incl. inlet hoses and drain hose) 750
H Minimum clearance to wall or adjacent product
#
20
I Minimum clearance at the rear of the product
50
*The exact height of your washer is dependent on how far the feet are extended from the base of
the washer.
#
Applies either side.
PROFILE VIEWFRONT VIEW
A
A B
C
F
D
g
e
h I
