8 SERVICING THE COMPONENTS
Warning!
When servicing the DW60 dishwasher, ensure all health and safety requirements are followed. When
removing outer panels or making any component adjustments, ensure the power is switch off to the
appliance.
For some servicing procedures, the dishwasher may need to be disconnected and removed from the
joinery. Ensure you take precautions to ensure you do not damage floor linings with sharp edges.

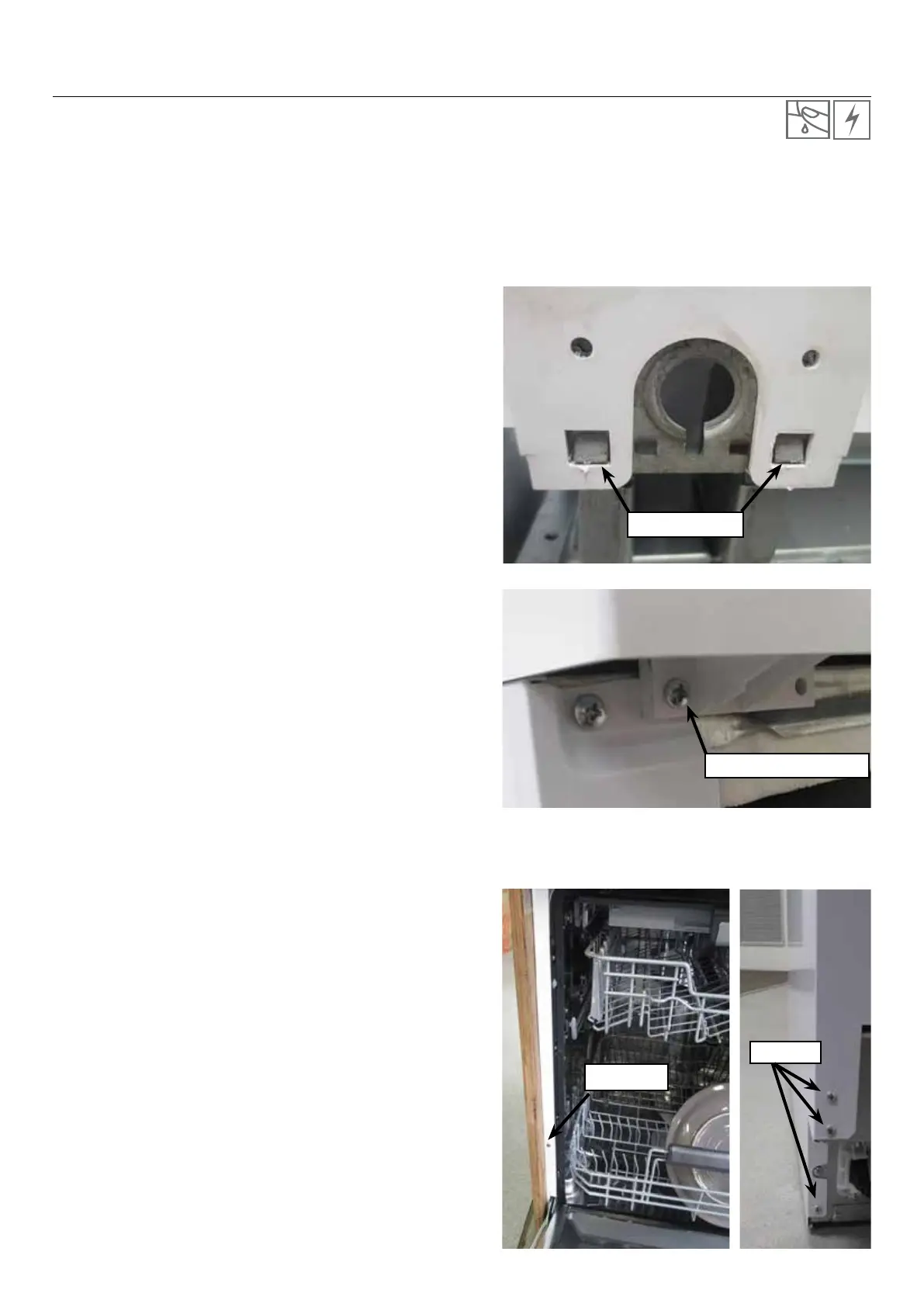

8.1 Removing the Front KickStrip Panel
• Pull the product slightly from the joinery, and tilt
backwards.
• Unclip the tabs on both sides. Removing the
levelling foot may make this easier.
• With the clips disengaged pull the kickstrip panel
forward to release it.
8.2 Removing the Top Panel
8.3 Removing the Side Panels
• Remove the product from the joinery to gain
access to the rear screws.
• Remove the screws from each rear bracket.
• Slide the top panel backwards approx 10mm to
release the side tags.
• Lift the top panel clear.
rear bracket screw
• Remove the front kickstrip panel (refer
section 8.1)
• Remove the top panel (refer section 8.2).
• Remove the top screws securing the side
panel to the chassis.
• Remove the rear and front screws retaining
the side panel.
• The side panel will now be removed.
retaining clips
screws
SCREW
