Fisher & Paykel DW60FC1 Service Manual

6
2 SPECIFICATIONS
2.2 Plumbing Options
5
1
2
1
2
3

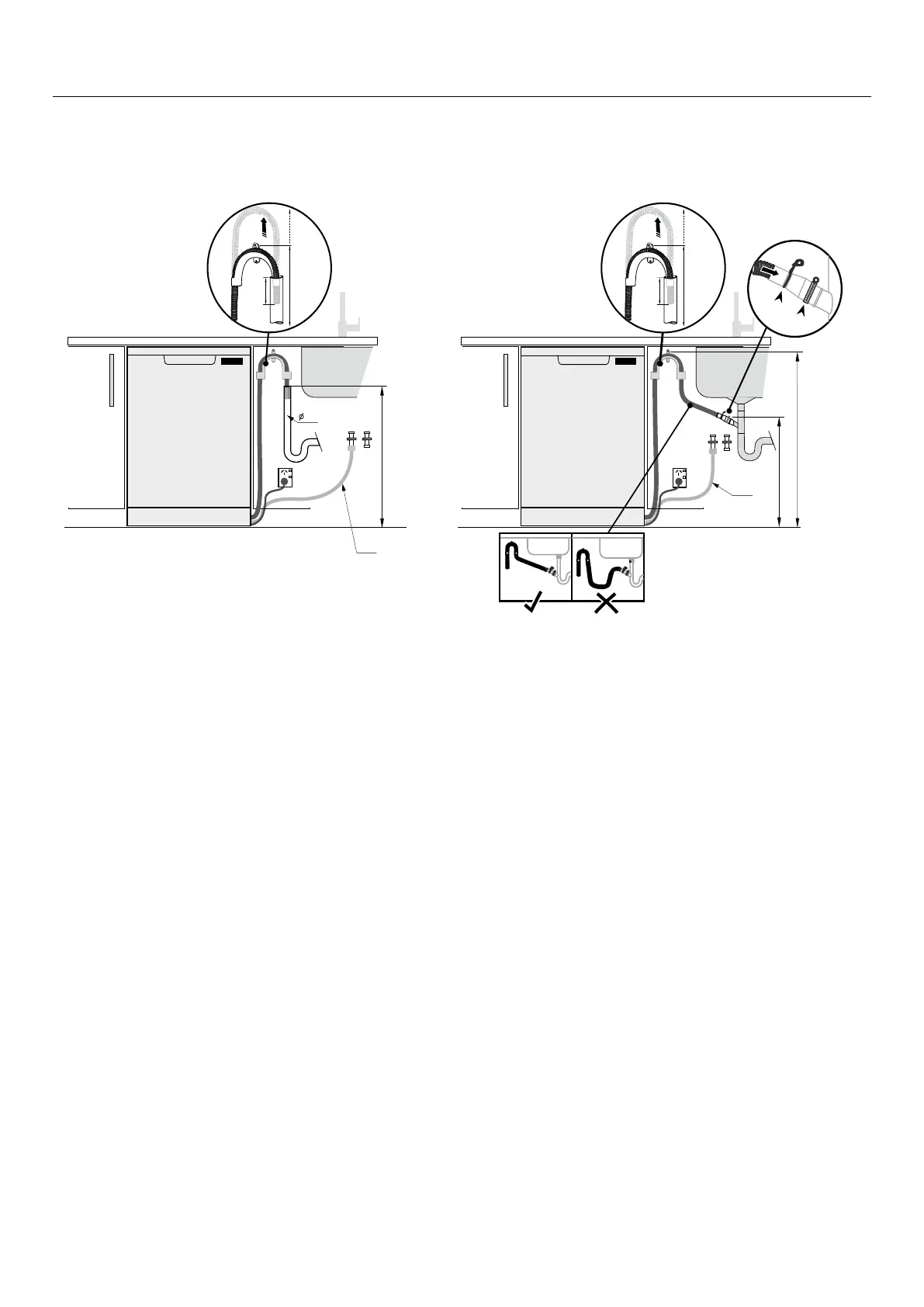

7 PLUMBING AND DRAINAGE OPTIONS. DETERMINE WHICH IS MORE SUITABLE.
If space is limited
for fixing, push
hose through drain
hose support
to required height
If space is limited
for fixing, push
hose through drain
hose support
to required height
Dishwasher using drain hose joiner
onto sink trap/waste tee
min. radius
200 mm
min. 750 mm
min. 500 mm
min. radius
200 mm
step 8
step 8
Installer to provide
drain hose joiner to suit
min. 15mm waste tee
Ensure drain hose is routed
straight to joiner. Remove excess
drain hose material if necessary.
Do not shorten the inlet hose.
Dishwasher and Ø 38 mm Standpipe
IMPORTANT!
Do not connect the drain hoses
to a Waste Disposal Unit, as this
type of connection may lead to a
blockage in the drain hoses.
750-882.5 mm 750-882.5 mm
750 - 882.5 mm
38mm
min.
120mm
