YOU MUST USE STABILITY
ANTI TIP BRACKET TO
PREVENT UNIT FROM
TIPPING.

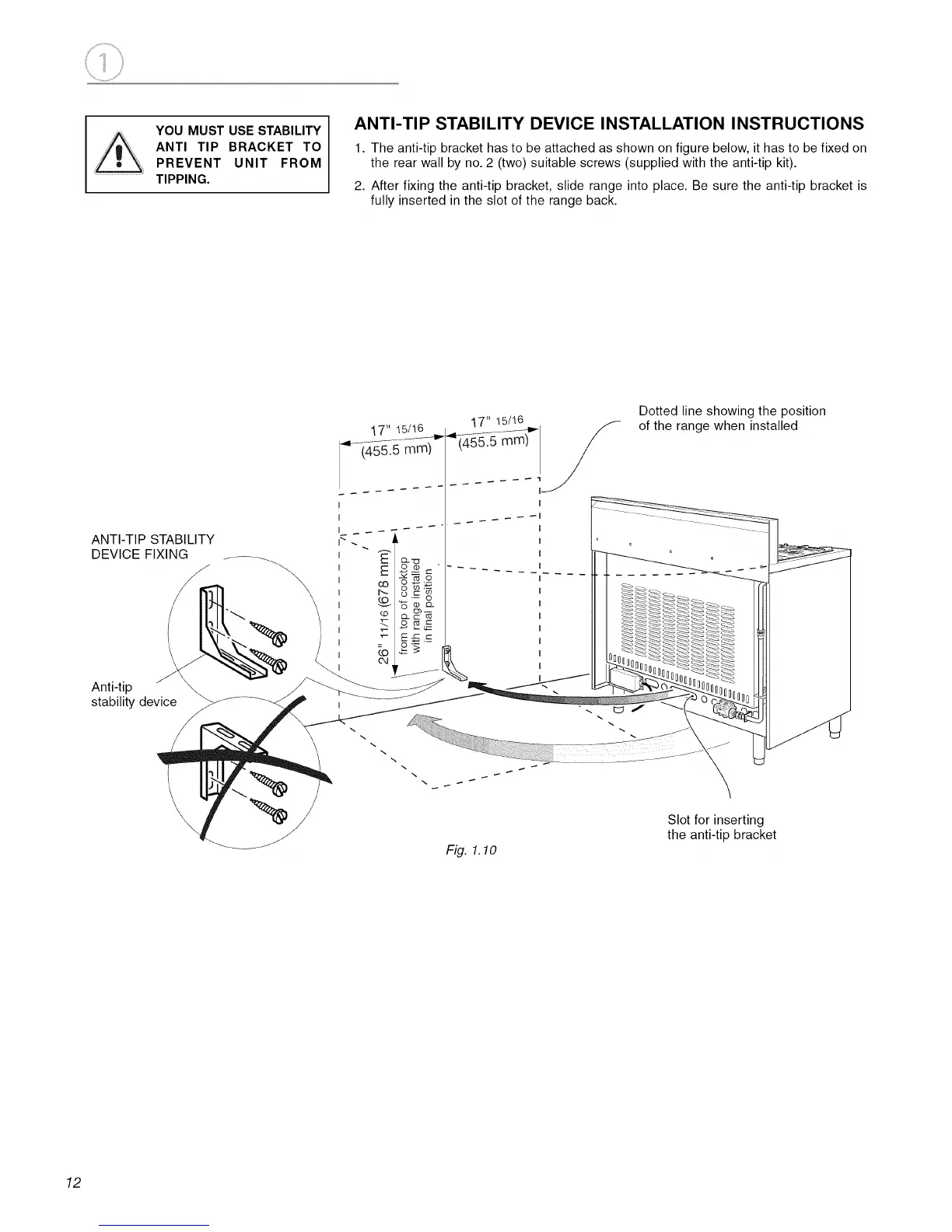

ANTI-TIP STABILITY DEVICE INSTALLATION INSTRUCTIONS
1. The anti-tip bracket has to be attached as shown on figure below, it has to be fixed on
the rear wall by no. 2 (two) suitable screws (supplied with the anti-tip kit).
2. After fixing the anti-tip bracket, slide range into place. Be sure the anti-tip bracket is
fully inserted in the slot of the range back.
ANTI-TIP STABILITY
DEVICE FIXING
Anti-tip
stability device
17" !5/!6 ,/
(455.5 ram)
t
Dotted line showing the position
of the range when installed
Fig. 1.10
Slot for inserting
the anti-tip bracket
12
