INSTALLING THE COOKTOP FRONT GUARD
To increase the clearance between the front edge of the cooktop and the burners, install the cooktop front guard supplied with the ap-
pliance.
IMPORTANT: To install/remove the guard it is necessary to remove the cooktop.
Attempting to install/remove the guard without disassembling the cooktop will result in permanent damage to the appliance.

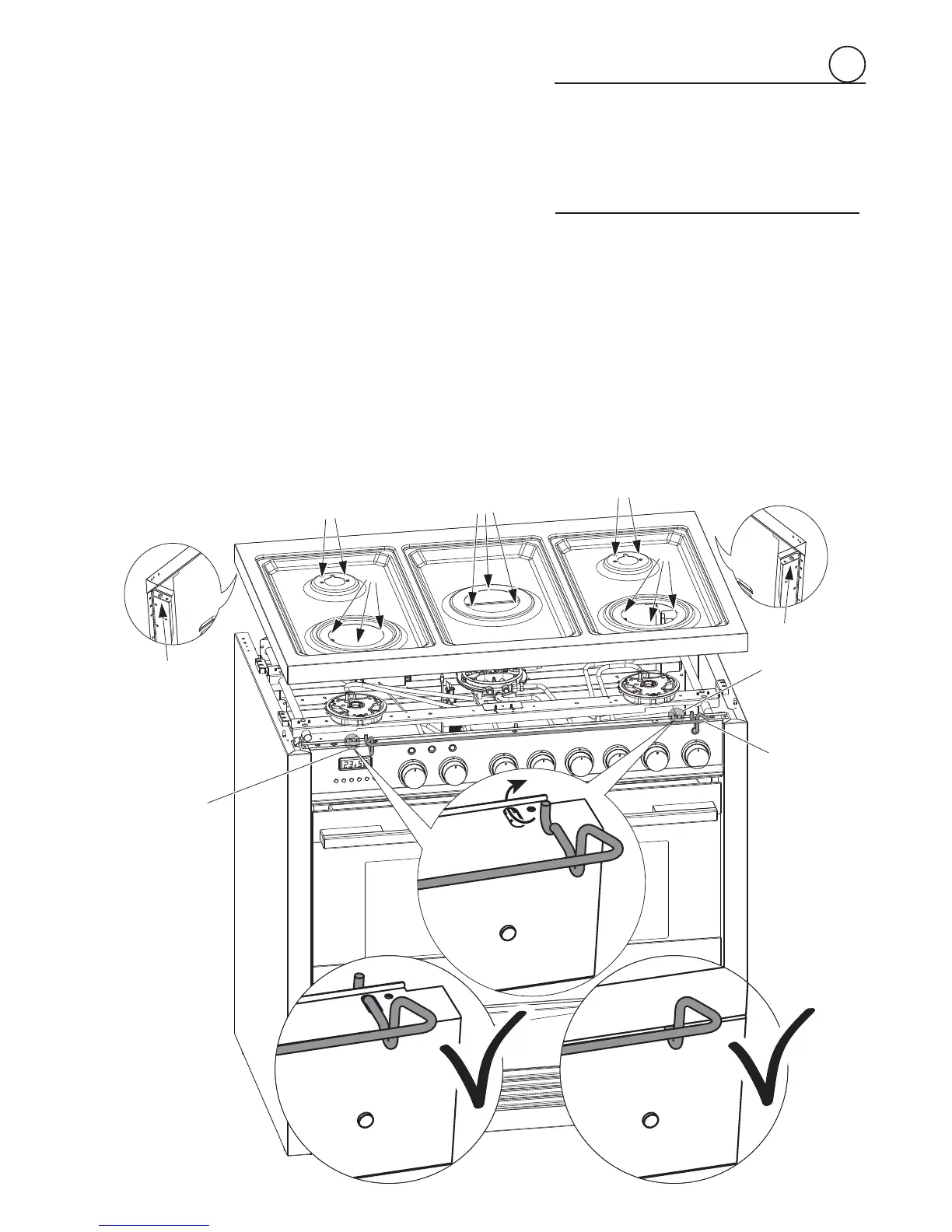

Install the front guard as shown in fi gure 1.10:
1. Remove the backguard/island trim.
2. Remove the pan supports, the burner caps and the fl ame spreaders.
3. Unscrew cooktop fi xing screws (“A” and “B” in fi gure below).
4. Remove the cooktop (keep attention not to damage the gaskets fi tted above the burner cups - below the cooktop).
5. Install the front guard “C” by inserting the wire terminals into the proper holes above the control panel (“D” in fi gure below).
6. Reassemble the cooktop and the other components (steps from 4 to 1).
Pay special attention to the gaskets fi tted above the burner cups (below the cooktop); if they are damaged they shall be replaced.
B
B
C
D
D
A
A
A
A
A
Fig. 1.10
