electrical connection
3
If codes permit and a separate ground wire is used, it is recommended that a qua-
lifi ed electrician installer determine that the ground path and wire gauge are in
accordance with local codes.
Be sure that the electrical connection and wire size are adequate and in conformance
with:
• ANSI/NFPA 70 latest edition and local codes and ordinances;
• CSA Standard C22.1, Canadian Electrical Code, Part 1 - latest edition, and all local
codes and ordinances.
ONLY FOR CANADA:
A copy of the above code standards can be obtained from:
CANADIAN STANDARDS ASSOCIATION
178 Rexdale Boulevard
TORONTO, ON M9W 1R3
CANADA
• Do not ground to a gas pipe.
• Check with a qualifi ed electrical installer if you are not sure the range is properly
grounded.
• Do not have a fuse in the neutral or ground circuit.
• When a 4-wire, two phase 120/240V or 120/208V, 60Hz, AC-only electrical supply
is available, a 30 amp maximum circuit protection is required, fused on both sides
of the line.
• A time-delay fuse or circuit breaker is recommended.
• This range is equipped with a Certifi ed Power Cord intended to be plugged into a
standard 14-50R wall receptacle. Be sure the wall receptacle is within reach of ran-
ge’s fi nal location.
• Do not use an extension cord.
In the case of substitution of the power cord always replace it with a suitable UL or CSA
approved one (with the same technical features of the replaced cord).
Tighten the power cord by using only the power cord strain relief bracket supplied with
the appliance.
Allow enough slack to easily attach the cord terminals to the terminal block.
These operations must be carried out only by an authorized technician.
Voltage and Power Consumption
AC 120/240 V 60 Hz 3450 W MAX 14.4 A MAX
AC 120/208 V 60 Hz 2600 W MAX 12.5 A MAX
Power supply cord with
NEMA 14-50P plug
Standard NEMA 14-50R wall receptacle
WARNING
Electrical Shock Hazard
Electrically ground range.
Failure to follow these instruc-
tions can result in death, fire, or
electrical shock.

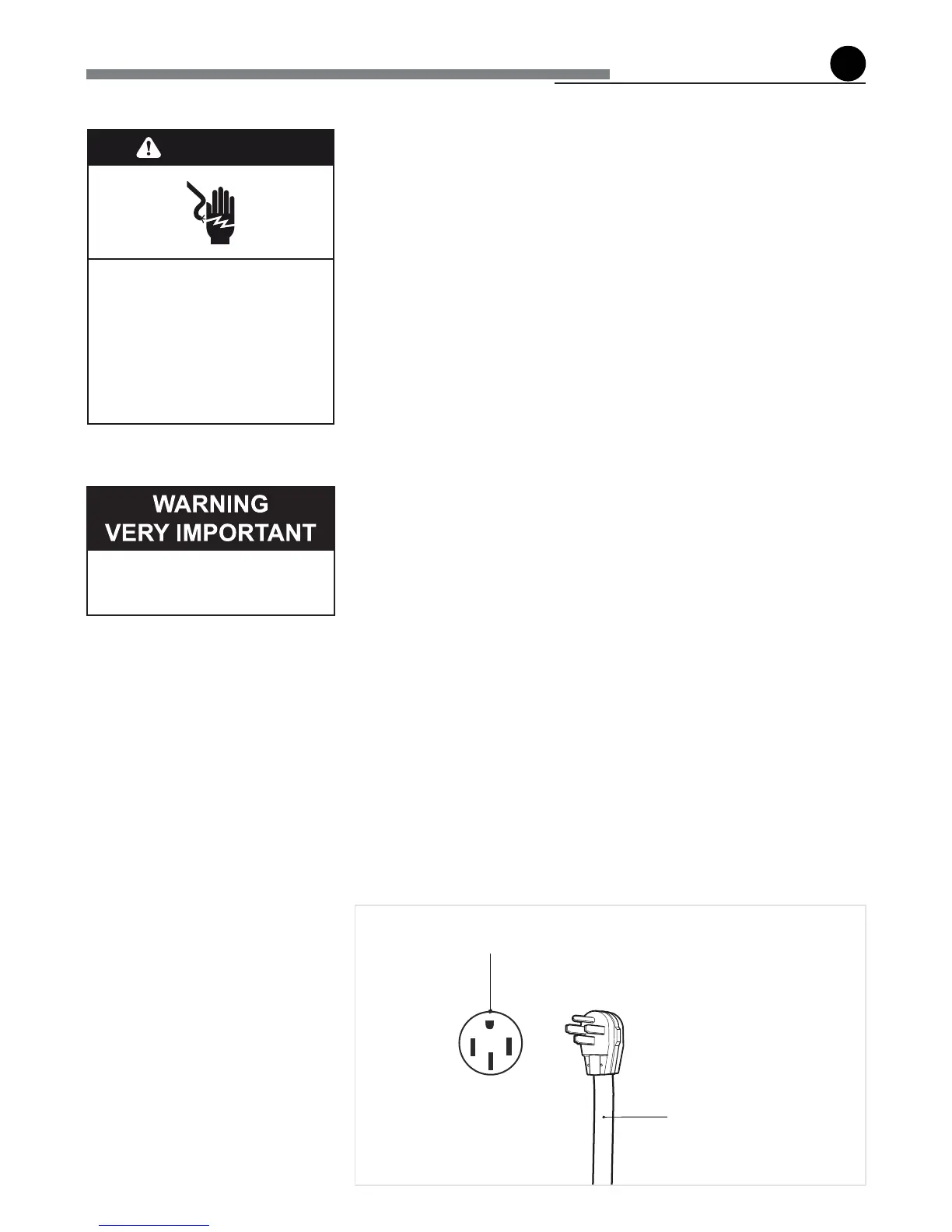

Fig. 3.1
Before any operation of mainte-
nance disconnect the appliance
from the electrical main supply.
