8
8

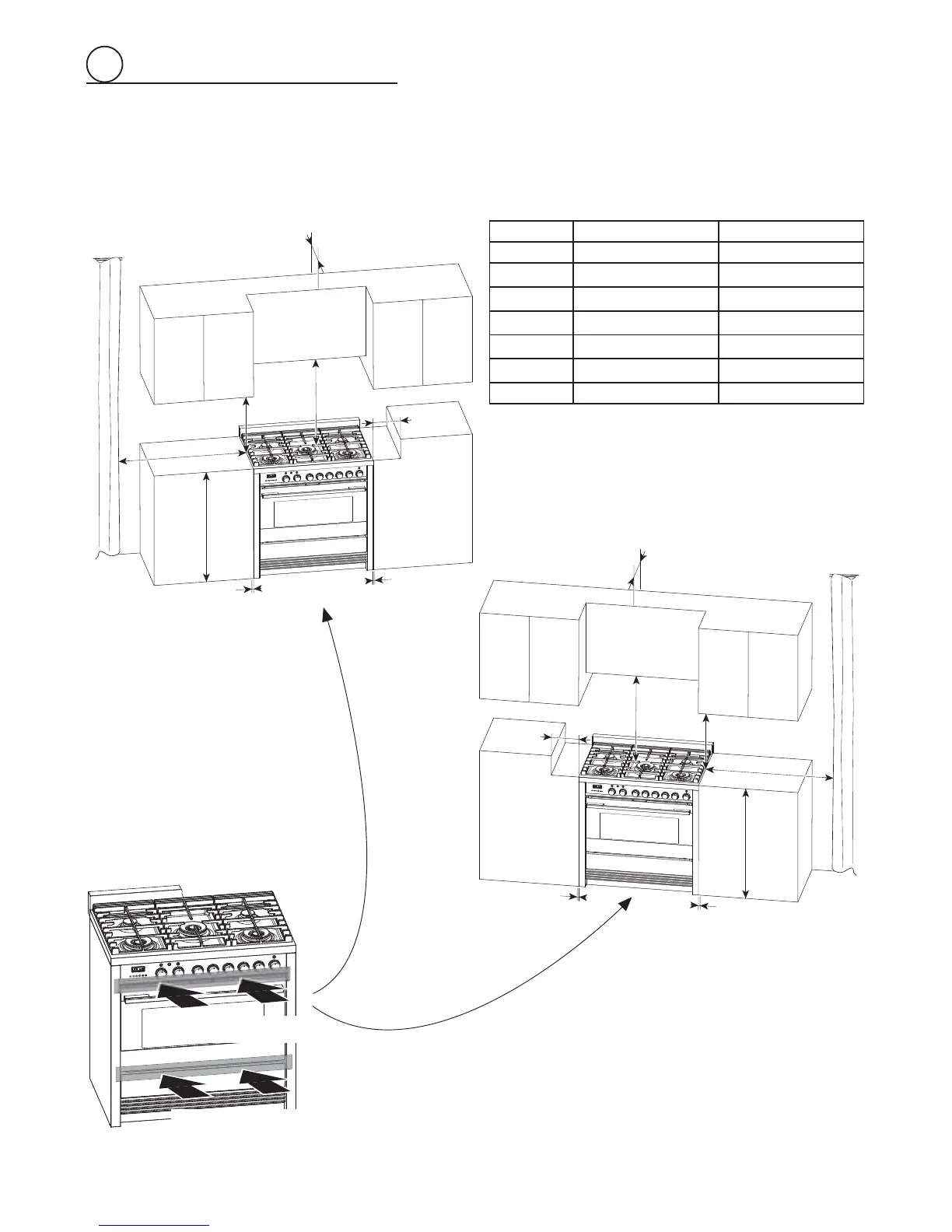

PROXIMITY TO SIDE CABINETS
STANDARD INSTALLATION
1
Fig. 1.4b
Fig. 1.4a
Ref. inch mm
A 0” 0
B 36” 914
C 11” 13/16 300
D 30” minimum 762 minimum
E 18” minimum 457 minimum
F 13” maximum 330 maximum
G 20” minimum 500 minimum
A
C
A
B
G
E
D
F
A
A
B
G
E
D
F
C
OVEN VENT
OVEN VENT
