7
1

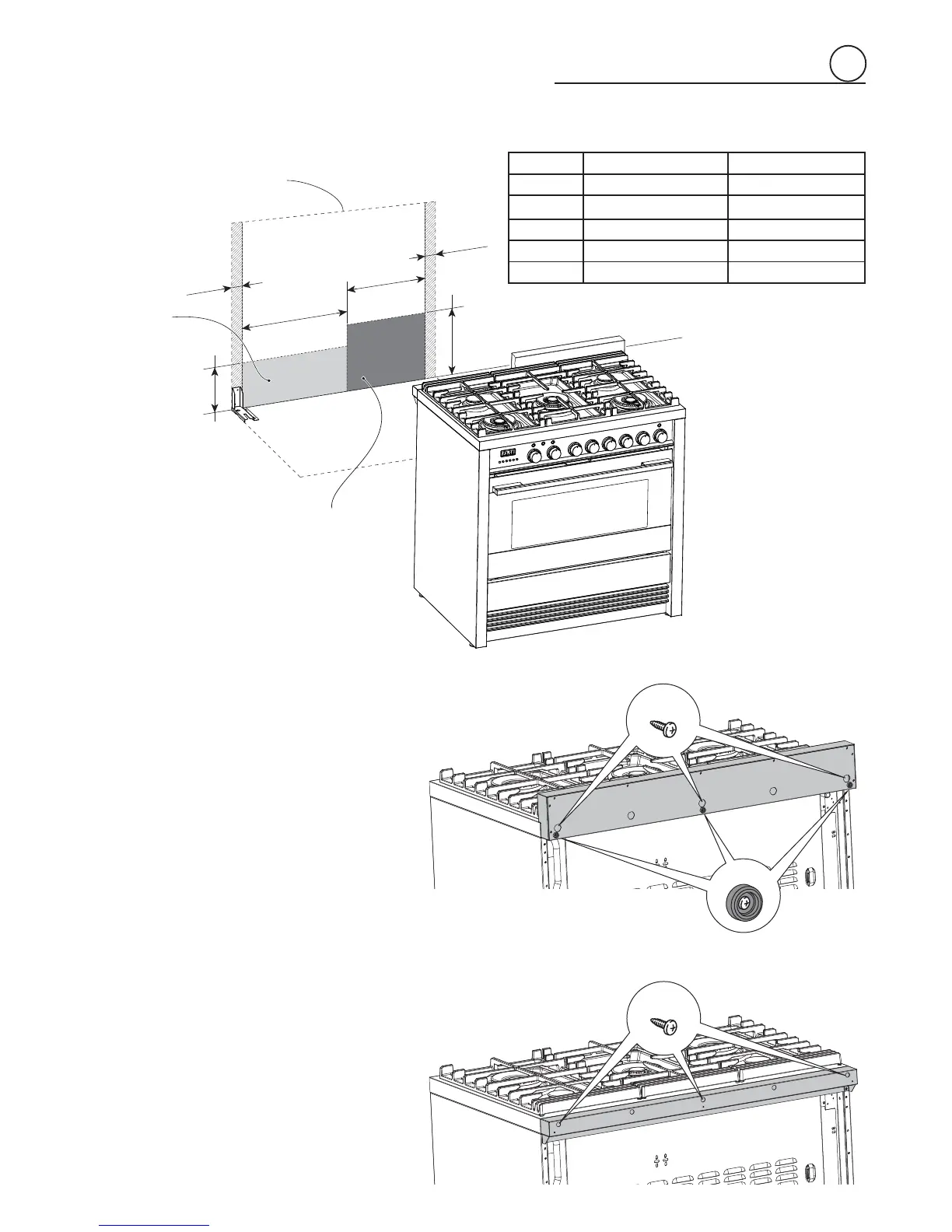

ASSEMBLING THE BACKGUARD
OR THE ISLAND TRIM
It is mandatory to install the
backguard or the island trim
• Assemble the backguard or the island trim
as shown in fi gure 1.3a or 1.3b and fi x it by
screwing the 3 screws “A” (which are already
fi xed on the back of the cooktop).
• Backguard only: do not remove the 3 spacers
“B” already fi tted on the back of the backguard.
GAS AND ELECTRIC CONNECTION
Fig. 1.2
Dotted line showing the position
of the range when installed
Area for
ELECTRICAL
connection
Area for
GAS connection
A
A
B
D
E
C
Ref. inch mm
A 2” 3/64 52
B 13” 3/16 335
C 10” 33/64 - 11” 9/64 (*) 267 - 283 (*)
D 18” 9/16 472
E 6” 17/32 - 7” 11/64 (*) 166 - 182 (*)
(*) : Depending on feet regulation
Fig. 1.3a
Fig. 1.3b
A
B
A
