9
9

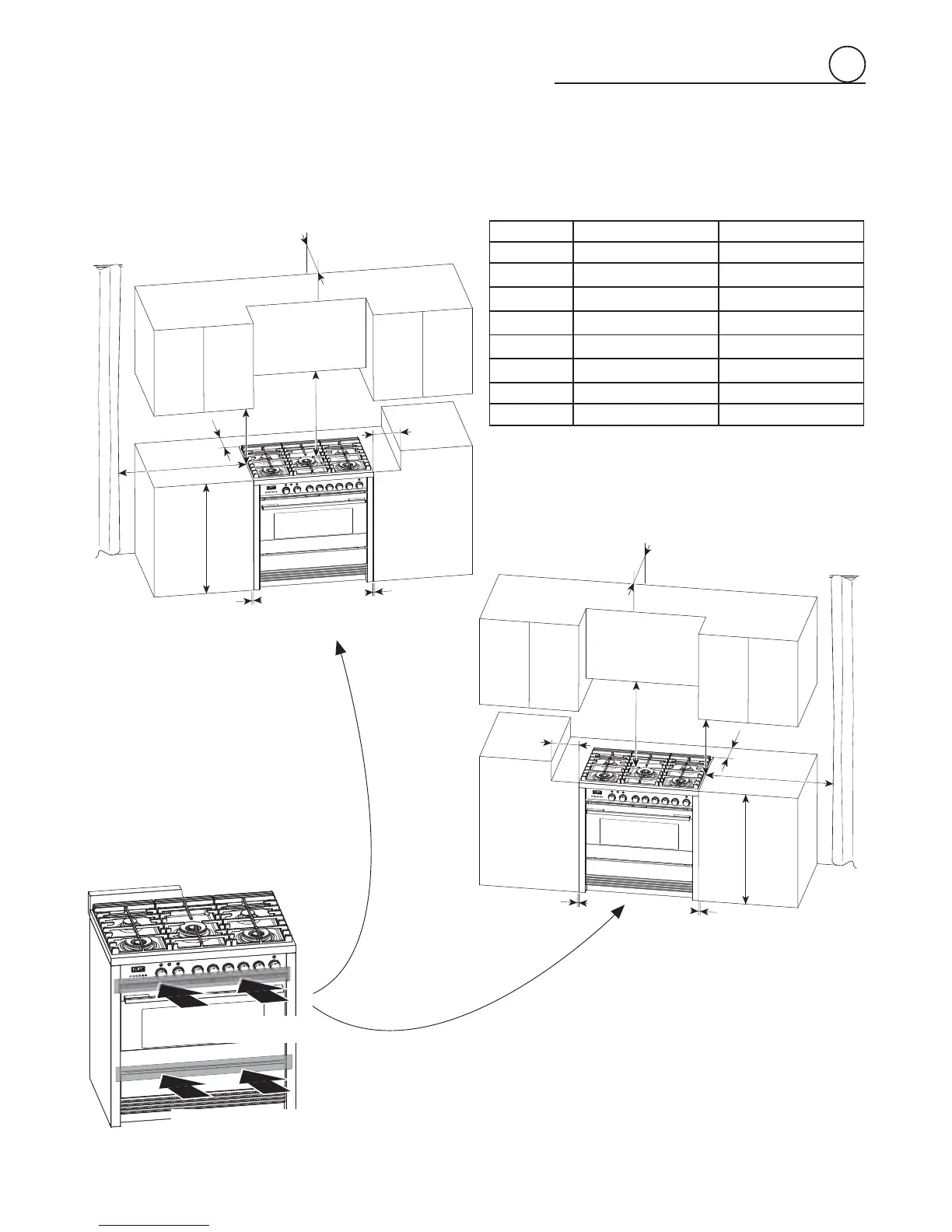

PROXIMITY TO SIDE CABINETS
ISLAND INSTALLATION
1
Fig. 1.5b
Fig. 1.5a
Ref. inch mm
A 0” 0
B 36” 914
C 11” 13/16 300
D 30” minimum 762 minimum
E 18” minimum 457 minimum
F 13” maximum 330 maximum
G 20” minimum 500 minimum
H 12” minimum 305 minimum
A
A
B
G
H
E
D
F
C
A
A
B
G
H
E
D
F
C
OVEN VENT
OVEN VENT
