Fisher 1051 User Manual

Type 1051 & 1052 Styles H & J
26

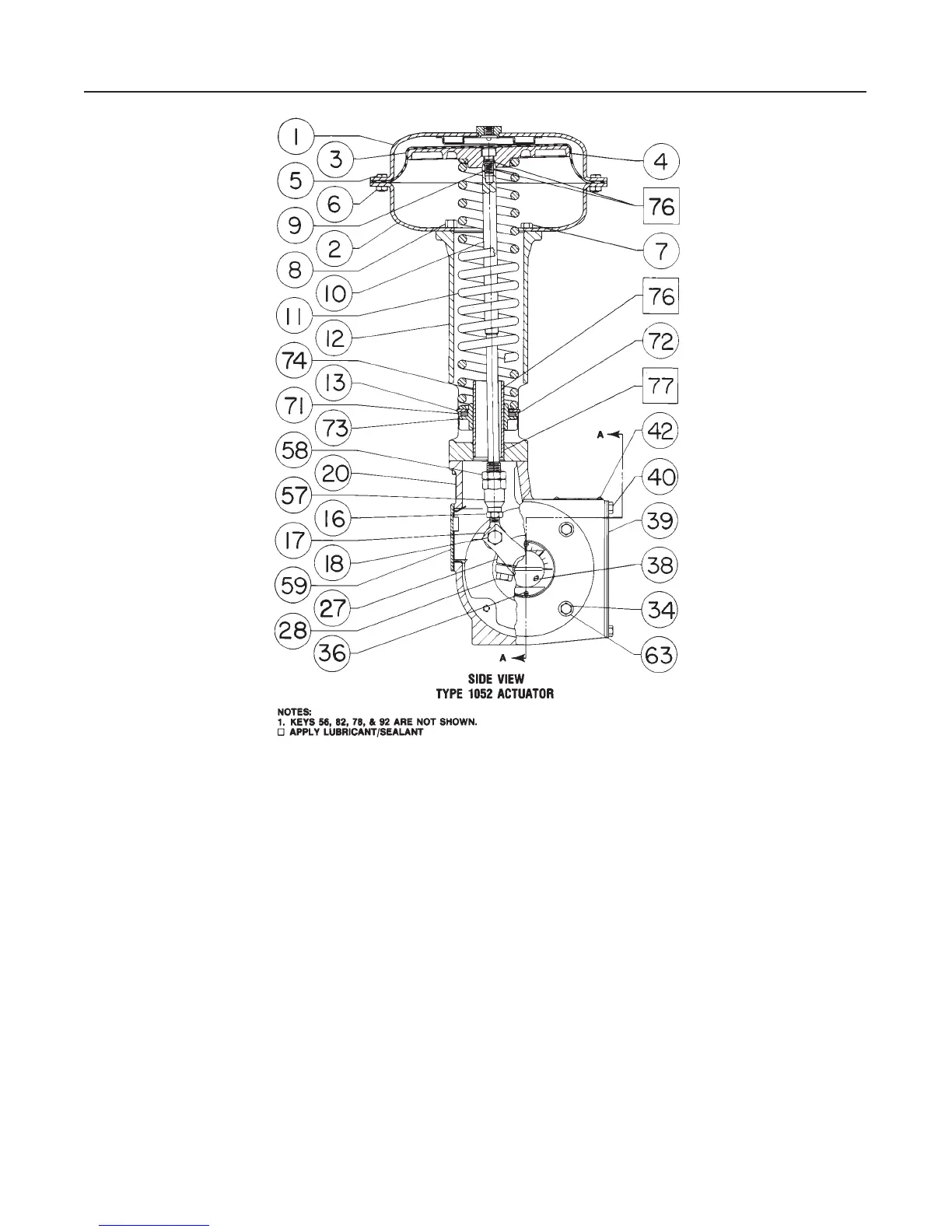

Figure 1 1. T ype 1052 Actuator with T ypical H and J Mounting Adaptations
59A2420-A
D0300–1/IL
Key Description Part Number Qty
016 NUT, HEX
STEEL ASTM A563GR B/ZN PL
SIZE 30 1A946324122 1
SIZE 40 1A353724122 1
SIZE 60 1A354024122 1
SIZE 70 1A351124122 1
017 BEARING, ROD END
STEEL/PTFE
TYPE 1052
SIZE 30 1R580299012 1
SIZE 40 1E561699012 1
SIZE 60 1R440899012 1
SIZE 70 1R587699012 1
018 SCREW, CAP, HEX HD
STEEL SAE GR5/ZN PL
SIZE 30 1A553424052 1
SIZE 40 1A361524052 1
SIZE 60 12A9519X012 1
SIZE 70 12A9458X012 1
Key Description Part Number Qty
019 NUT, HEX, JAM
STEEL ASTM A563GR B/ZN PL
SIZE 30 1A3527 24122 1
SIZE 40 1A3412 24122 1
SIZE 60 1A3433 24122 1
SIZE 70 1A5993 24122 1
020 HOUSING
CAST IRON ASTM A48-F12101(30A)
TYPE 1051
SIZE 30 48A5247X012 1
SIZE 40 48A5245X012 1
SIZE 60 48A5246X012 1
TYPE 1052
SIZES 30 & 40 48A5245X012 1
SIZES 60 & 70 48A5246X012 1
021 SCREW, CAP, HEX HD
STEEL SAE GR5/ZN PL
SIZE 30 (TYPE 1052 ONLY) 1A352624052 4
SIZE 40 1A352624052 4
SIZE 60 1A418624052 4
SIZE 70 1A418624052 4
