Fisher 1051 User Manual

Type 1051 & 1052 Styles H & J
27

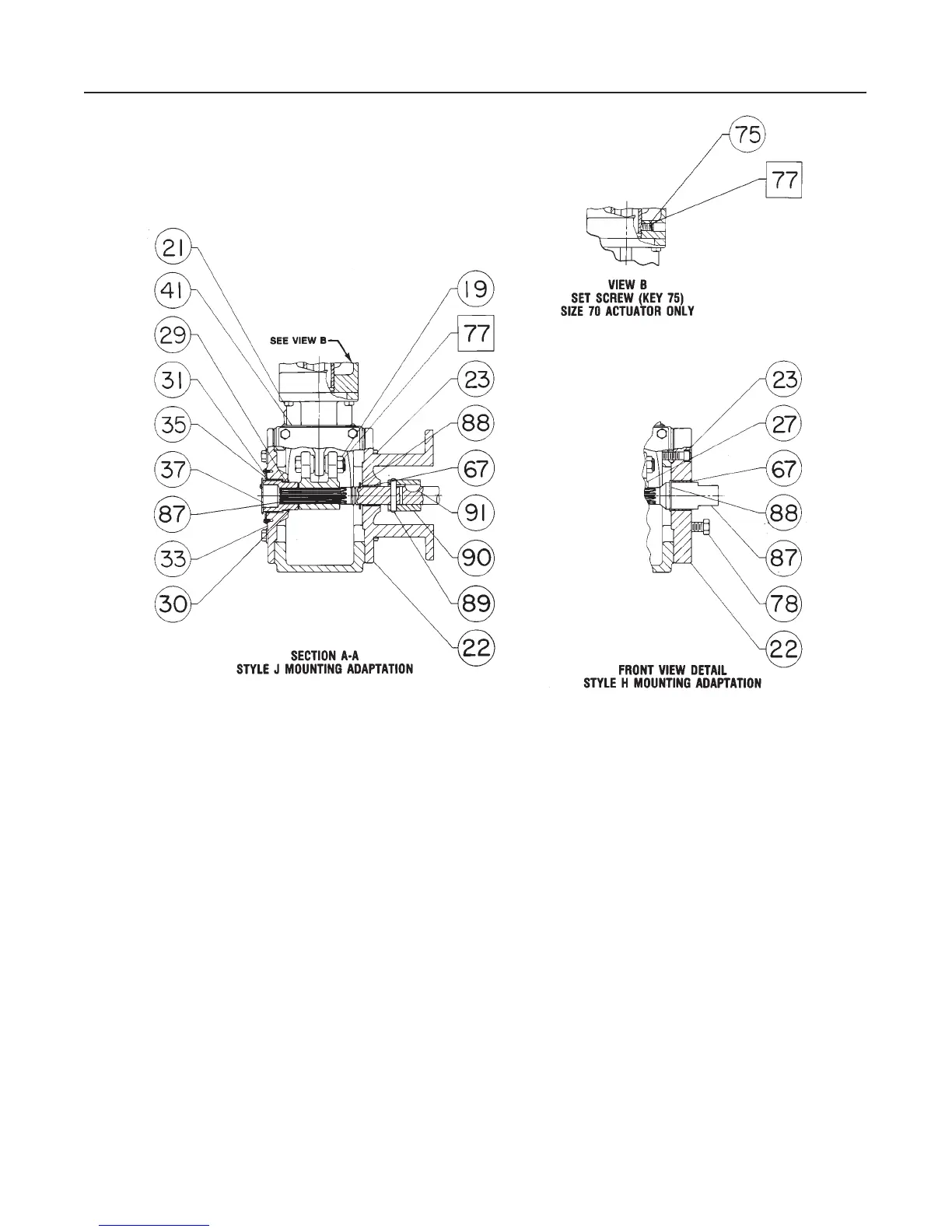

Figure 1 1. T ype 1052 Actuator with T ypical H and J Mounting Adaptations
59A2420-A/DOC
55A6970-J/DOC
59A2416-A/DOC
Key Description Part Number Qty
022 PLATE, MOUNTING, STEEL
STYLE H ONLY
SIZE 30
W/ 1-1/8 INCH (28.6 mm)
ACTUATOR OUTPUT SHAFT 39A1867X012 1
SIZE 30/40
W/ 7/8-INCH (22.2 mm)
ACTUATOR OUTPUT SHAFT 39A1866X012 1
SIZE 40
W/ 1-1/8 INCH (28.6 mm)
ACTUATOR OUTPUT SHAFT 39A1867X012 1
W/ 1-1/2 INCH (38.1 mm)
ACTUATOR OUTPUT SHAFT 39A1868X012 1
SIZE 60
W/ 1-1/8 INCH (28.6 mm)
ACTUATOR OUTPUT SHAFT 39A1869X012 1
SIZES 60 & 70
W/ 1-1/2 INCH (38.1 mm)
ACTUATOR OUTPUT SHAFT 39A1870X012 1
W/ 2-INCH (50.4 mm)
ACTUATOR OUTPUT SHAFT
Key Description Part Number Qty
022 PLATE, MOUNTING, STEEL (CONTINUED)
FOR 1-3/4 INCH (44.5 mm) KEYED
EQUIPMENT SHAFT 39A1871X012 1
FOR 2-INCH (50.4 mm) KEYED
EQUIPMENT SHAFT 39A1871X012 1
022 YOKE, MOUNTING, CAST IRON
STYLE J ONLY
SIZES 30 & 40
W/ 3/8 & 1/2-INCH (9.5 & 12.7 mm)
ACTUATOR OUTPUT SHAFT 39A18647X012 1
W/ 5/8 (15.9 mm)
ACTUATOR OUTPUT SHAFT 32A9742X012 1
SIZE 40
W/ 3/4 & 1-INCH (19.1 & 25.4 mm)
ACTUATOR OUTPUT SHAFT 32A9757X012 1
SIZE 60
W/ 3/4 & 1-INCH (19.1 & 25.4 mm)
ACTUATOR OUTPUT SHAFT 32A9778X012 1
SIZES 60 & 70
W/ 1-1/4 & 1-1/2 INCH (31.8 & 38.1 mm)
ACTUATOR OUTPUT SHAFT 32A9754X012 1

Fisher 1051 Specifications

General

Manufacturer	Fisher
Category	Controller
Ambient Temperature Range	-40 to 180°F (-40 to 82°C)
Housing Material	Aluminum
Input Signal	3-15 psi
Supply Pressure	20 psi
Output Signal	3-15 psi
