Fisher 399A - Mounting Parts; Pounds to Pounds Working Monitor

Type 399A-161-112
38

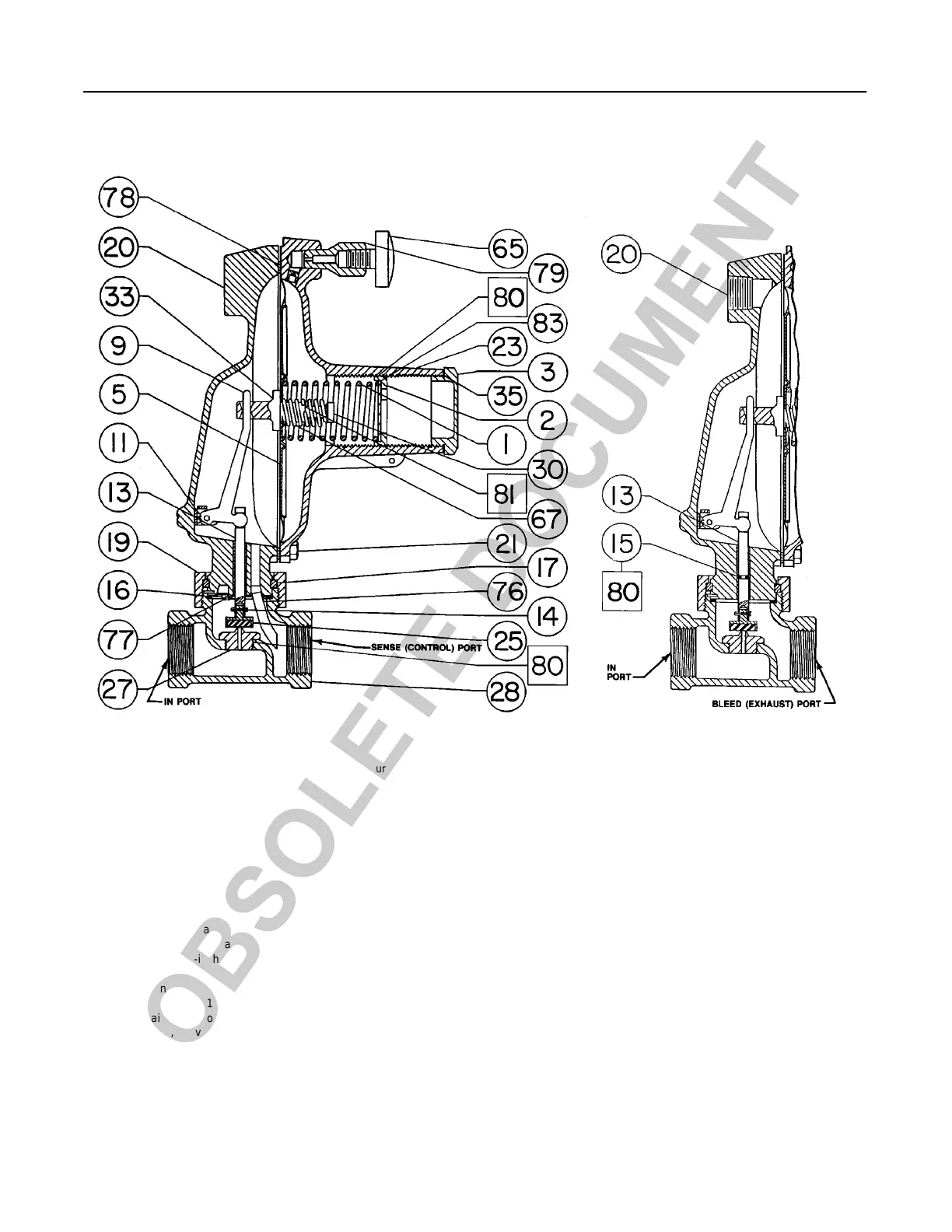

Figure 23. Type 161Y and 161YM Pilots
31B3786C
CO807/IL
31B5010A
TYPE 161Y
TYPE 161YM
Type 161Y and 161YM Pilot Mounting
Parts (figure 24)
Key Description Part Number
29 Pipe Nipple, Galvanized steel
For 2-inch main valve body 1N624026232
For 3 and 4-inch main valve body 1U264426232
For 4 x 2, 6, 6 x 4 and 8 x 4-inch
main valve body 1C210026232
For 8 x 6 and 12 x 6-inch
main valve body 19A7858X012
45 Bushing, Galvanized steel 1A3424X00A2
46 Washer, pl steel (2 req’d) 1D716228982
47 Hex Nut, pl steel (2 req’d) 1E944024112
48 UBolt, pl steel 11B3469X012
49 Mounting Bracket, steel
For 2 and 4 x 2-inch body 31B3466X012
For 3-inch body 31B3467X012
For 4, 6 x 4 and 8 x 4-inch body 31B3468X012
For 6, 8 x 6 and 12 x 6-inch body 31B4920X012
Key Description Part Number
50 Cap Screw, pl steel (2 req’d)
For 2 and 4 x 2-inch body 1A344424052
For 3-inch body 1A351224052
For 4, 6 x 4 and 8 x 4-inch body 1A381024052
For 6, 8 x 6 and 12 x 6-inch body 1A524824052
Pounds to Pounds Working Monitor Pilot
Mounting Parts (figure 25)
Key Description Part Number
29 Pipe Nipple, galvanized steel
For 1-inch main valve body 1N584226232
For 2-inch main valve body 1N624026232
For 3 or 4-inch main valve body 1U264426232
For 4 x 2, 6, 6 x 4 and 8 x 4-inch
main valve body 1C210026232
36 Instruction Tag (not shown), plastic 30B4414X012
38 Pipe Nipple, galvanized steel 1D239726232
