Fisher 399A - Pounds to Inches Working Monitor Pilot Mounting Parts

Type 399A-161-112
40
41B5009A/IL

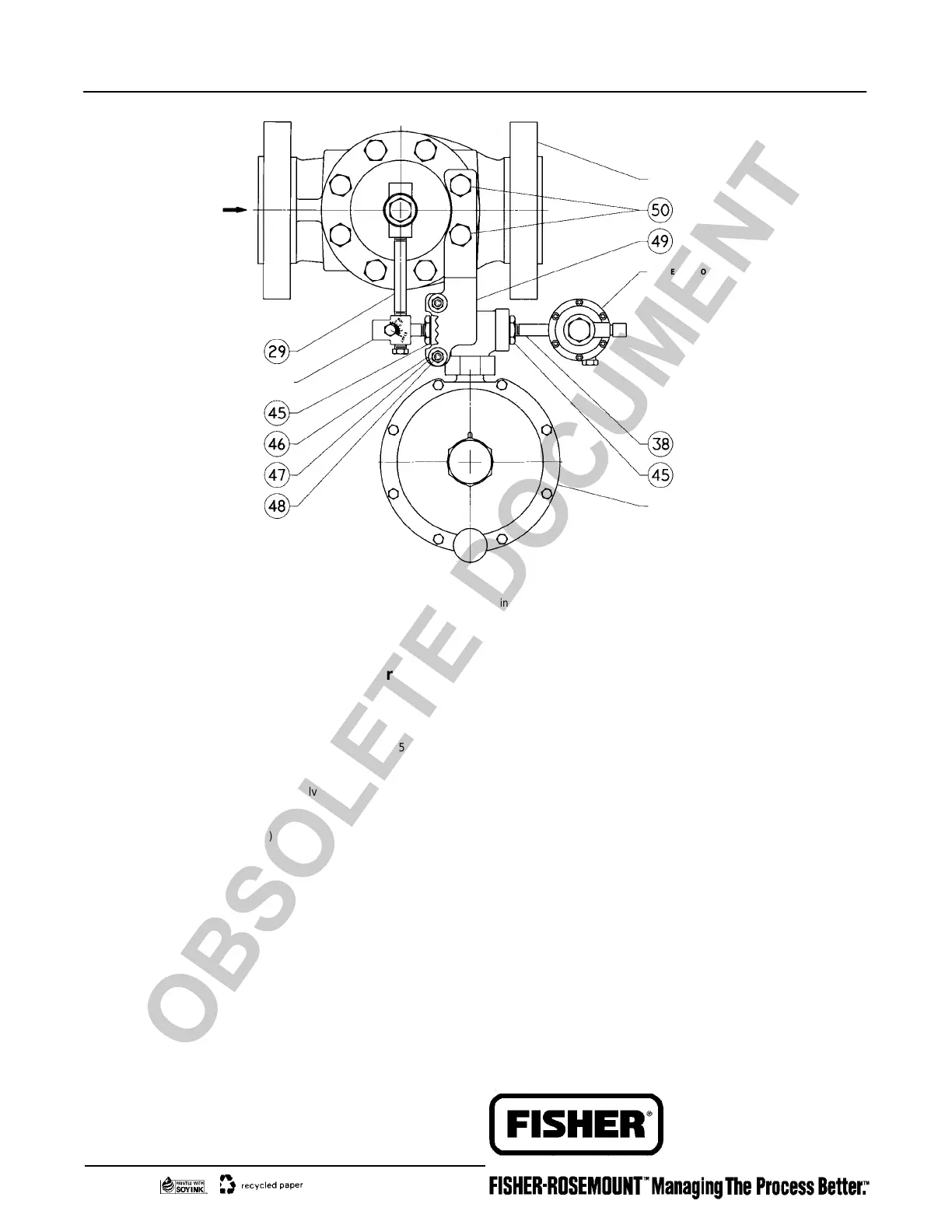

Figure 26. Pounds to Inches Working Monitor Mounting Parts
TYPE 399A
TYPE 161 OR 161YM
TYPE 161YM
TYPE 112
Pounds to Inches Working Monitor Pilot
Mounting Parts (figure 26)
Key Description Part Number
29 Pipe Nipple, galvanized steel
For 1-inch main valve body 1N584226232
For 2-inch main valve body 1N624026232
For 3 or 4-inch main valve body 1U264426232
For 4 x 2, 6, or 6 x 4-inch main valve body 1C210026232
36 Instruction Tag (not shown), plastic 30B4414X012
38 Pipe Nipple, galvanized steel 1D239726232
45 Bushing, galv steel (2 req’d) 1A3424X00A2
46 Washer, pl steel (2 req’d) 1D716228982
Key Description Part Number
47 Hex Nut, pl steel (2 req’d) 1E944024112
48 UBolt, pl steel 11B3469X012
49 Mounting Bracket, steel
For 2-inch body 31B3466X012
For 3-inch body 31B3467X012
For 4-inch body 31B3468X012
For 6-inch body 31B4920X012
50 Cap Screw, pl steel (2 req’d)
For 2-inch body 1A344424052
For 3-inch body 1A351224052
For 4-inch body 1A381024052
For 6-inch body 1A524824052
