Fisher 500 - 4-Pin Harness Wiring Diagram

Lit. No. 95362/95363, Rev. 07 20 January 1, 2020

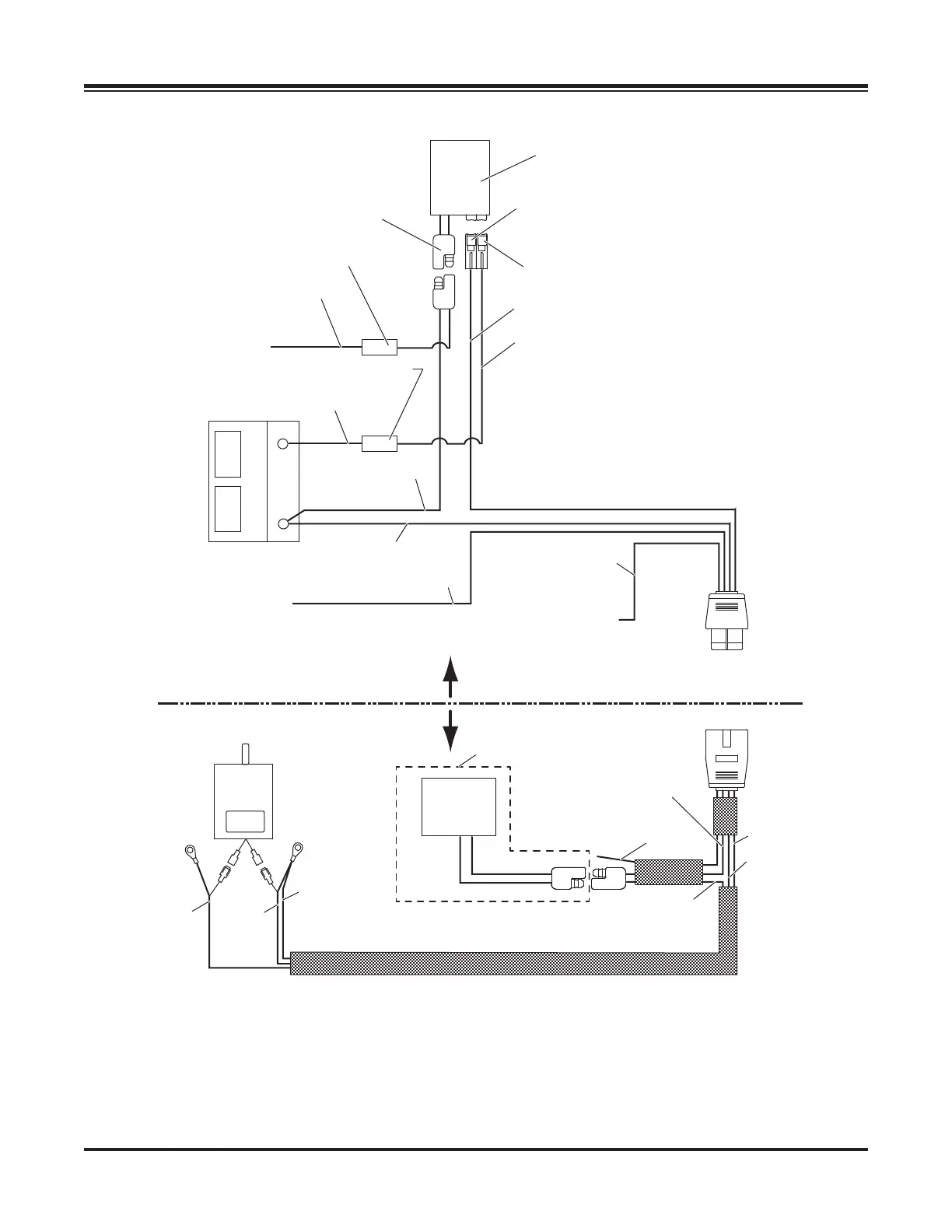

4-PIN HARNESS WIRING DIAGRAM – LOW-PROFILE SPREADERS
Cab Control
White Connector
Red Connector
8 ga Red
8 ga Red
14 ga Red
10 ga Red
14 ga Black
8 ga Black
14 ga Orange
Battery
+
_
Motor
CHMSL
Assembly
14 ga Orange
8 ga
Black
8 ga Red
8 ga Black
8 ga Red
14 ga Black
Motor Specification:
12V DC, 0.56 kW Motor
14 ga
Black
(to CHMSL)
Split Loom Tubing
14 ga Yellow
Accessory Circuit
Vehicle Wiring Harness
Wiring Harness
Spreader
Accessory Circuit
(12A max.)
14 ga Yellow
To Vehicle CHMSL
Signal (Model 2000 only)
30A Fuse
Two-Way Molded
Connector
6A Fuse
To Vehicle Ignition
(accessory wire or
fuse box)
Not
Used
Model 2000 only
Not
Used
