Fisher EZR User Manual

Type EZR
3
2
U
N
R
S
T
A
R
T
4
6
8

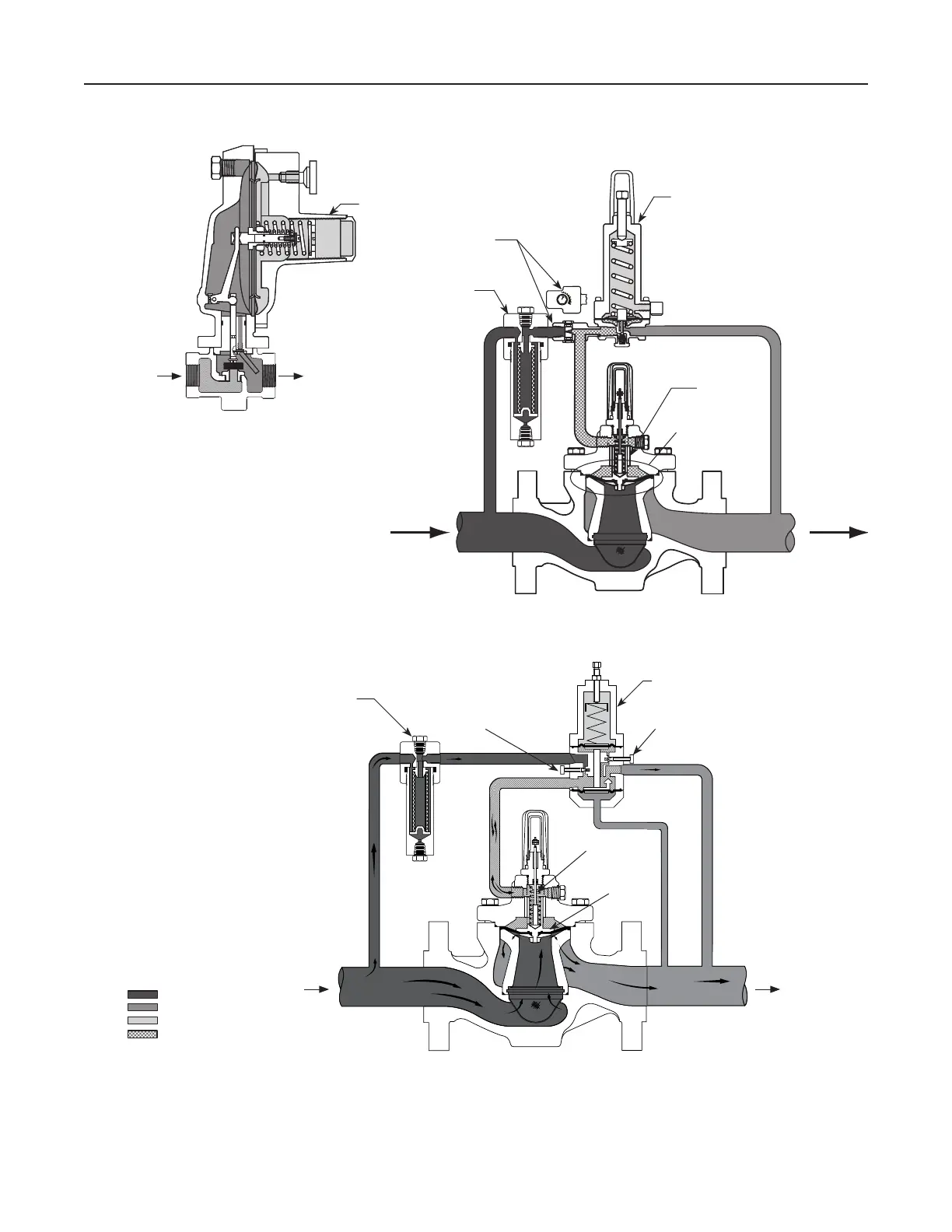

Figure 2. Type EZR Operational Schematic
E0790

TYPE PRx PILOT

RESTRIcTOR

W7438
B2625_2
InLET PRESSURE
OUTLET PRESSURE


161AY SERIES PILOT
TYPE 112 RESTRIcTOR

SUPPLY FILTER





PORT S

PORT A
PORT L
2
U
N
R
S
T
A
R
T
4
6
8






Fisher EZR Specifications

General

End Connection Style	NPT
Maximum Inlet Pressure	400 psig
Temperature Capabilities	-20°F to 180°F (-29°C to 82°C)
Certifications	PED
Type	Regulator
Output Signal	Pneumatic
Supply Pressure	Not applicable (self-operated)
Ambient Temperature Range	-20°F to 180°F (-29°C to 82°C)
Mounting	In-Line
Outlet Pressure Ranges	3 to 30 psig
