Instruction Manual
D103198X012
i2P-100 Transducer
July 2014
23

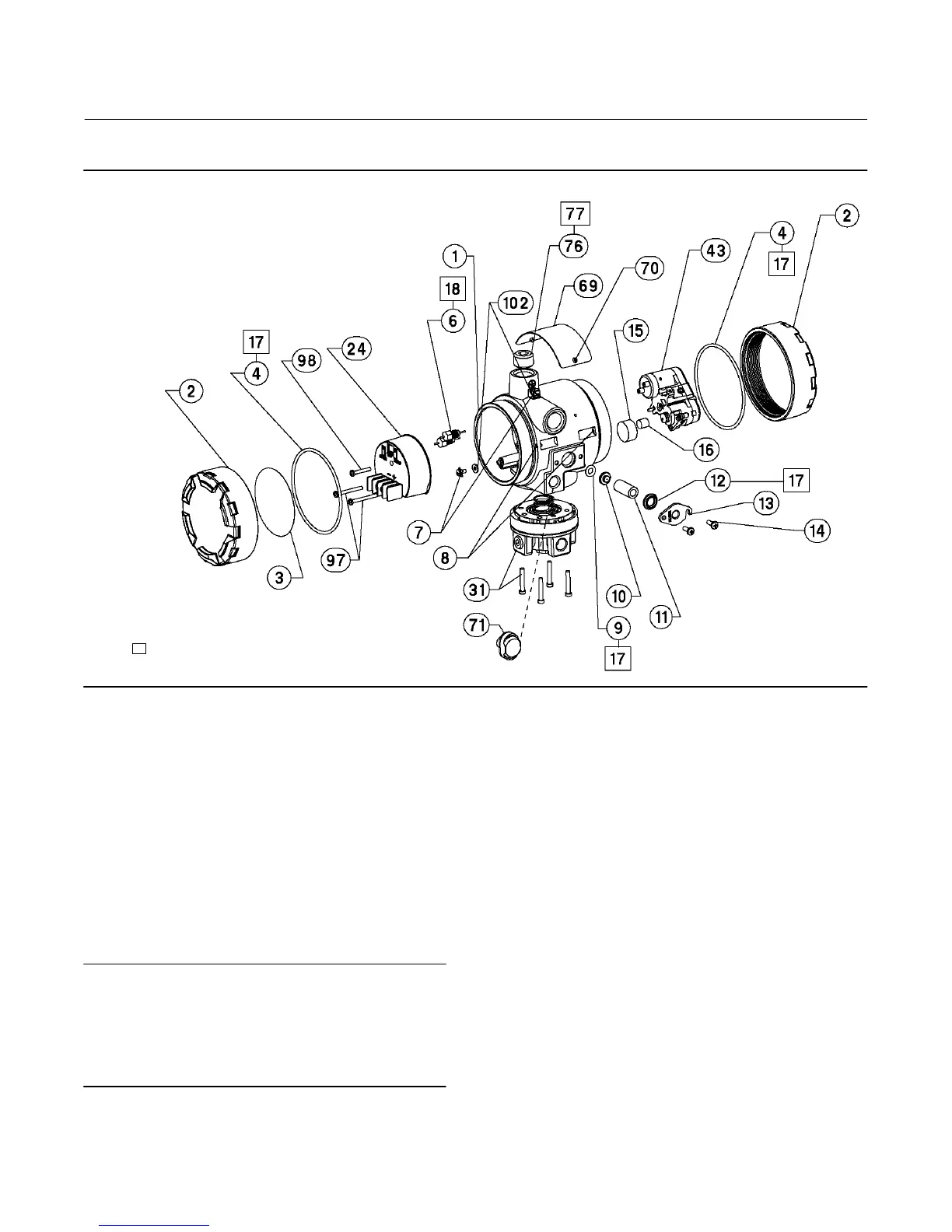

Figure 13. Fisher i2P‐100 Transducer Assembly
NOTE:
APPLY LUBRICANT/SEALANT/ADHESIVE
30C2230‐C
Parts Kits
Description Part Number
Repair Kit for i2P‐100 electro‐pneumatic transducer
Contains O‐rings (key 4, 9, 12, and 55) and
Filter/Restrictor assembly (key 10 & 11) R2P100X0032
Parts List (see figure 13)
Note
Part numbers are shown for recommended spares only. Part numbers for
recommended spares that are included in the i2P‐100 Repair Kit are not
shown. The filter (key 11) is available as a stand‐a‐lone recommended
spare as well as in the Repair Kit.
For part numbers not shown, contact your Emerson Process
Management sales office.
Housing
Key Description Part Number
1 Housing, Aluminum
2 Cover (2 req'd)
3 Configuration Label
4* O‐Ring
(1)
(2 req'd)
6 Feed Thru (2 req'd)
7 Wire Retainer (2 req'd)
8 Set Screw (2 req'd)
9* O‐Ring
(1)
10 Restrictor, Primary
(1)
11* Filter
(1)
10C2246X012
12* O‐Ring
(1)
13 Filter Cap
14 Machine Screw (2 req'd)
15 Flame Arrestor
16 Flame Arrestor
17 Lubricant, silicone sealant (not furnished with transducer)
18 Thread locking adhesive, high strength (not furnished
with transducer)
55 O‐Ring
(1)
69 Nameplate, aluminum
70 Screw (2 req'd)
71 Vent Assembly
76 Pipe Plug
102 Washer
*Recommended spare parts
1. Available in the Repair Kit
To Next Page
