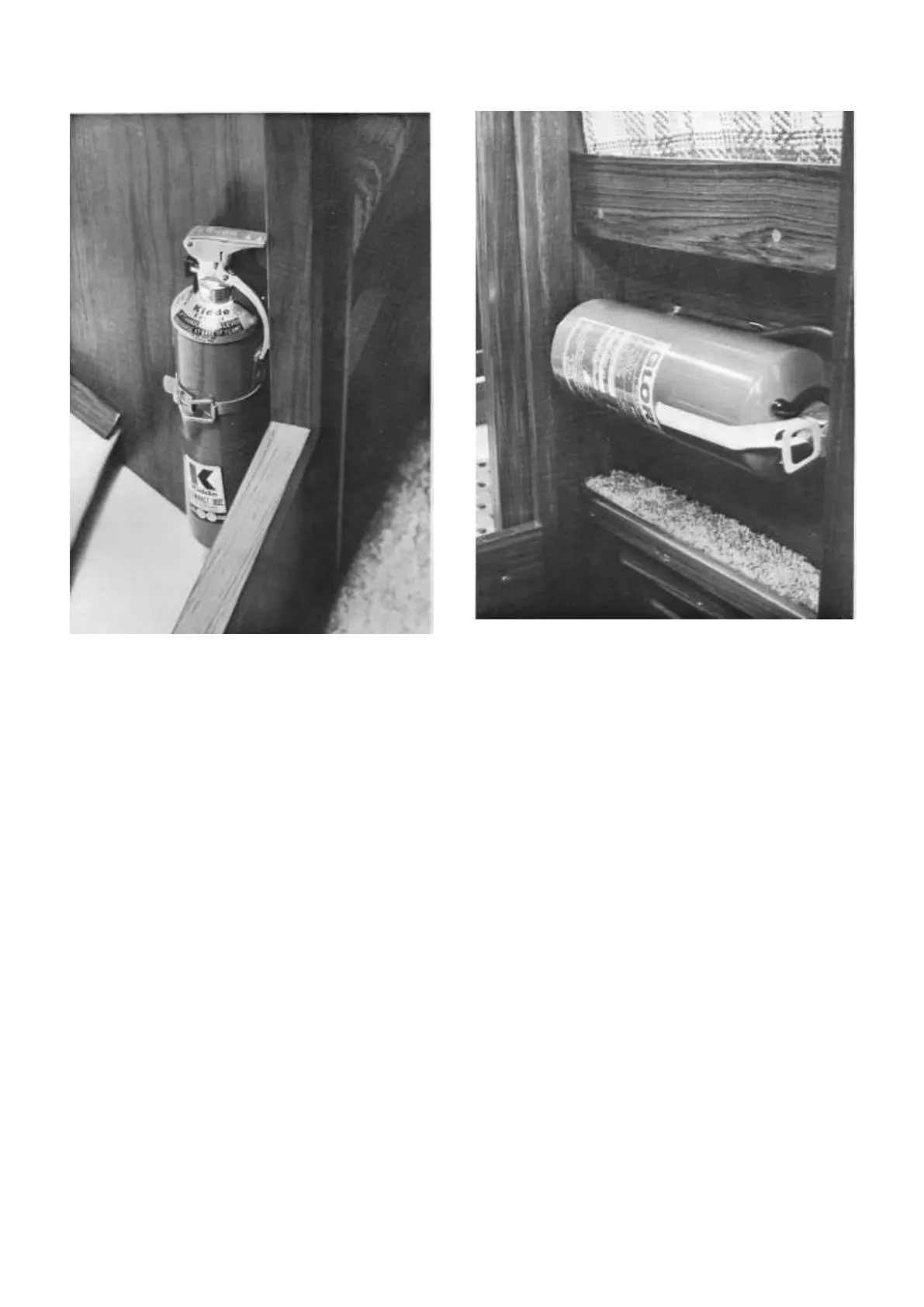

Plate 16
Location of Fire Extinguisher Aft — Version B
In Version B the aft extinguisher is fitted on the
chart—table sidewall in the dog-house, just adjacent
to the ladder leading down from the cockpit (plate
16), while the secondary extinguisher is fitted on the
side-panel of the forward, athwartship settee
of the dinette, facing port (plate l7).
The extinguishers are of the powder—type, the one
in the dog-house of 1,0 kg. capacity and the for-
ward one of 2,0 kg. capacity. The operating
instructions printed on the extinguisher itself should
be read carefully.
Plate 17
Location of Fire Extinguisher Forward — Version B
