9) Fire extinguishers
Two manually operated fire extinguishers are fitted
in both versions, however, located in slightly
different positions.
In Version A, one extinguisher is fitted in the oilskin
locker to starboard in the dog-house, and one
extinguisher is fitted on the bulkhead in the big
hanging locker adjacent to the toilet room (plate 14
and 15).

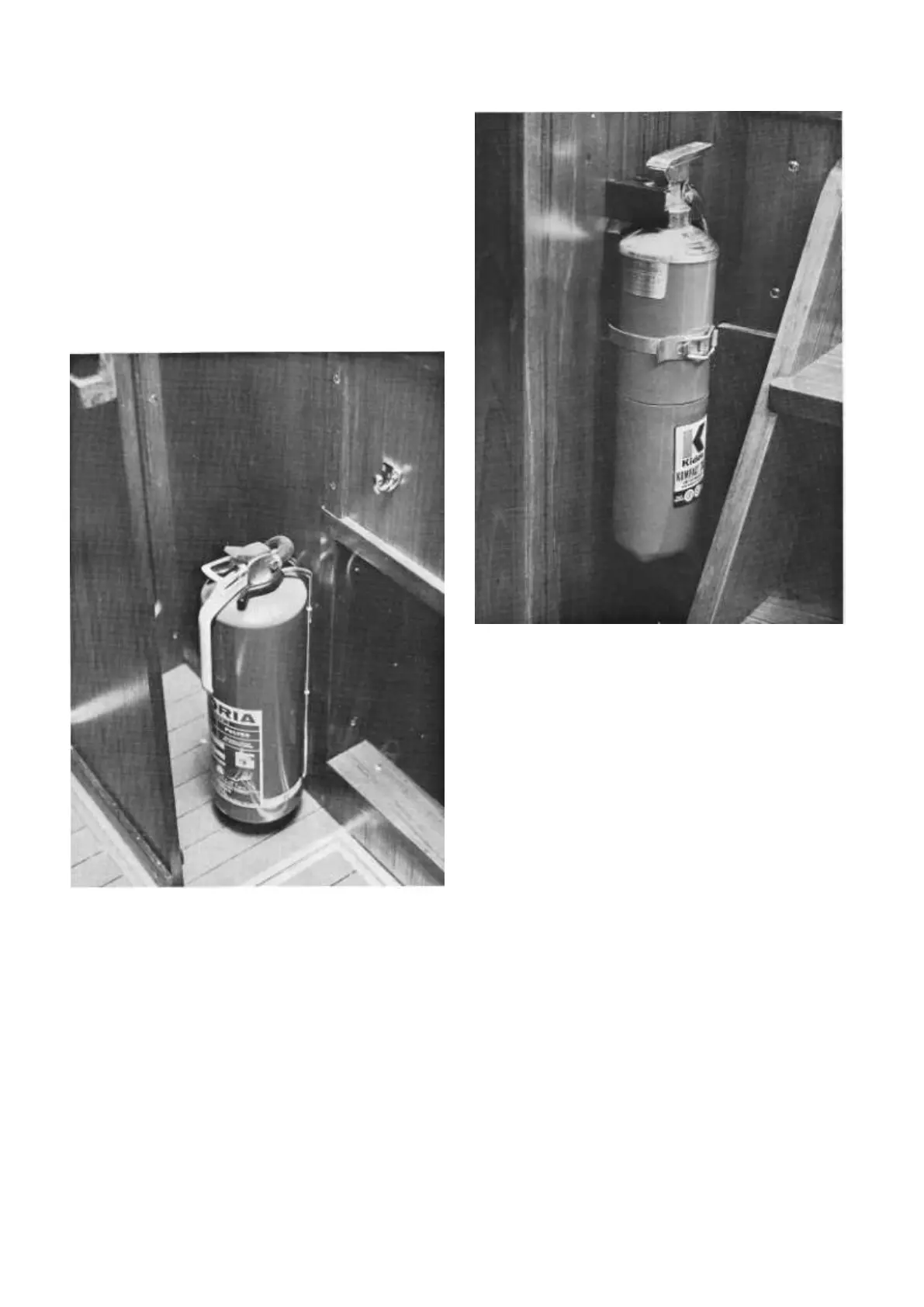

Plate 14
Location of Fire Extinguisher Aft — Version A
Plate 15
Location of Fire Extinguisher Forward — Version A
