4) Fuse panel
The fuse panel is fitted in the same locker as the
main switches just above the switch-box. On some
of the boats you will find a small. black box fitted on
top or on the outer side of the switch-box with the
main-switches., When fitted, this black box
contains a main fuse for the ship's service circuit.
This main fuse is. however, a superfluous gadget, as
each and every one of the individual circuits of the
ship's service system is fitted with its own circuit
breaker.
The fuse panel as fitted in Version A is shown on
plate 2, and the panel in Version B is shown on plate
3. It appears that the fuse panel in Version A has
three switches fitted as well, namely, the main
switch for the refrigerator, the switch for the
navigation lights and the separate switch for the top-
light. All fuses and switches are plainly labelled in
English. A separate lamp is fitted in the locker. just
above the panel, inside the door. The lamp is lit by
sliding the glass sideways.

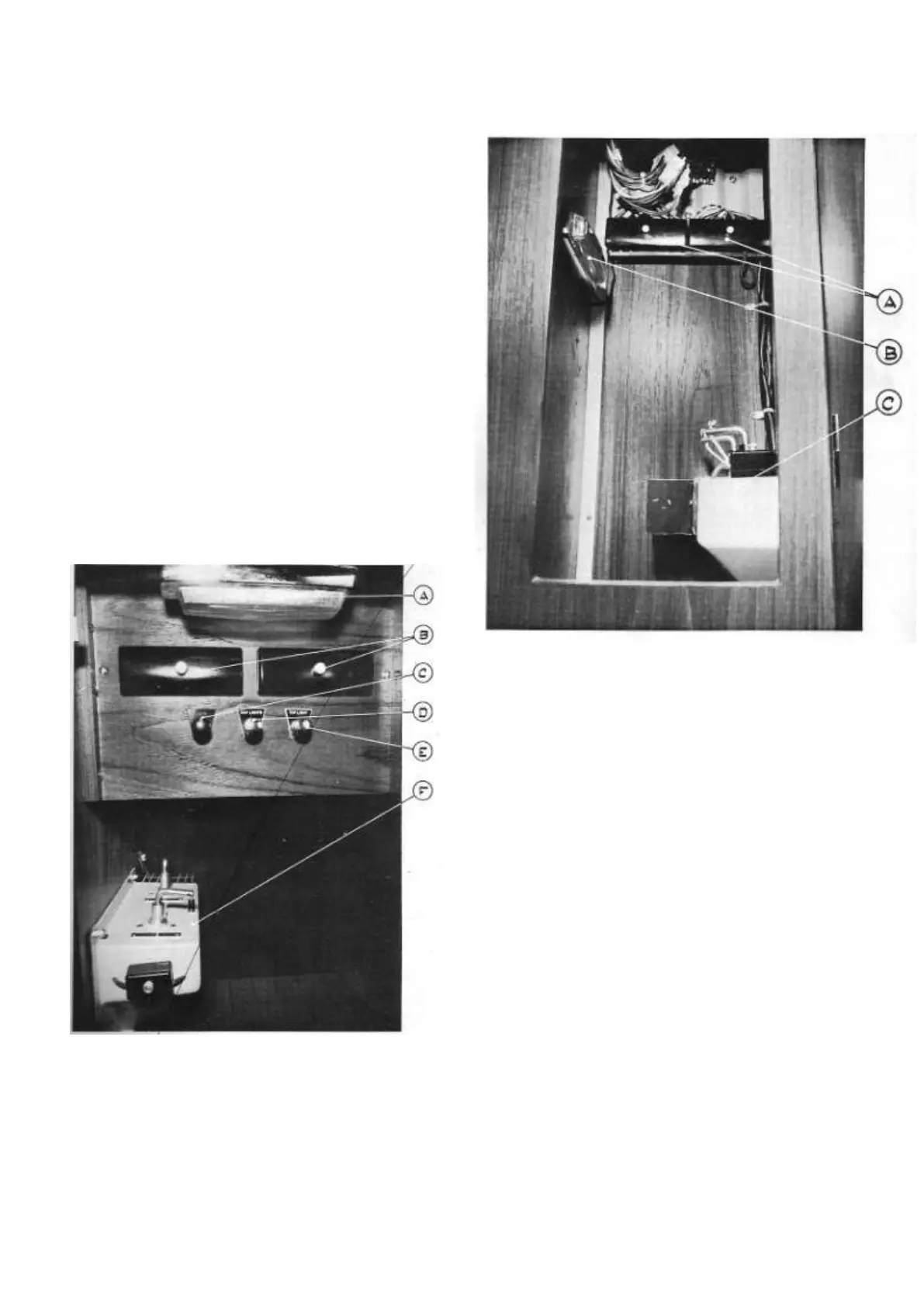

Plate 2
Fuse Panel, Version A
A) Fuse, Locker Light
B) First Boxes t
C) Switch — Refrigerator
D) Switch — Navigation Lights
E) Switch — Top Light (Steaming Light)
F) Main Switch Box
Plate 3
Fuse Panel — Version B
A) Fuse Boxes
B) Fuse Locker Light
C) Main Switch Box
