Press here
Filament Intake

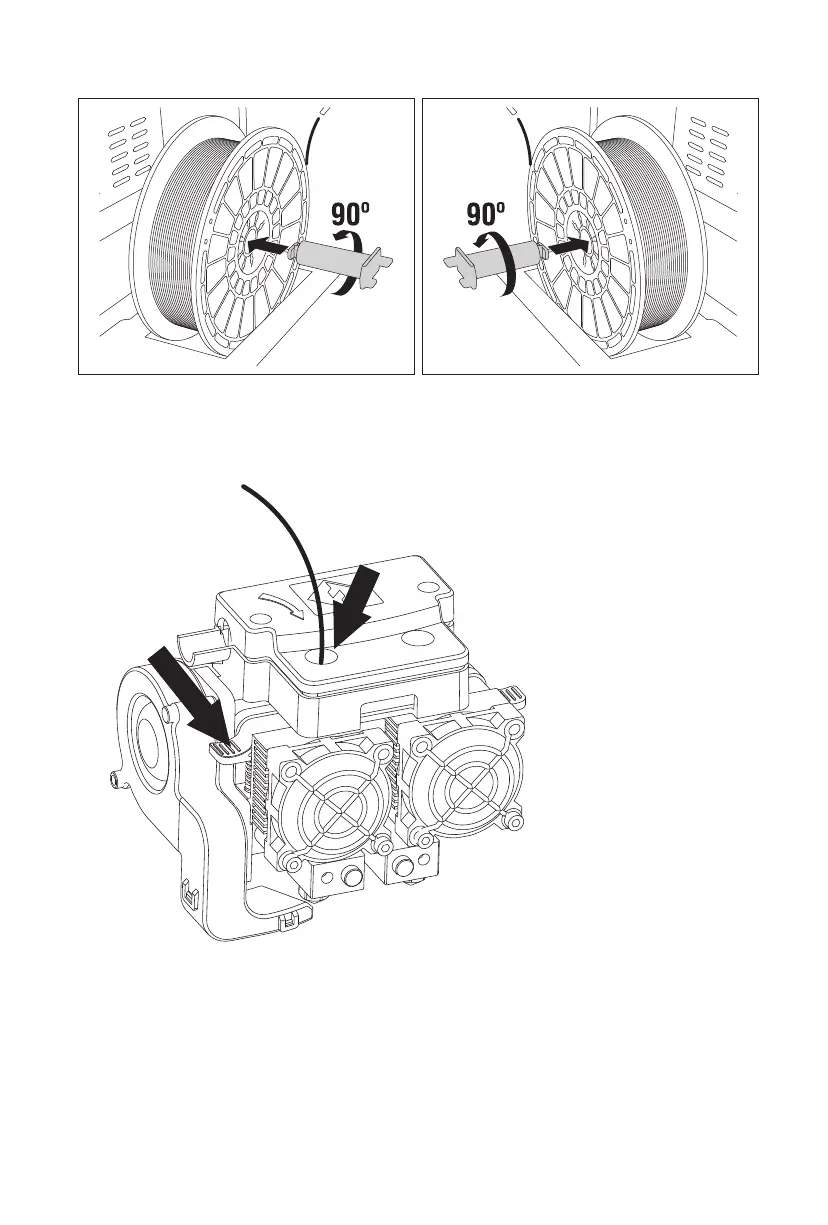

5. Press the left spring presser, put filament vertically into the left filament intake to the bottom.
4. Take out filament spool holder. As is shown above, put spool holder through round hole, and
insert it into fixed seat. Rotate the spool holder 90° to fix it.
Left side Right side
Attention: Lock filament on the left side, rotate spool holder anticlockwise 90°
Lock filament on the right side, rotate spool holder clockwise 90°
10
