Flavel Caress - Page 12

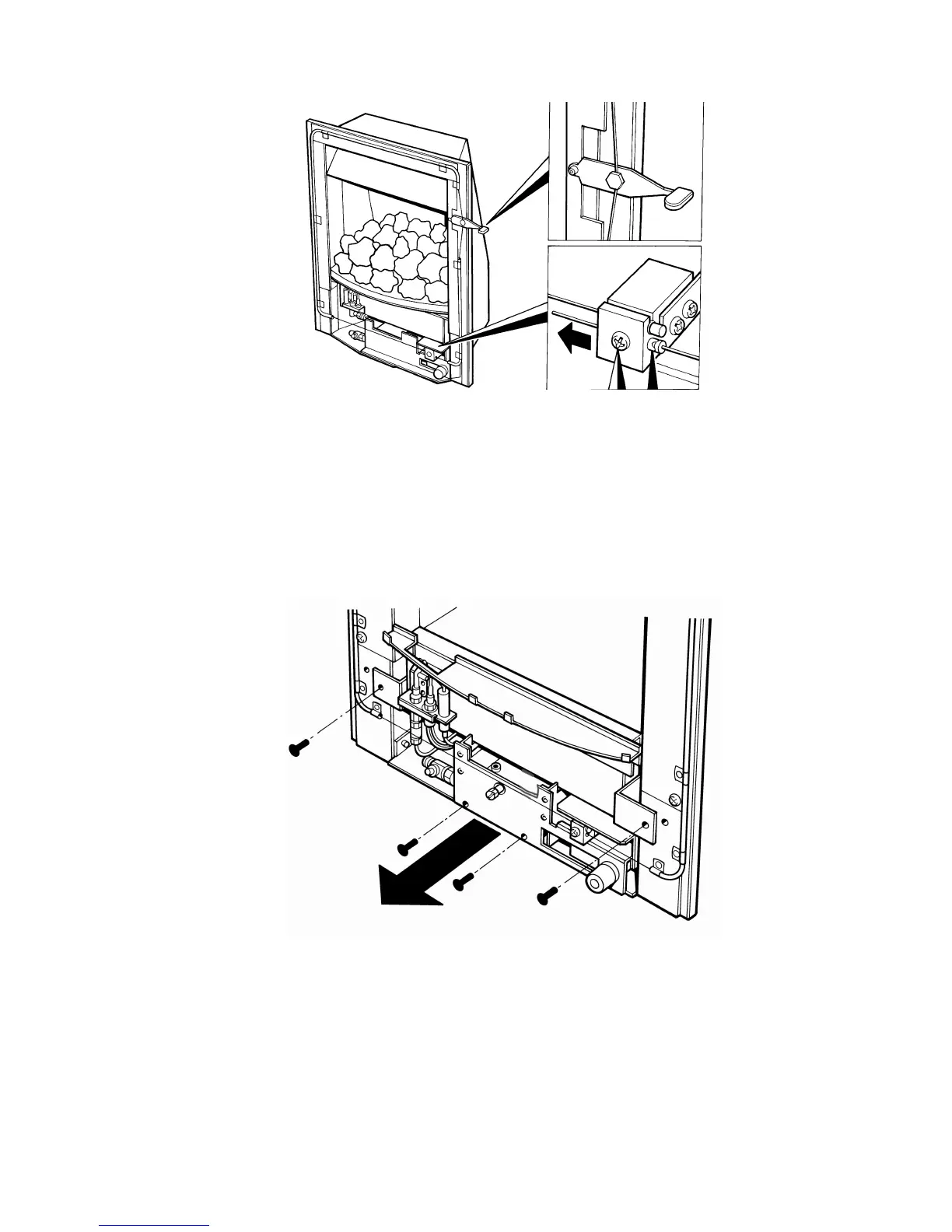

Fig. 4
d) Unscrew the burner assembly fixing screws at either side of the firebox,
and the two fixing screws at the base of the fire (See fig. 5 below).
Carefully pull the base of the burner forwards from the fuel-bed
support panel. The burner can now be removed from the appliance.
Fig. 5
12
