b) Fit the fascia to the firebox by hooking the mounting brackets into the
slots on the firebox as indicated in Fig. 20
Fig. 20
3.3 FITTING THE FRET
a) Remove the fret & ashpan cover from the packaging.
b) Place fret up to the front radiused section of the fuelbed, taking care
not to move coal positions.
c) Place ashpan cover under fret assembly and centralise.
24

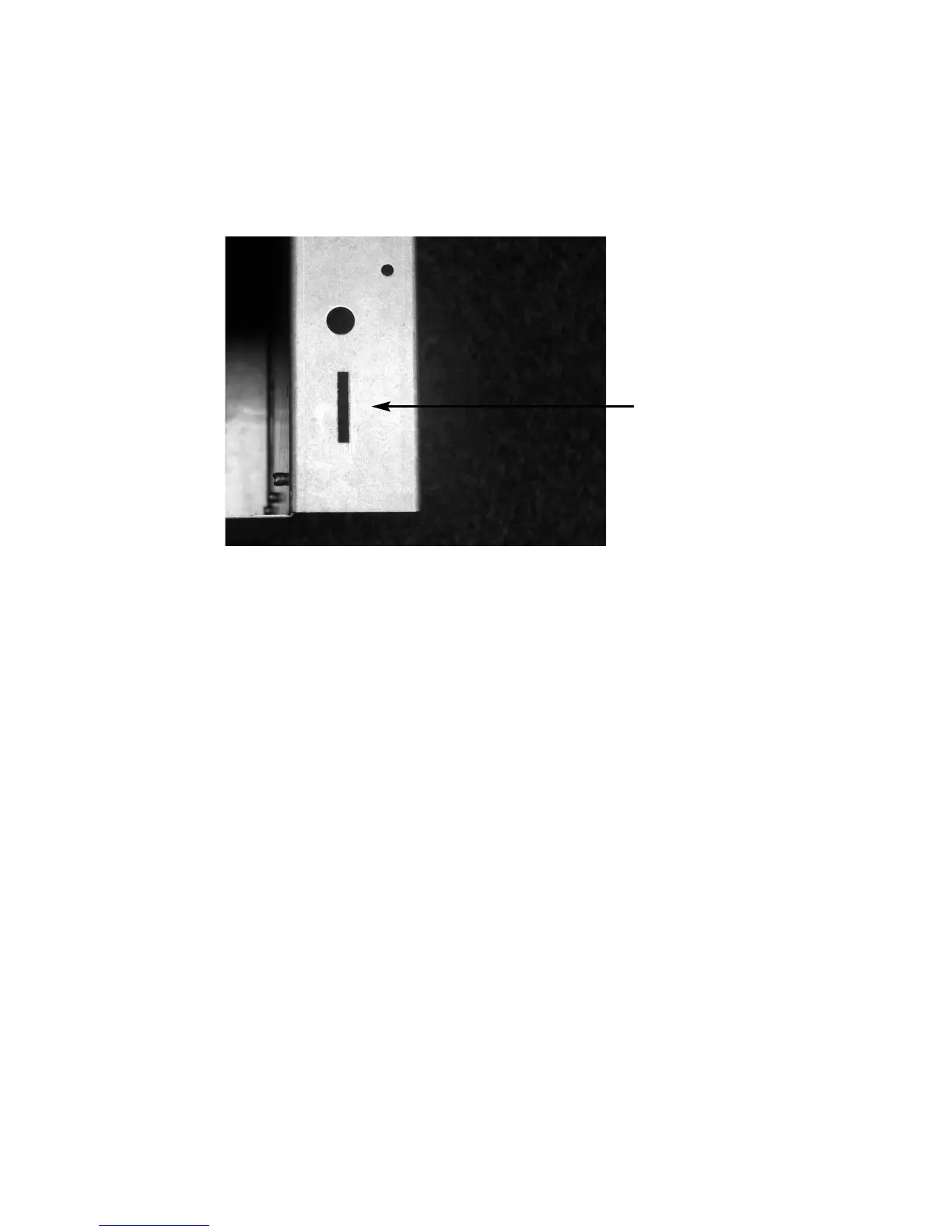

Image shows
bottom right hand
slot, further slots
are position on
mounting flange at
opposite side and
top L/H / R/H
mounting flanges
