Table A - Installation Depth Requirements for a Flavel Caress Slimline SC
being installed into a brick built chimney, requiring 12.0 litres of debris
collection volume (fig. 2)
330 (minimum opening width) 183
340 178
350 173
360 170
370 167
380 163
390 158
400 155
410 151
420 146
430 (maximum opening width) 143
For example, if the appliance was to be fitted into a 400mm wide opening, the
depth required would be 189mm. See fig. 2 below for explanatory diagram.

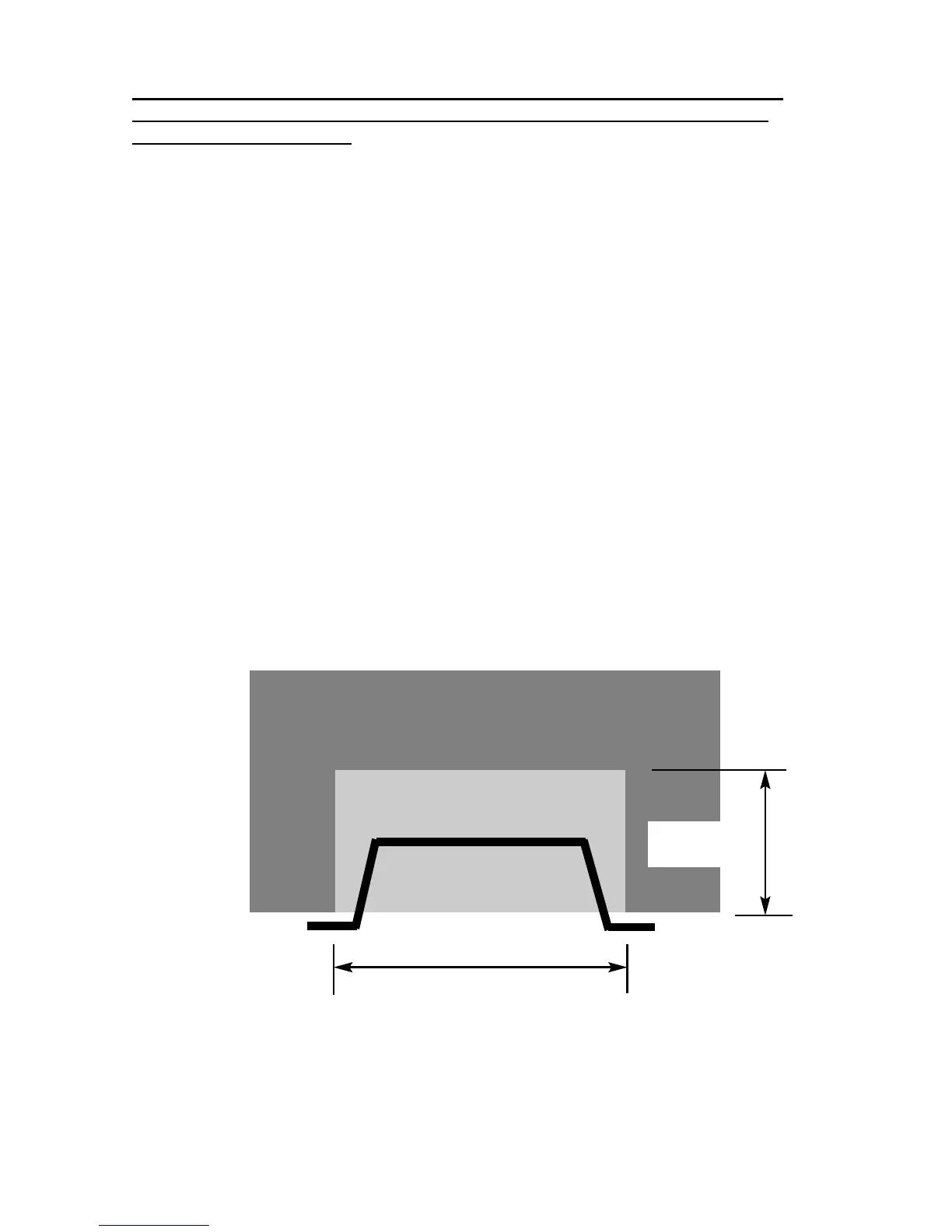

Fig. 2
7
Opening Width ( e.g. 400mm)
Depth Required
(e.g. 155mm)
