Fig. 6
2.5 INSTALLATION OF THE GAS SUPPLY
a) An 8mm restrictor elbow is supplied fitted to the product for the
connection of the gas supply. This elbow is situated on the right hand
side of the product when viewed from the front. It is therefore suitable
for rear or right hand side gas supply. See Fig. 7 below.
Note : Before breaking into the gas supply a pressure drop test should be
carried out to establish that the existing pipework is sound.
10

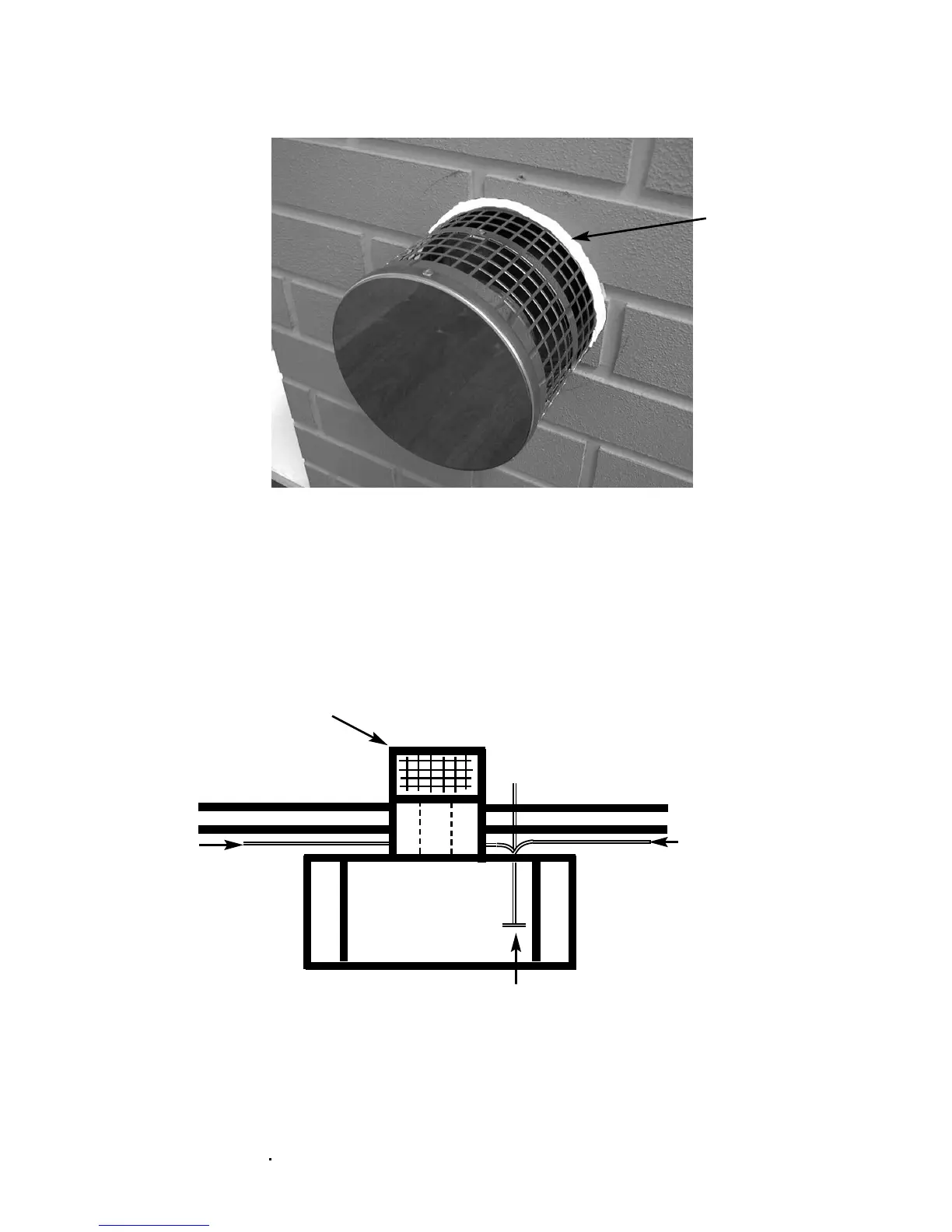

Rear gas
supply route
P
osition of
Mortar or Fire
Cement Seal
a
round Flue
terminal
Right hand
gas supply
route
Left hand
gas supply
route
Pressure Test Point and
Restrictor elbow
connection point located
at the bottom R/H side
of the appliance
Flue terminal
Combustion
Chamber
viewed from top
Fig. 7
