SECTION 3
ASSEMBLING FUEL BED AND COMMISSIONING

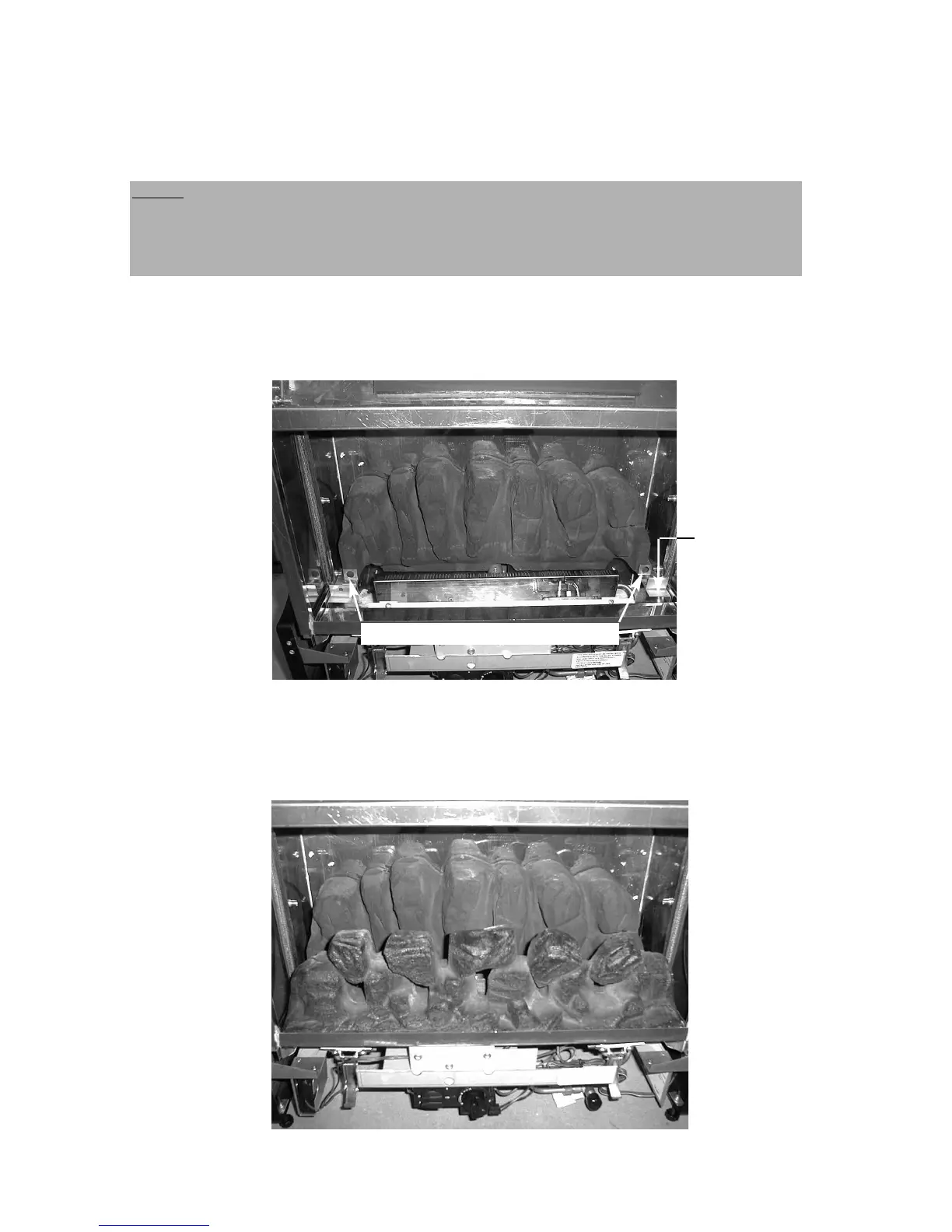

3.1 FITTING THE FUELBED
a) Place the fuel-bed rear section centrally in the combustion chamber as
shown below in Fig. 12
Fig. 12
b) Fit the front ceramic coal form in front of the burner, as shown below in
Fig 13. Ensure that the front ceramic coal form is correctly located
behind the retaining brackets at the L/H & R/H ends.
Fig. 13
14
Retaining brackets for rear coal form
Retaining brackets
for front coal form
NOTE : The position of the fuel-bed components are critical to the
performance of the product. Therefore please ensure that the fuel-bed
components are positioned as described in the following section prior to
requesting a service call due to soot build up, poor flame pattern etc.
