Fleck 2900S - Lower Designer Powerhead Assembly

Page 18

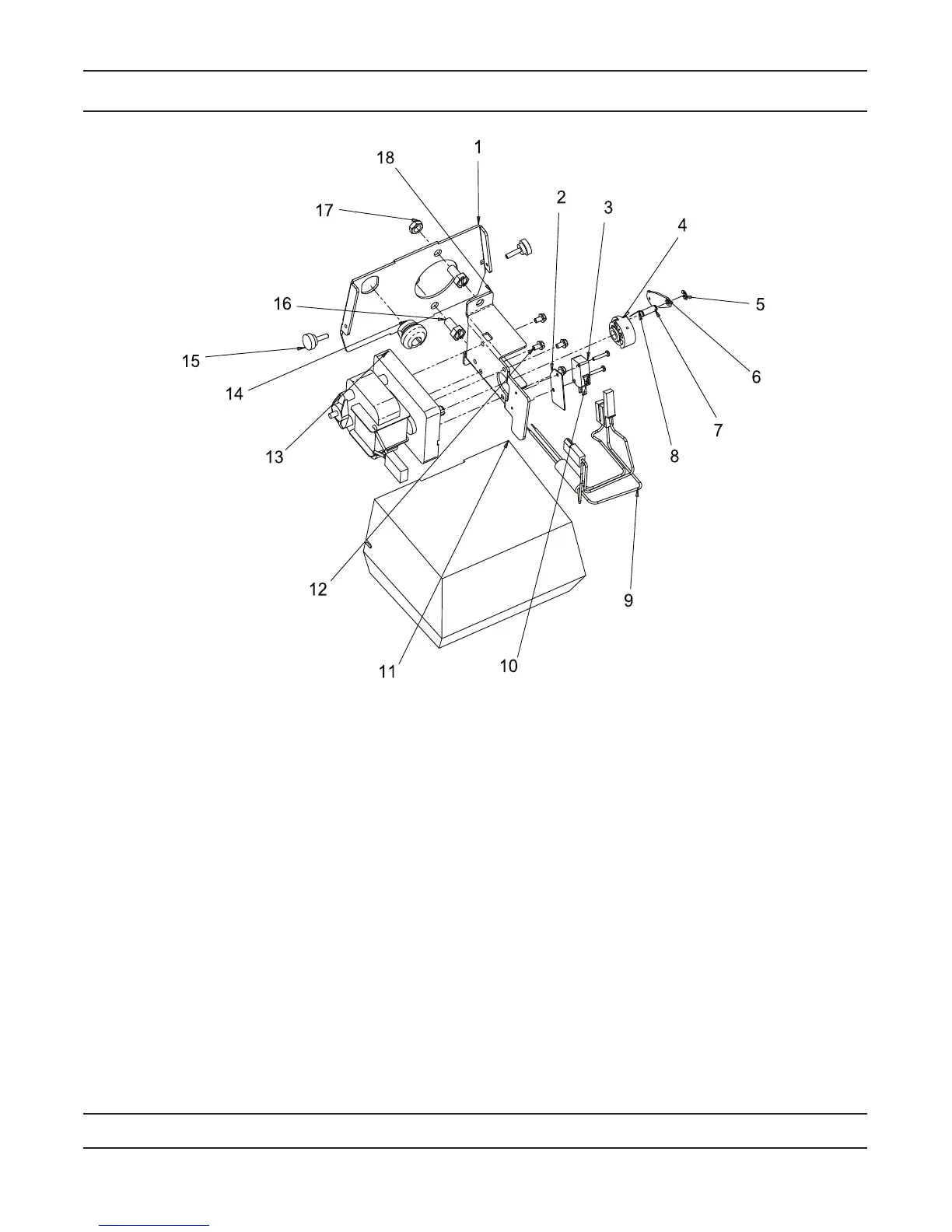

Lower Designer Powerhead Assembly
For Service Assembly Numbers, See the Back of this Manual
Item No. Quantity Part No. Description
1 .................... 1 ..................... 14770 .......................................Backplate, Lower 2900
2 .................... 1 ..................... 10302 .......................................Insulator, Limit Switch
3 .................... 1 ..................... 10218 .......................................Switch, Micro
4 .................... 1 ..................... 14775 .......................................Cam, Drive, 2900
5 .................... 1 ..................... 10250 .......................................Ring, Retaining
6 .................... 1 ..................... 14759 .......................................Link, Piston Rod
7 .................... 1 ..................... 14784 .......................................Bearing, Connecting Rod
8 .................... 1 ..................... 41022 .......................................Pin, Roll, 2900 Lower
9 .................... 1 ..................... 40402 .......................................Harness, Lead, Sys #4, Designer
10 .................. 2 ..................... 19849 .......................................Screw, Pan Hd, 4-40 X 5/8
11 ................... 1 ..................... 14800-02 ..................................Cover, Dust, Lower, 2900, Black
12 .................. 4 ..................... 10872 .......................................Screw, Hex Wsh, 8-32 X 17/64
13 .................. 1 ..................... 40387 .......................................Motor, Drive, 115V, 60Hz, SP FAM 2
...................... 1 ..................... 42580 .......................................Motor, Drive, 24VAC/DC, 50/60 Hz
...................... 1 ..................... 40389 .......................................Motor, Drive, 220V, 50/60 Hz, Sp Fam 2
14 .................. 1 ..................... 14924 .......................................Strain Relief Heyco #1247
15 .................. 2 ..................... 19367 .......................................Screw, Designer Cover, Thumb 8-32 Black UV Stable
16 .................. 2 ..................... 11224 .......................................Screw Hex Hd, 5/16 - 18 x 5/8 MS 410 Stainless Steel
17 .................. 2 ..................... 16346 .......................................Nut, Hex, Jam, 5/16-18
18 .................. 1 ..................... 14769 .......................................Bracket, Motor, 2900
