Fleck 2900S - 1600 Service Valve Operator (New Style)

Page 36

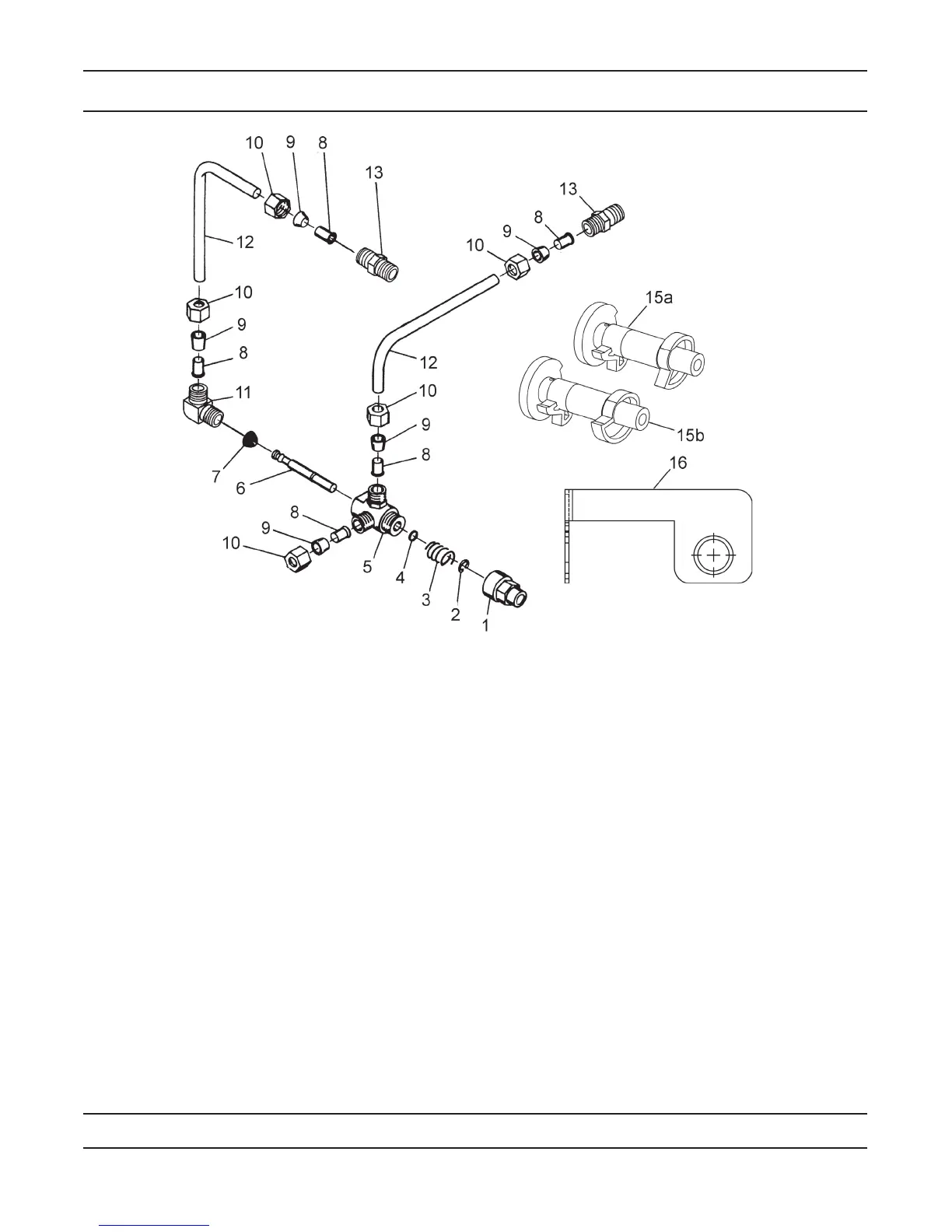

1600 Service Valve Operator (New Style)
Item No. Quantity Part No. Description
1 ....................1 ......................11749 .......................... Guide, Brine Valve Stem
2 ....................1 ......................10250 .......................... Ring, Retaining
3 ....................1 ......................10249 .......................... Spring, Brine Valve
4 ....................1 ......................12550 .......................... Quad Ring, -009
5 ....................2 ......................10785 .......................... SVO Body Assy Brass Valves
6 ....................1 ......................12552 .......................... Brine Valve Stem, 1600
7 ....................1 ......................12626 .......................... Seat, Brine Valve
8 ....................5 ......................10332 .......................... Fitting, Insert, 3/8
9 ....................5 ......................10330 .......................... Fitting, Sleeve, 3/8” Celcon
10 ..................5 ......................10329 .......................... Fitting, Tube, 3/8 Nut, Brass
11 ..................1 ......................10328 ..........................Fitting, Elbow, 90 Deg 1/4 NPT x 3/8 Tube
12 ..................2 ......................12897 .......................... Tube, Fitting, 3/8 x 9 3/4
13 ..................1 ......................16730 .......................... Fitting, Male, 1/4 x 1
14 ..................2 ......................15415 .......................... Fitting, Insert, 1/2” Tube
15a ................1 ......................12472 .......................... Cam Assembly, Tri-Stack, After RR
15b ................1 ......................15770 .......................... Cam Assembly, Special Tri-Stack After Brine Fill
16 ..................1 ......................12114 .......................... Bracket, Motor Outboard, Coated
17 ..................1 ......................60150-01 .................... Service Valve Operator Assembly, 1600, New Style, Item No’s 1-11
For Service Assembly Numbers, See the Back of this Manual
60150REVA
